Event Model

All data processing in Cribl LogStream is based on discrete data entities commonly known as events. An event is defined as a collection of key-value pairs (fields). Some Sources deliver events directly, while others might deliver bytestreams that need to be broken up by Event Breakers. Events travel from a Source through Pipelines' Functions, and on to Destinations.

The internal representation of a Cribl LogStream event is as follows:

{
  "_raw": "<body of non-JSON parse-able event>",
  "_time": "<timestamp in UNIX epoch format>",
  "__inputId": "<Id/Name of Source that delivered the event>",
  "__other1": "<Internal field1>",
  "__other2": "<Internal field2>",
  "__otherN": "<Internal fieldN>",
  "key1": "<value1>",
  "key2": "<value2>",
  "keyN": "<valueN>",
  "...": "..."
}

Some notes about these representative fields:

  • Fields that start with a double-underscore are known as internal fields, and each Source can add one or many to each event. For example, Syslog adds both a __inputId and a __srcIpPort field. Internal fields are used only within Cribl LogStream, and are not passed down to Destinations.

  • Upon arrival from a Source, if an event cannot be JSON-parsed, all of its content will be assigned to _raw.

  • If a timestamp is not configured to be extracted, the current time (in UNIX epoch format) will be assigned to _time.

Using Capture

One way to see what an event looks like as it travels through the system is to use the Capture feature. While in Preview (right pane):

  1. Click Start a Capture.

  2. In the resulting modal, enter a Filter expression to narrow down the events of interest.

  3. Click Capture... and (optionally) change the default Time and/or Event limits.

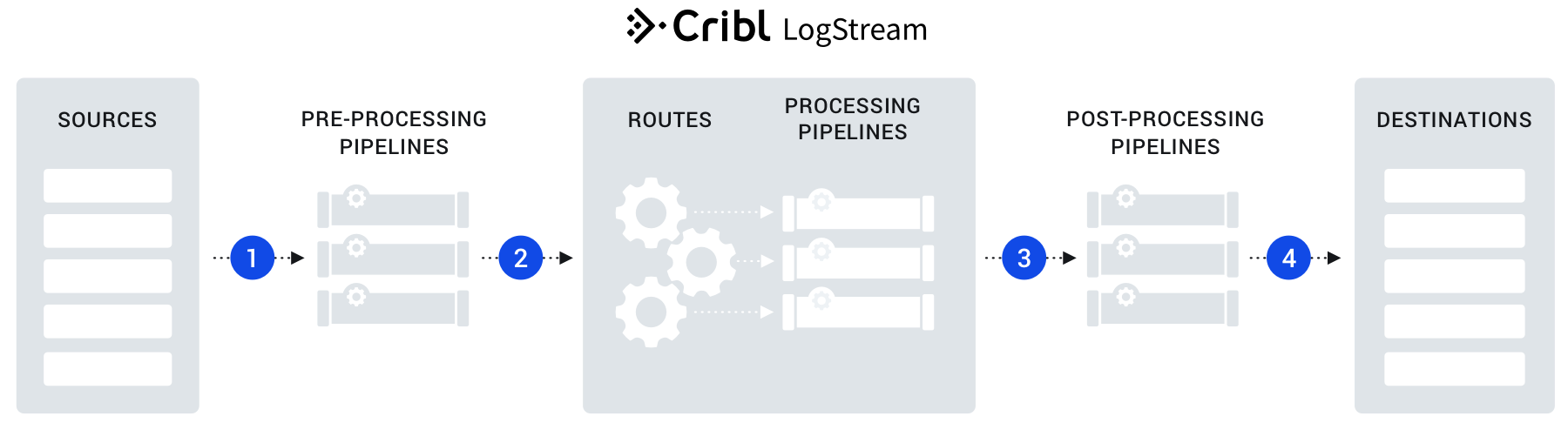

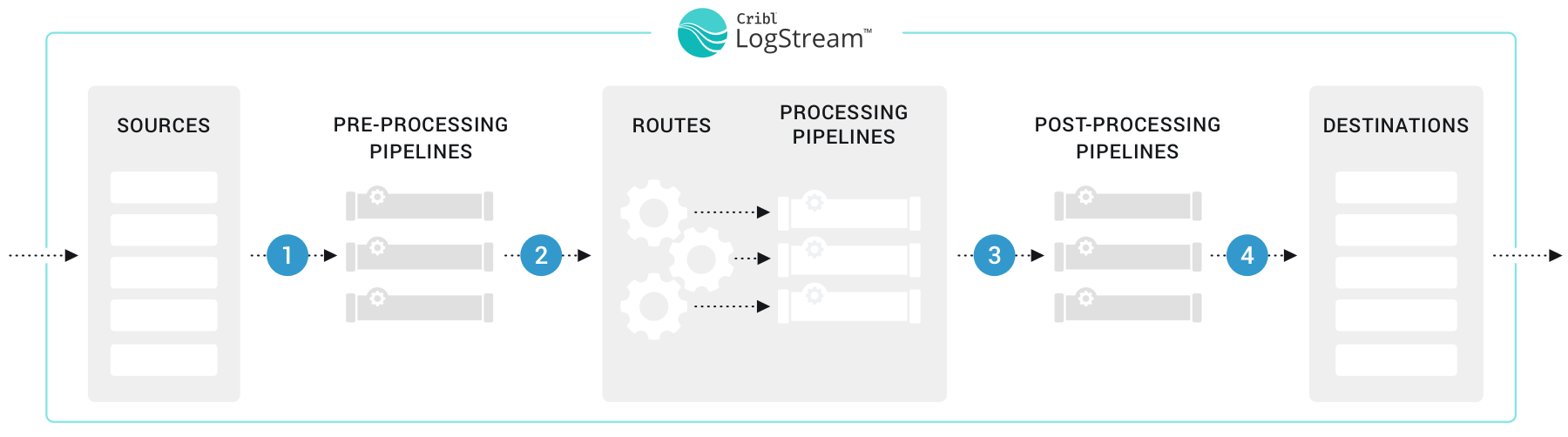

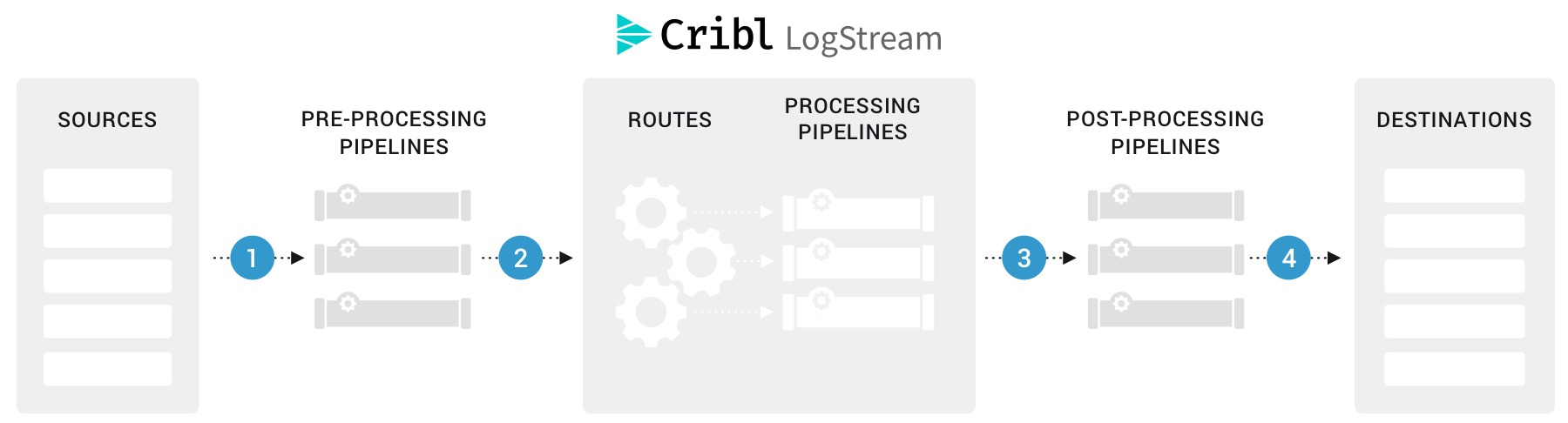

  4. Select the desired Where to capture option. There are four options:

  • 1. Before the pre-processing Pipeline – Capture events right after they're delivered by the respective Input.
  • 2. Before the Routes – Capture events right after the pre-processing Pipeline, before they go down the Routes.
  • 3. Before the post-processing Pipeline – Capture events right after the Processing Pipeline that actually handled them, before any post-processing Pipeline.
  • 4. Before the Destination – Capture events right after the post-processing Pipeline, before they go out to the configured Destination.
