Parser

The Parser Function can be used to extract fields out of events or reserialize (rewrite) events with a subset of fields. Reserialization will preserve the format of the events.

For example, if an event contains comma-delimited fields, and fieldA and fieldB are filtered out, those fields’ positions will be set to null but not deleted completely.

The Parser Function can’t remove fields that it didn’t create. A subsequent Eval Function can do this.

Usage

​

Filter: Filter expression (JavaScript) that selects data to feed through the Function. Defaults to true, meaning evaluate all events.

Description: Simple description about this Function. Defaults to empty.

Final: Toggle on to stop feeding data to the downstream Functions. Default is toggled off.

Operation mode: Extract will create new fields. Reserialize will extract, filter fields, and then reserialize.

Type: Parser/Formatter type to use. Options:

• CSV: Comma-separated values.
• Extended Log File Format: Extended Log File Format.
• Common Log Format: Common Log Format.
• Key=Value Pairs: A set of data that represents two associated groups through a key and a value.
• JSON Object: JavaScript Object Notation (JSON) is a standard text-based format for representing structured data based on JavaScript object syntax.
• Delimited values: A character identifies the beginning or the end of a character string.
• Regular Expression: A sequence of characters that specifies a match pattern in text.
• Grok: A string of special characters and regular expressions (pattern) that match data.

The following two additional options appear in the drop-down, but can only be used when Operation mode is set to Extract; both expand the UI:

• Grok
• Regular Expression

Library: Select an option from the Parsers Library. Although specifying a Library will auto-generate an example list of fields, the list may still need to be modified to accommodate the desired fields from the events as well as the actual field order.

Source field: Field that contains text to be parsed. Not usually needed in Reserialize mode.

Destination field: Name of field in which to place the extracted and serialized fields. If the field already exists, it will be overwritten. If multiple new fields are created and this field is populated, then all new fields are created as elements of an array. The array’s name will be set to this field’s value. If you want all new fields to be independent, rather than in an array, then specify them using List of fields, below. (Extract and Reserialize modes only.)

Clean fields: This option appears for Type: K=V Pairs. Toggle on to clean field names by replacing non-alphanumeric characters with _. This will also strip leading and trailing " symbols.

List of fields: Fields expected to be extracted, in order. If not specified, Parser will auto-generate fields.

List of Fields will not display, when the Parser/Formatter Type is set to JSON Object or Key=Value Pairs. This option is only relevant for structured formats like CSV, CLF, and ELFF. It helps name extracted fields when they aren’t explicitly defined in the raw data. For JSON Object and Key-Value Pair formats, field names are inherent and this option is ignored.

Fields to keep: List of fields to keep. Takes precedence over the Fields to remove setting. The field accepts wildcards (*), which supports both:

• Wildcards (*) to include multiple fields.
• Nested addressing, where you can reference a parent field and all its children using a wildcard. For example, if you convert _raw into an object, use _raw* to refer to _raw and all nested fields inside it. See Wildcard Lists for more information.

Fields to remove: List of fields to remove. Supports wildcards (*). Cannot remove fields matching Fields to keep. Supports wildcards (*) to include multiple fields and nested addressing. See Wildcard Lists for more information.

Fields filter expression: Expression to evaluate against each field’s {index, name, value} context. Return truthy to keep fields, or falsy to remove fields. Index is zero-based. See details below.

Types That Expand the UI

​

Setting Type to Delimited Values displays the following extra options:

• Delimiter: Delimiter character to split value. Defaults to comma (,). You can also specify pipe (|) or tab characters.
• Quote char: Character used to quote literal values. Defaults to ".
• Escape char: Character used to escape the delimiter character. Defaults to: \
• Null value: Field value representing the null value. These fields will be omitted. Defaults to: -

Setting Type to Grok displays the Grok Function UI; setting it to Regex Extract displays the Regex Extract UI. These Parser preserve all previewing and editing. Also, Grok enables you to bring Grok Patterns into Cribl Search.

Advanced Settings

​

Allowed key characters: Enter characters permitted in a key name, even though they are normally separator or control characters. Separate entries with a tab or hard return. This setting does not affect how the value is parsed.

Allowed value characters: Enter characters permitted in a value name, even though they are normally separator or control characters. Separate entries with a tab or hard return. This setting does not affect how the key is parsed.

Fields/Values Interaction

​

This Function’s Filter, Type, Fields to keep, Fields to remove, and Fields filter expression settings interact as follows.

Order of Evaluation

​

The order is: Fields to keep > Fields to remove > Fields filter expression.

Precedence

​

If a field is in both Fields to keep and Fields to remove, Fields to keep takes precedence.

If a field is in both Fields to remove and Fields filter expression, Fields to remove takes precedence.

Negation

​

Both Fields to remove and Fields to keep support negated terms. When you use negated terms, your fields list is order-sensitive. For example, !foobar, foo* means “All fields that start with foo, except foobar.” However, !foo*, * means “All fields, except for those that start with foo.”

Characters to Escape

​

Particular characters need special treatment when parsed when you select the Key=Value Pairs or CSV Parser/Formatter type.

Key-Value Pairs

​

When a Parser Function’s Type is set to Key=Value Pairs: Within your data, field values that contain an = delimiter must be surrounded by quotes ("..."), or the Function will return unexpected results. As an example, here is a set of four fields and values, in which two values are quoted to parse predictably:

one=1,two="value=2",three=3,four="value=4"

These would resolve to the following parsed values:

CSV

​

When a Parser Function’s Type is set to CSV: Within your data, column values that contain quotes or commas must quote those characters, or the Function will return unexpected results. To illustrate this, here is a properly formatted example of four CSV values:

"value with ""escaped"" quotes is 1",2,3,"you know, this is 4"

The first value includes quotation marks, which are each escaped with surrounding quotes, and the whole value is delimited by outer quotes. The fourth value includes a comma, so that value is delimited by outer quotes. These four columns would cleanly evaluate to:

value with “escaped” quotes is 1 2 3 you know, this is 4

Examples

​

The following examples show creating and dropping fields, reserialization, and serializing to CSV versus JSON.

Example 1

​

Insert the following sample, using Sample Data > Import Data: 2019/06/24 05:10:55 PM Z a=000,b=001,c=002,d=003,e=004,f=005,g1=006,g2=007,g3=008

Create the following test Parser Function.

First, set the Type to Key=Value Pairs.

Scenario A

​

Keep fields a, b, c. Drop the rest.

Expected result: a, b, c

• Fields to Keep: a, b, c
• Fields to Remove: *
• Fields Filter Expression: <empty>

Result: The event will gain four new fields and values, as follows.

• a: 000
• b: 001
• c: 002
• cribl_pipe: parser2

You can check your stats by selecting the Preview pane’s Basic Statistics (chart) button. In the resulting pop-up, the Number of Fields should have incremented ty four.

Now that you have the hang of it, try out the other simple scenarios below.

Scenario B

​

Keep fields a, b, those that start with g. Drop the rest.

Expected result: a, b, g1, g2, g3

• Fields to keep: a, b
• Fields to remove: [empty]
• Fields filter expression: name.startsWith('g')

Scenario C

​

Keep fields a, b, those that start with g but only if value is 007. Drop the rest.

Expected result: a, b, g2

• Fields to keep: a, b
• Fields to remove: [empty]
• Fields filter expression: name.startsWith('g') && value=='007'

Scenario D

​

Keep fields a, b, c, those that start with g, unless it’s g1. Drop the rest.

Expected result: a, b, c, g2, g3

• Fields to keep: a, b, c
• Fields to remove: g1
• Fields filter expression: name.startsWith('g')

Scenario E

​

Keep fields a, b, c, those that start with g but only if index is greater than 6. Drop the rest.

Expected result: a, b, c, g2, g3

• Fields to keep: a, b, c
• Fields to remove: [empty]
• Fields filter expression: name.startsWith('g') && index>6

The index refers to the location of a field in the array of all fields extracted by this Parser. It is zero-based. In the case above, g2 and g3 have index values of 7 and 8, respectively.

Example 2

​

Assume we have a JSON event that needs to be reserialized, given these requirements:

1. Remove the level field only if it’s set to info.
2. Remove the startTime field, and all fields in the values.total. path that end in Cxn.

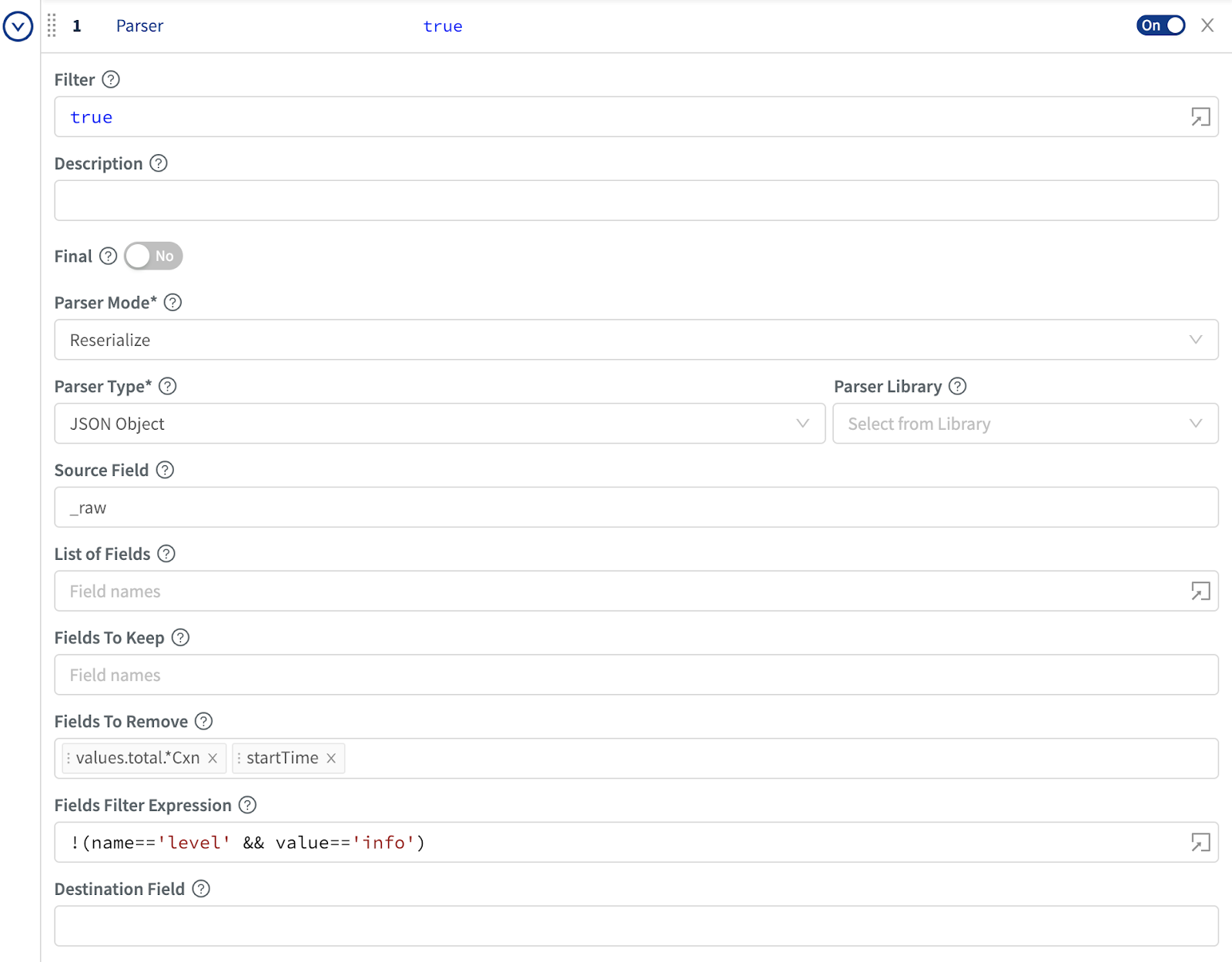

Parser Function configuration:

JSON event after being processed by the Function:

Example 3

​

Insert the following sample, using Sample Data > Import Data:

2019/06/24 15:25:36 PM Z a=000,b=001,c=002,d=003,e=004,f=005,g1=006,g2=007,g3=008,

For all scenarios below, first create a Parser Function to extract all fields, by setting the Type to Key=Value Pairs. Then add a second Parser Function with the configuration shown under Parser 2.

Scenario A

​

Serialize fields a, b, c, d in CSV format.

Expected result: _raw field will have this value 000,001,002,003

Parser 2:

​

• Operation mode: Serialize
• Source field: [empty]
• Destination field: [empty]
• Type: CSV
• List of fields: a, b, c, d (needed for positional formats)

Scenario B

​

Serialize fields a, b, c in JSON format, under a field called bar.

Expected result: bar field will be set to: {"a":"000","b":"001","c":"002","d":"003"}

Parser 2:

​

• Operation mode: Serialize
• Source field: [empty]
• Destination field: bar
• Type: JSON
• List of fields: [empty]
• Fields to keep: a, b, c, d

Example 4

​

Assume we have a simple event that looks like this:

metric=123 dc=ab port=9090

If we want to extract only the metric field, we can configure a Parser of Type Regular Expression, where the Regex field is set to metric=(?<metric>\\d+):

The output will look like this:

Example 5

​

Assume we have an event that looks like this:

2020-09-16T04:20:42.45+01:00 DEBUG This is a sample debug log message

We can use a Grok pattern to parse the event so that the timestamp, log level, and the message are separated. A Parser of Type Grok with the following Pattern will work:

%{TIMESTAMP_ISO8601:event_time} %{LOGLEVEL:log_level} %{GREEDYDATA:log_message}

The Parser Function configuration looks like this:

The output will look like this:
