What Is the Regex Library
Cribl LogStream ships with a Regex Library that contains a set of pre-built common regex patterns. This library serves as an easily accessible repository of regular expressions. The Library is searchable, and you can assign tags to each pattern for further organization or categorization. The Library is located under Knowledge > Regex Library .

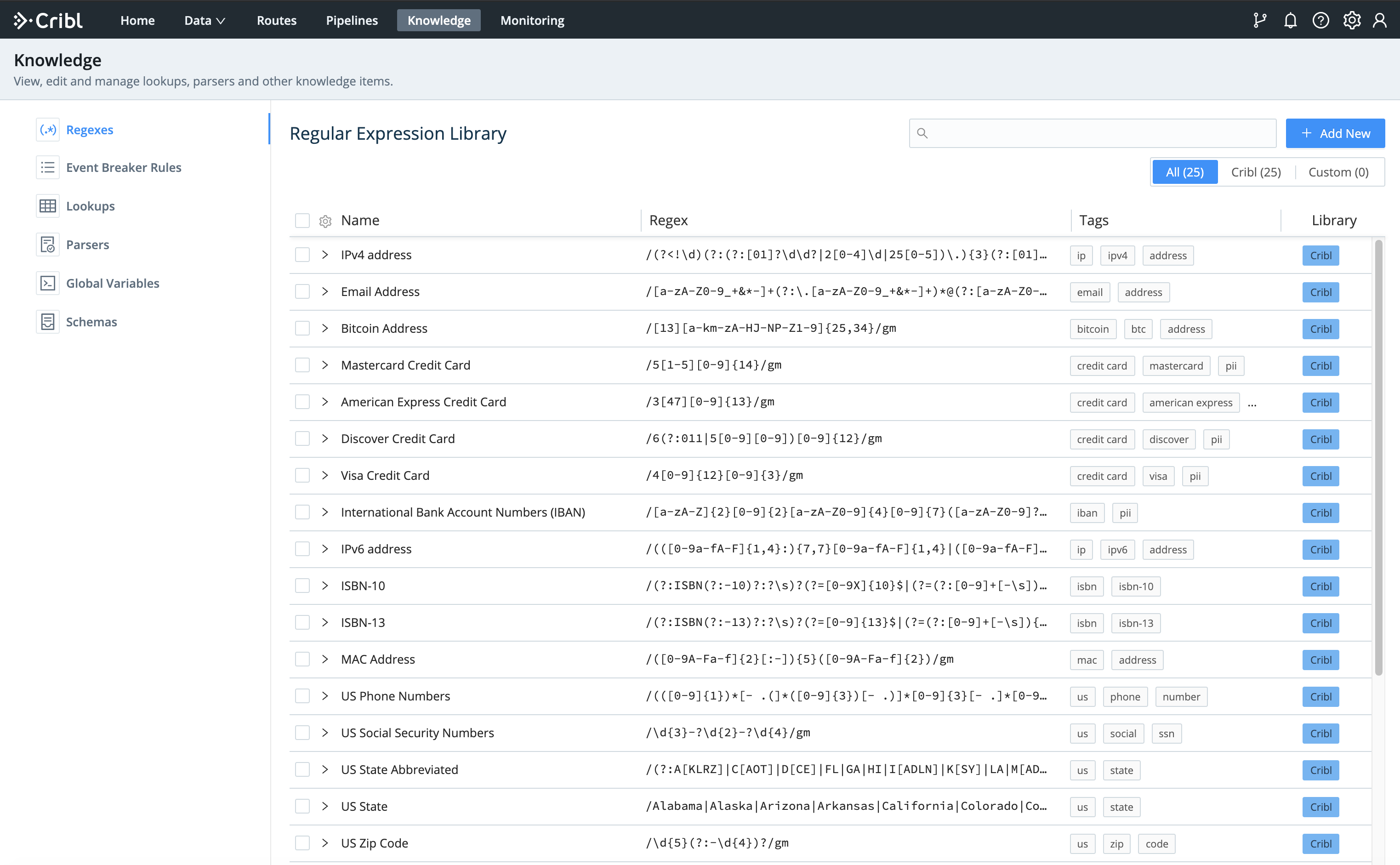

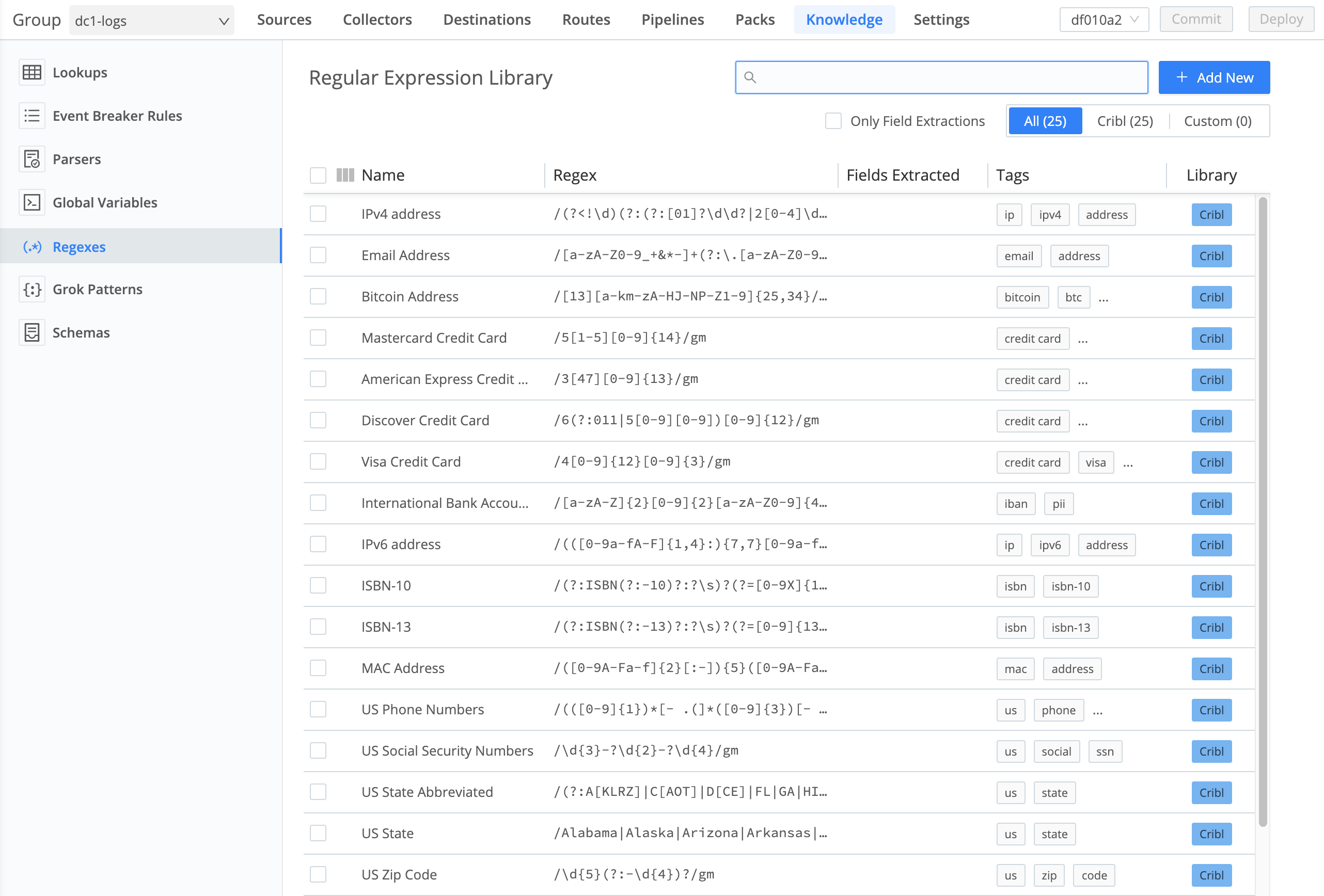

Regular Expression Library
Using Library Patterns
As of this version, the Library contains 25 patterns shipped by Cribl LogStream. To insert a pattern into a Function's regex field, first click the pop-out or Edit icon beside that field.

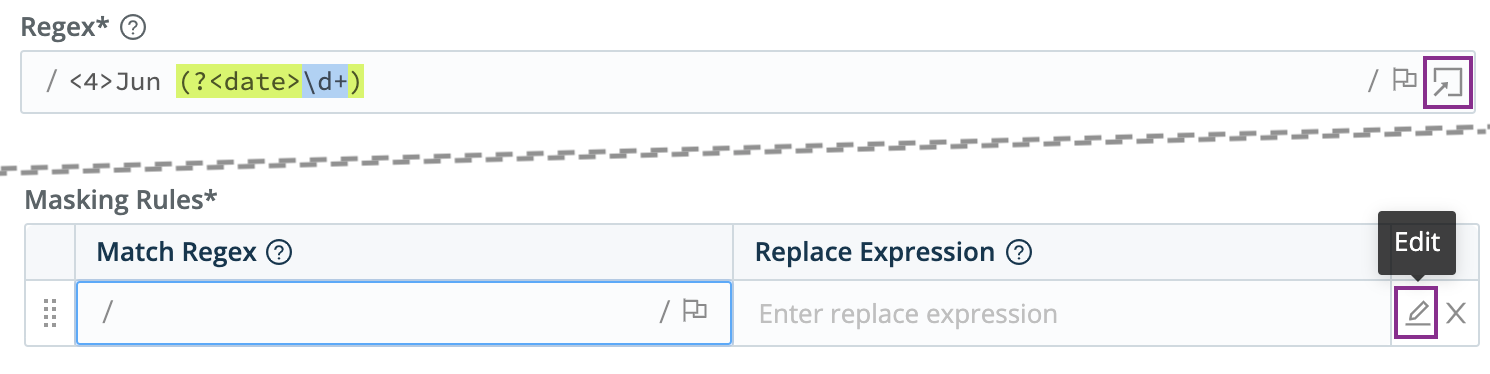

Opening a Regex modal
In the resulting Regex or Rules modal, Regex Library patterns will appear as typeahead options. Click a pattern to paste it in. You can then use the pattern as-is, or modify it as necessary.

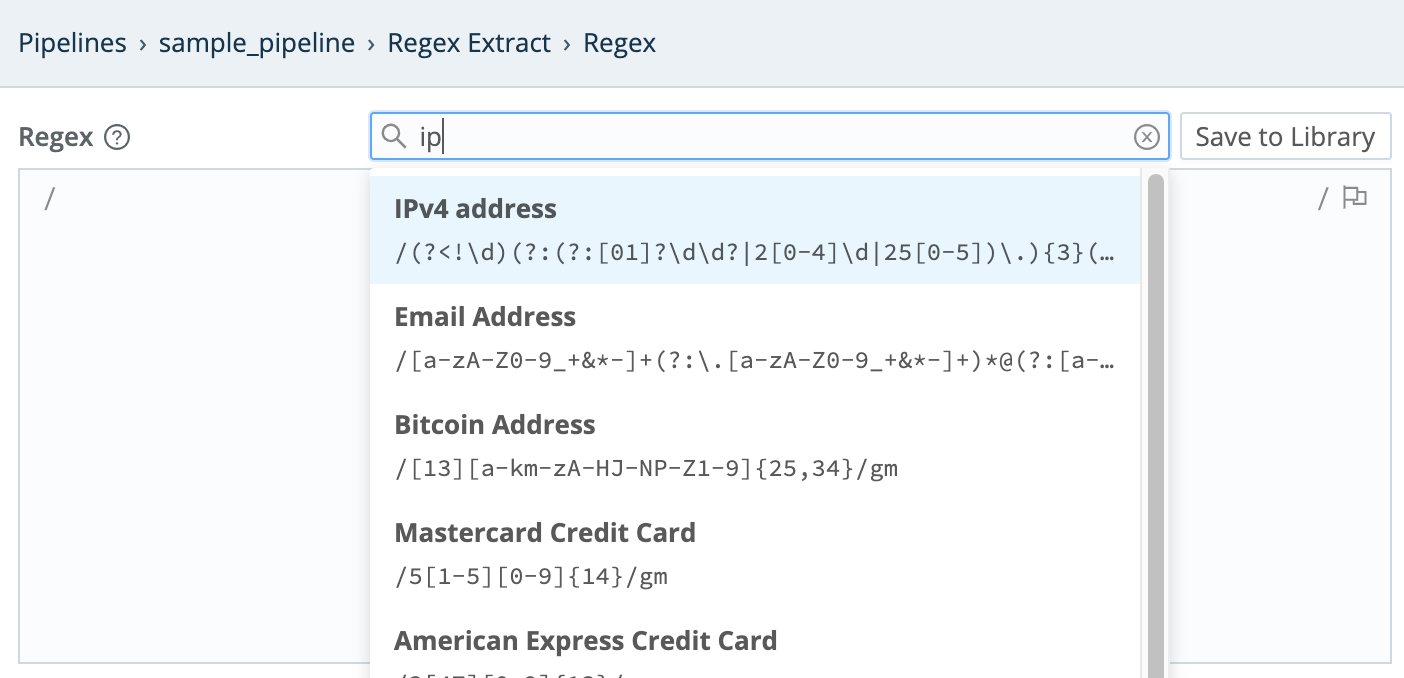

Inserting a pattern from the Regex Library
Adding Patterns to the Library
You can also add new, custom patterns to the Library. In the same modal, once you've built your pattern, click the Save to Library button.

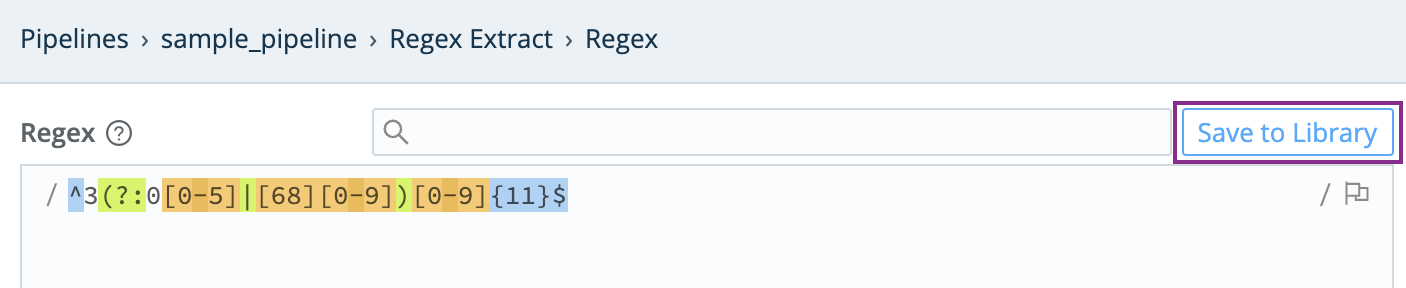

Adding a custom pattern to the Regex Library from a Function's Regex modal
In the resulting modal, give your custom pattern a unique ID. Optionally, you can also provide a Description (name) and groom the Sample data. Then click Save.




Identifying the custom pattern
Your custom pattern will now reside in the Regex Library. It will be available to Functions using the same typeahead assist as Cribl's pre-built patterns.
Cribl vs. Custom and Priority
Within the Library, patterns shipped by Cribl will be listed under the Cribl tab, while those built by users will be found under Custom. Over time, Cribl LogStream will ship more patterns, and this distinction allows for both sets to grow independently.
In the case of an ID/Name conflict, the Custom pattern takes priority in listings and search. For example, if a Cribl-provided pattern and a Custom one are both named ipv4
, the one from Cribl will not be displayed or delivered as a search result.
