Trim Timestamp (deprecated)

The Trim Timestamp Function removes timestamp patterns from events, and (optionally) stores them in a specified field.

This Function is deprecated as of Cribl Edge 4.7, and will be removed in the next major version. Please use the Eval Function instead.

This Function looks for a timestamp pattern that exists between the characters indicated by numeric timestartpos and timeendpos fields. From events whose timestartpos value is set to 0, the Function removes timestartpos and timeendpos along with the timestamp pattern.

Usage
​

Filter: Filter expression (JS) that selects data to feed through the Function. Defaults to true, meaning it evaluates all events.

Description: Simple description about this step in the Pipeline. Defaults to empty.

Final: If toggled to Yes, stops feeding data to the downstream Functions. Defaults to No.

Field name: Name of field in which to save the timestamp. (If empty, timestamp will not be saved to a field.)

Example
​

Remove the timestamp pattern (indicated by timestartpos and timeendpos) from _raw, and stash it in a field called time_field.

Field name: time_field

Example event before:

{"_raw": "2020-05-22 16:32:11,359 Event [Event=UpdateBillingProvQuote, timestamp=1581426279, properties={JMSCorrelationID=NA, JMSMessageID=ID:ESP-PD.D2BB2D95F857B:FA323D61, orderType=RatePlanFeatureChange, quotePriority=NORMAL}",
"timestartpos":0,
"timeendpos":23
}

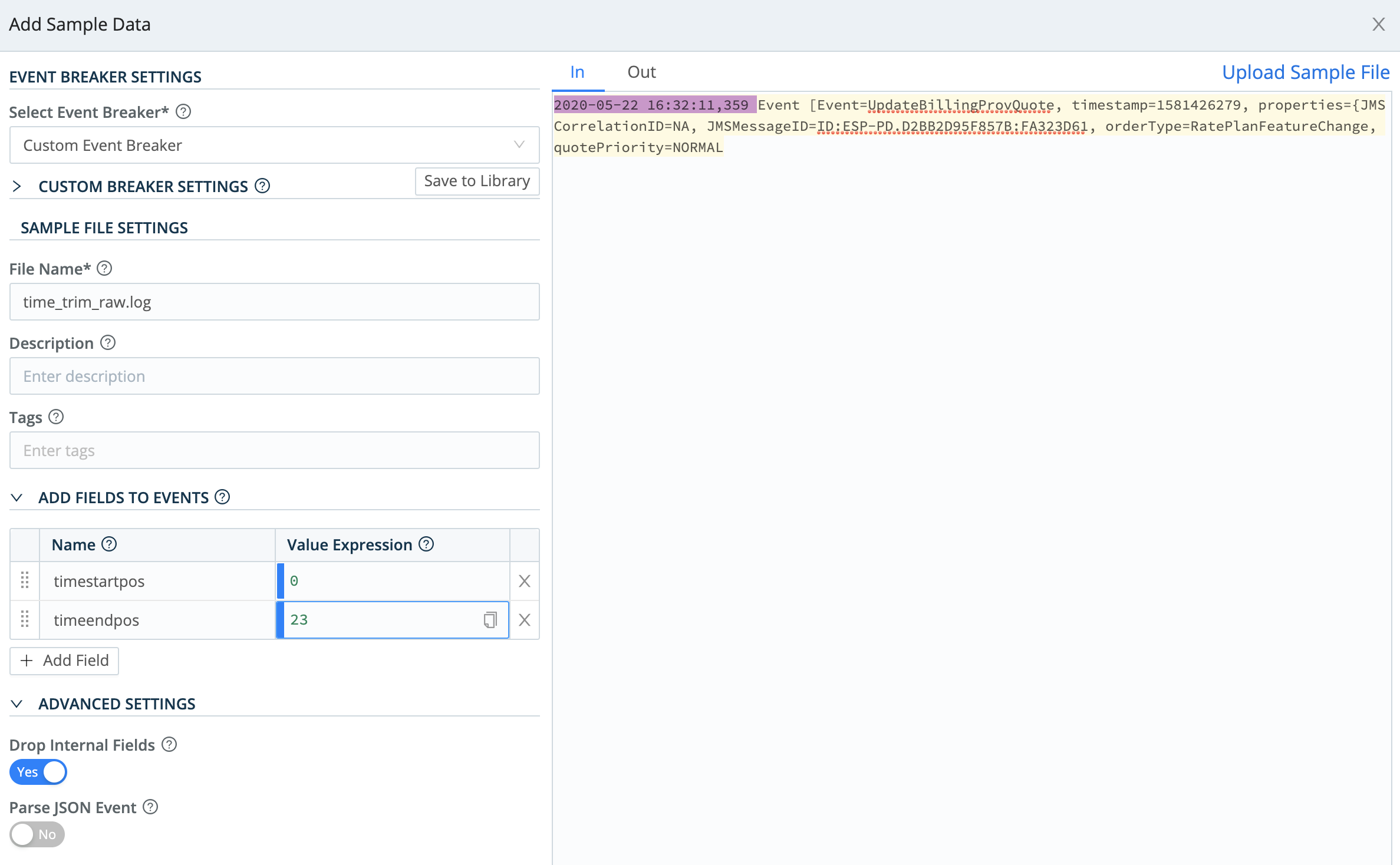

To create this example payload, we selected Sample Data > Paste, pasted the _raw field’s original contents into the resulting modal, and then added the two required position fields:

Example event setup
Example event setup

Example event after:

{"_raw": "Event [Event=UpdateBillingProvQuote, timestamp=1581426279, properties={JMSCorrelationID=NA, JMSMessageID=ID:ESP-PD.D2BB2D95F857B:FA323D61, orderType=RatePlanFeatureChange, quotePriority=NORMAL}",
"time_field":"2020-05-22 16:32:11,359"
}

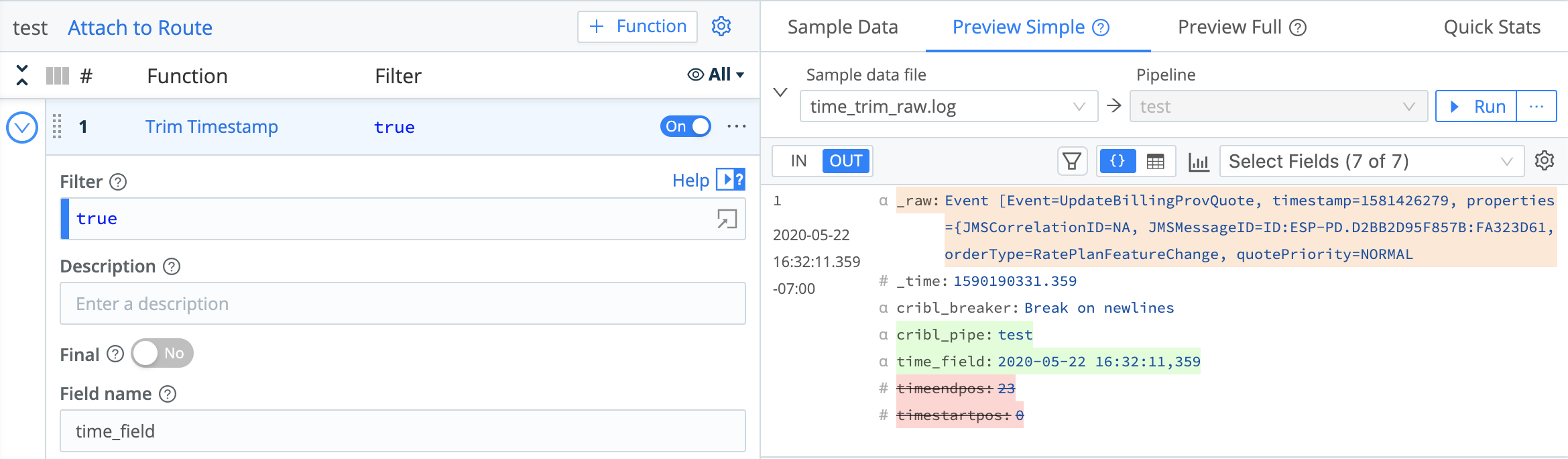

In the Preview pane’s OUT view, the original timestamp has been removed from _raw, and lifted into the new time_field we specified in the Function. The timestartpos and timeendpos fields have been removed.

Example event, saved and transformed
Example event, saved and transformed
