Filter Edge Nodes

Learn how to filter large lists of Edge Nodes

When your Cribl Edge deployment has a large number of Nodes, you may want to filter your Node list down to a manageable subset of Nodes. This can help you monitor your Edge Nodes and troubleshoot any issues.

For example, you may want to view all of the Edge Nodes that are experiencing upgrade issues. Or, you may need to update the configuration of Nodes that are running a certain operating system version, but you don’t know which Fleets they belong to.

The Filters option allows you to apply filter criteria to your Node list, so you can quickly find Nodes by OS Platform, IP address, install type, version and more.

Access Node Filters

​

In Cribl Edge, you can filter Edge Nodes in two places:

• In a specific Fleet in the Edge Nodes list. Navigate to Fleets, then select a Fleet.
• On the list of all Edge Nodes. Navigate to Edge Nodes from the sidebar.

Filter Modes

​

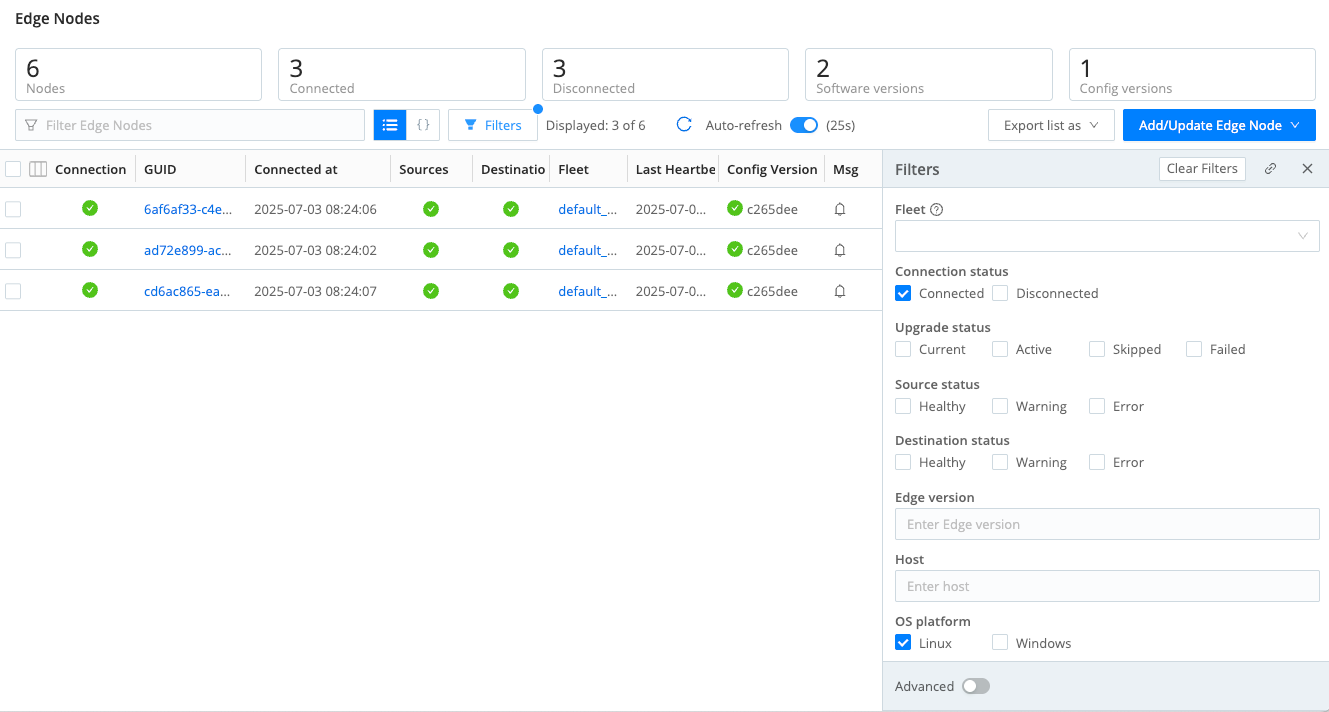

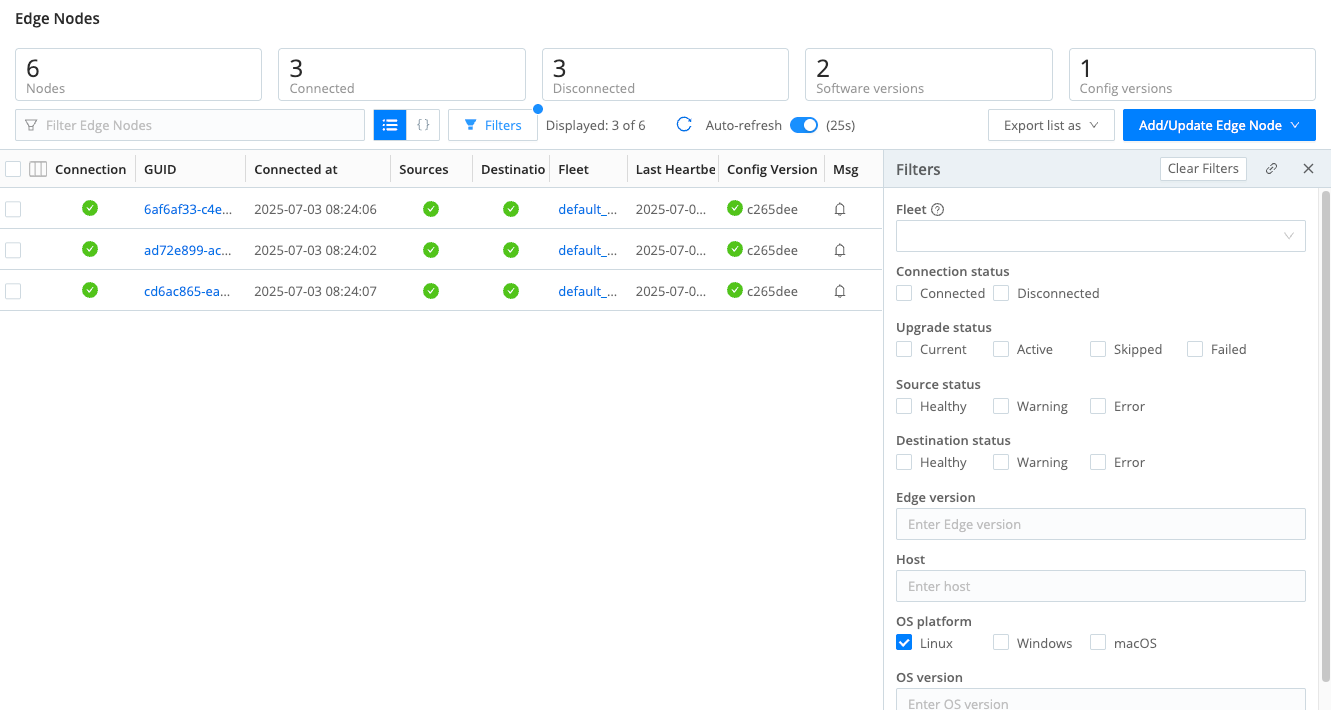

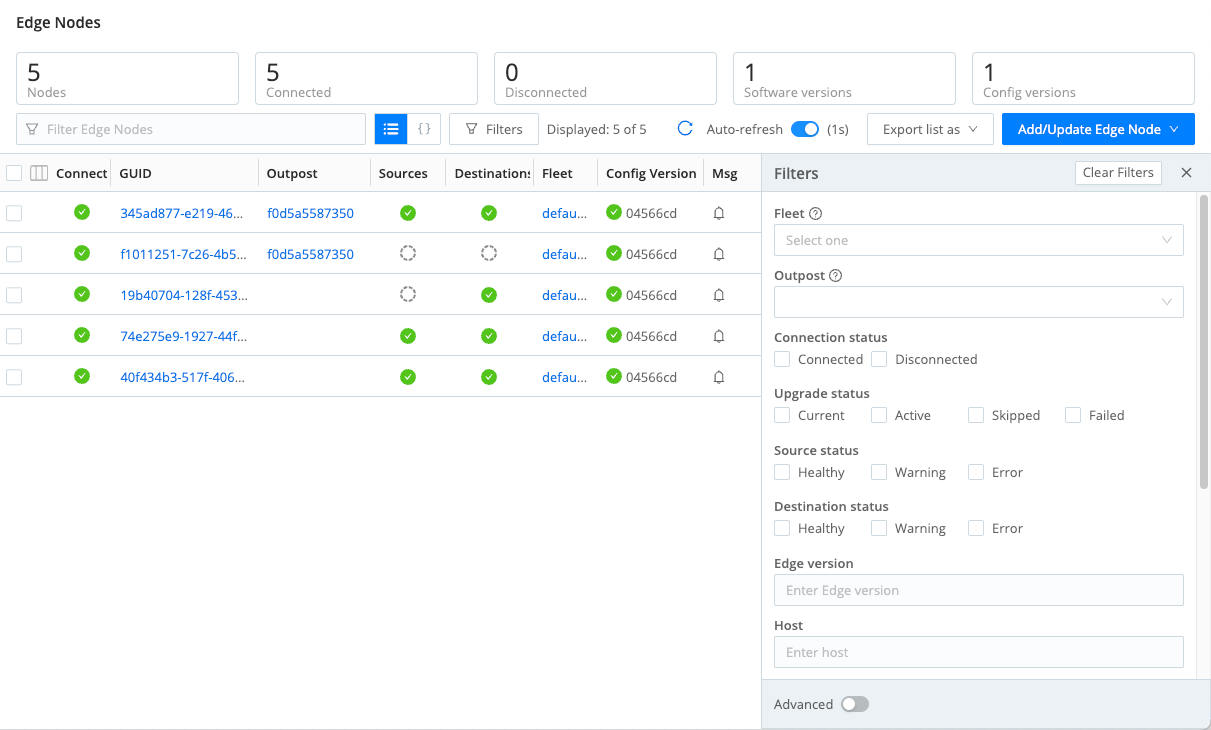

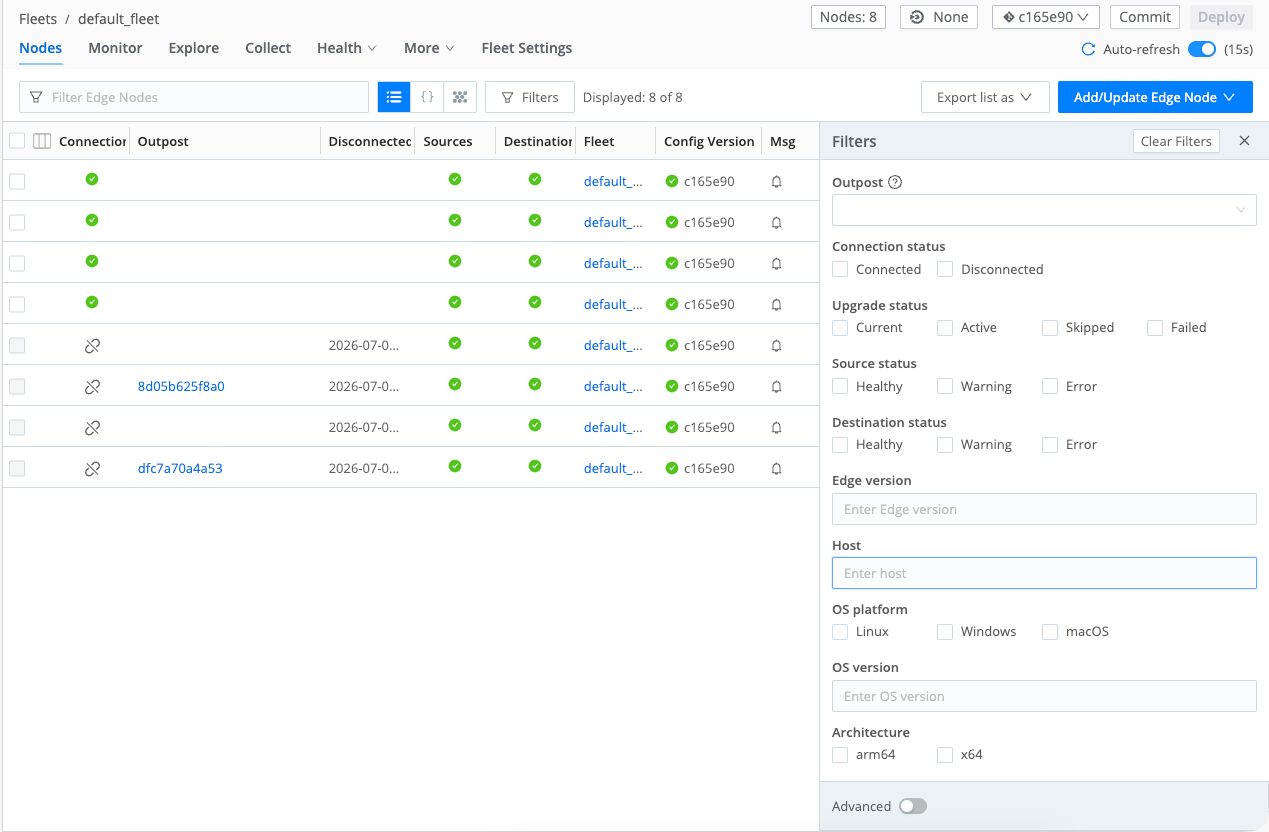

You can choose between the default form-based mode and Advanced mode when you create a Node filter. Form-based mode contains the preconfigured fields and checkboxes you see when you select Filters.

For a table of the options and their definitions, see Form-based Filter Options.

Advanced mode is a JavaScript input field where you can create your own filter, referencing the JSON objects that are associated with an Edge Node.

You can edit the JavaScript by typing in the Expression field, but doing so disables the form-based filters unless you undo the changes. To revert back to the form-based filter, select Undo changes.

Some filter combinations will never return any results – for example, OS platform set to Linux and Install type set to MSI, since MSI is only used for Windows installations.

Create an Edge Node Filter

​

The Filters option lets you group a list of Nodes by criteria such as OS platform, IP address, install type, version, and more.

To create an Edge Node filter:

1. Navigate to a list of Edge Nodes, either from the Nodes tab in a Fleet or from the Edge Nodes sidebar.
2. Select Filters to open the Filters panel.
3. Create a filter by selecting from the Node Filter Options, or toggle Advanced on to write your own filter using JavaScript.
4. Once you have selected filter criteria, you can use the Filter Edge Nodes field to further narrow down the list of visible Nodes.
5. Select Clear filters to undo your selections in the Filters panel. This does not clear the Filter Edge Nodes field.

Share a Filter

​

To share a filter with another Cribl user:

1. Select the Filters button and create a filter.
2. Select the link icon to copy the filters to your clipboard, or copy the browser URL.
3. Now you can share the link with another user.

Filters are Workspace-specific, so they will only work within the Workspace where you created them.

Form-based Filter Options

​

You can choose from a set of preconfigured, form-based filter options, and each has an associated JavaScript property. You’ll see the JavaScript property in the Expressions field when you toggle Advanced on.

Advanced Filter Options

​

You can use JavaScript expressions in the Advanced filter to surface more specific, granular search results. You can use any Edge Node properties and types in the Expression field.

The JavaScript expression should be in this format, in hierarchical order from parent to child:

parent.child.grandchild === 'value'

For example:

info.aws.type === 't2.medium'.

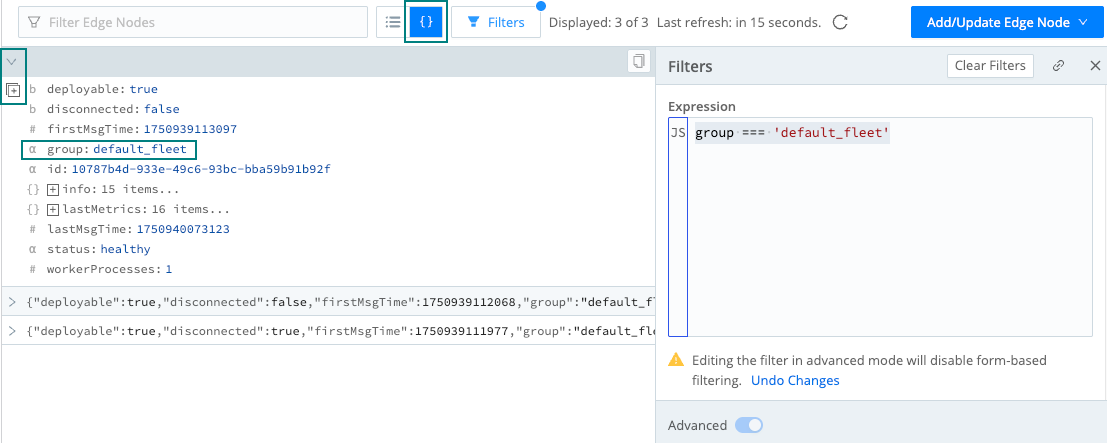

You can also automatically populate the Advanced filter Expression field:

1. Select the JSON view button.

2. Expand the Node row and select the Node property, then any applicable child properties.

3. Type directly in the Expression field to fine-tune the filter.





Supported Edge Node Properties

​

You can filter on these Edge Node properties using a JavaScript expression. Remember to separate the parent and child properties using a period ..

  "deployable": "boolean (Whether the Node can be deployed)",
  "disconnected": "boolean (Whether the Node is connected to the Leader)",
  "workerProcesses": "number (Number of Worker Processes for this Node"),
  "id": "string",
  "status": "string (Healthy)",
  "group": "string (Fleet name)",
  "info": {
    "hostname": "string",
    "platform": "string (OS Platform; linux, win32 etc.)",
    "architecture": "string (CPU Architecture; arm64, x64 etc.)",
    "release": "string (OS Kernel release)",
    "cpus": "number (Number of CPU cores)",
    "totalmem": "number (Memory in bytes)",
    "node": "string (NodeJS version)",
    "cribl": {
      "startTime": "number (epoch timestamp in msecs when the process started)",
      "guid": "string (unique instance ID)",
      "installType": "string",
      "tags": "string array (tags configured on the Node)",
      "version": "string (Edge version)"
    },
    "freeDiskSpace": "number (Free disk space in bytes)",
    "totalDiskSpace": "number (Total disk space in bytes)",
    "kube": {
      "source": "string (always cluster)",
      "node": "string (Node name where this Pod is running)",
      "pod": "string (Pod Name)",
      "namespace": "string (namespace, always cribl)",
      "owner": {
        "kind": "string (DaemonSet)",
        "name": "string (cribl-edge)"
      },
    "conn_ip": "string (this is the IP that Cribl Leader sees; different from actual IP of the Node)",
    "localTime": "number (local epoch time on the Node in msec)"
    },
  },
  "lastMsgTime": "number (time when Node sent the last message in msec)",
  "firstMsgTime": "number (time when Node sent the first message in msec)",
  "nodeUpgradeStatus": {
    "timestamp": "number (time when Node entered the state below in msec)",
    "state": "number",
    "skipped": "number (if set, this Node is skipped by thr Leader's automatic upgrade. See InstallType above)"
  }
  "lastMetrics": {
    "edge.dropped events": "number (events dropped by Node)",
    "health.inputs": "number",
    "health.outputs": "number",
    "total.in_events": "number (total events ingested by Node)",
    "total.out_events": "number (total events sent out by Node)",
    "total.dropped_events": "number (total events dropped by Node)",
    "total.in_bytes": "number (total ingested bytes)",
    "total.out_bytes": "number (total bytes egressed)"
  }

Example Advanced Filter Expressions

​

You can use these example expressions as a starting point to build your advanced filters.

Edge Nodes with >10 CPUs and >8 GB RAM

Because total memory is reported in bytes, we need to calculate 8GB to bytes before using it in the filter.

info.cpus >= 4 && info.totalmem >= 8388608000

Disconnected Edge Nodes whose last heartbeat was before Jul 02 2025 15:30:00

The lastMsgTime variable represents last heartbeat, and its value is a UNIX timestamp. Convert the human-readable date into a timestamp, then use it as the value in the filter expression.

disconnected === true && lastMsgTime >= 1751463000

Edge Nodes running the System State Source

lastMetrics.hasOwnProperty('health.inputs:input:system_state:in_system_state')

Edge Nodes Running the System State Source and experiencing issues with Destinations

lastMetrics.hasOwnProperty('health.inputs:input:system_state:in_system_state') && lastMetrics['health.outputs'] === 2

Edge Nodes with errors in either Sources or Destinations

lastMetrics['health.inputs'] === 2 || lastMetrics['health.outputs'] === 2
