Exploring Cribl Edge on Windows

Cribl Edge on Windows offers easy-to-use tools for exploring and collecting Windows events. You can run Cribl Edge on Windows Server 2016, 2019, or 2022, to collect events via the Windows Events API.

Limitations

Cribl Edge on Windows is currently subject to the following limitations:

Modes

Cribl Edge on Windows supports only the following modes:

  • Edge: Single
  • Edge: Managed Edge (managed by Leader)

This means you can’t switch Cribl Edge on Windows into Cribl Stream mode (Single-instance, Worker, or Leader).

You can, however, switch between the Cribl Edge supported modes via the UI, in  Settings (top nav) > Distributed Settings > Mode.

Do not select an unsupported mode from this drop-down! Doing so will cause the Cribl service to fail.

Sources and Destinations

Cribl Edge on Windows supports the same Sources and Destinations as Cribl Edge on Linux, with the following exceptions:

Sources on Windows Only

The following Sources are available only when running Cribl Edge on Windows (not on Linux):

Functions

The Grok Function is unavailable on Windows. If you include it in a Pipeline, Cribl Edge processing will skip over it.

Data Formats

Cribl Edge on Windows does not support reading or writing Parquet files. This is a limitation on the following Destinations: Amazon S3, Azure Blob Storage, MinIO, and FileSystem/NFS.

Accessing Cribl Edge on Windows

When you first log into Cribl Edge on Windows (single-instance or managed node), you’ll land on the Home tab where you can explore the metrics and log data that the Node has auto-discovered, and can manually discover and explore other data of interest.

Edge on Windows
Edge on Windows

From the Explore page, you can view more details on your node via the following tabs:

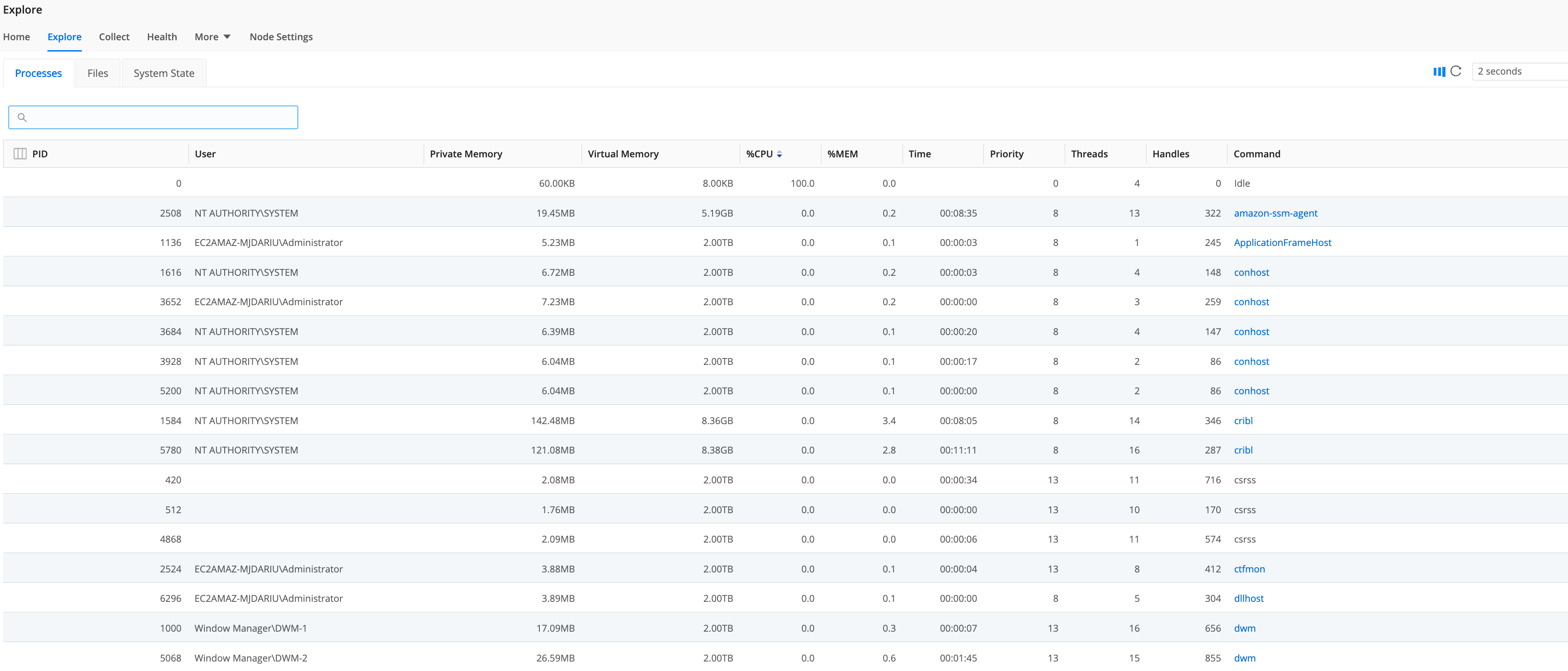

Processes

The Processes tab lists all the processes running on the Edge Node.

Processes tab
Processes tab

Click on any of the rows to display a modal with basic information on the process, including CPU usage, Memory usage, and I/O graphs.

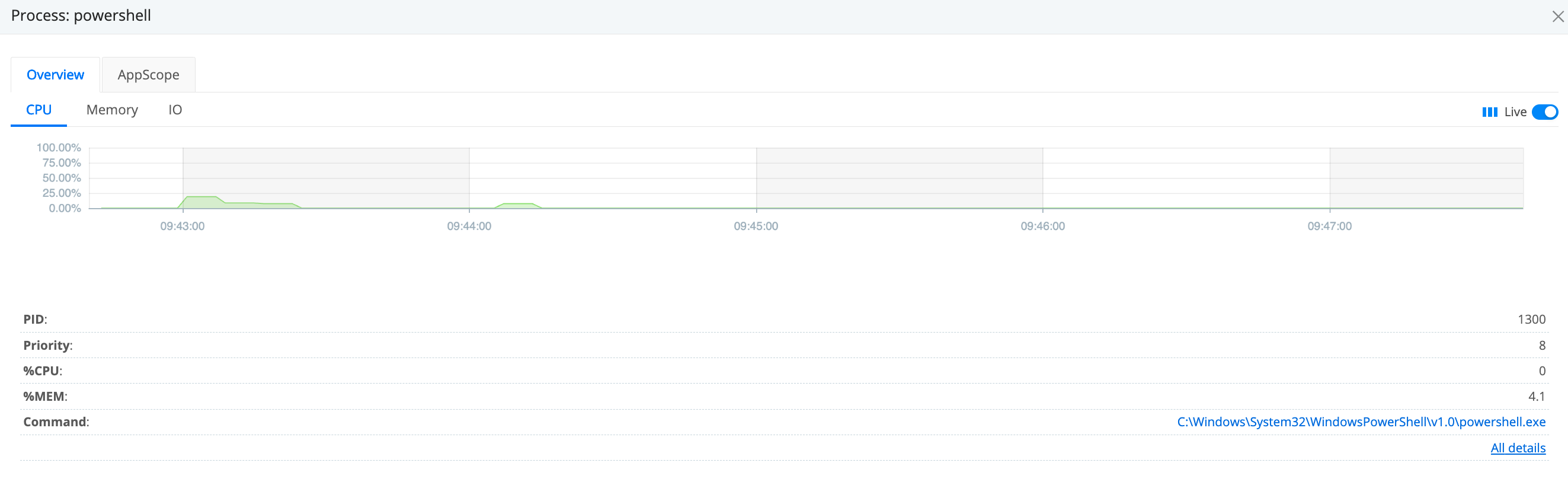

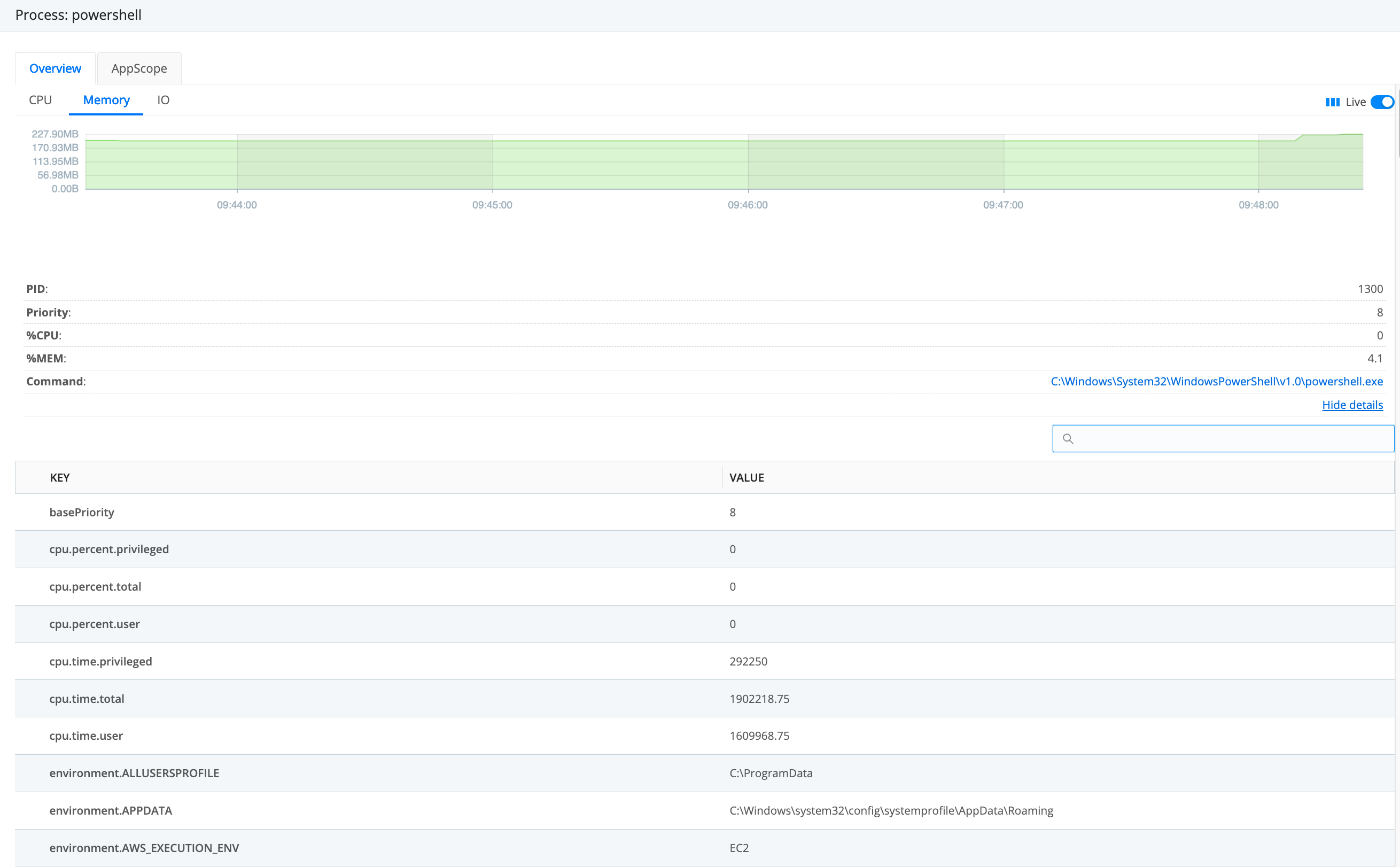

Process details
Process details

In this modal, click All details to get a table view of processes’ information. To access this information, you would normally need to SSH to the machine; this view makes troubleshooting across multiple systems much easier.

All detail link
All detail link

Files

The Files tab enables you to specify a list of directories and files to actively monitor.

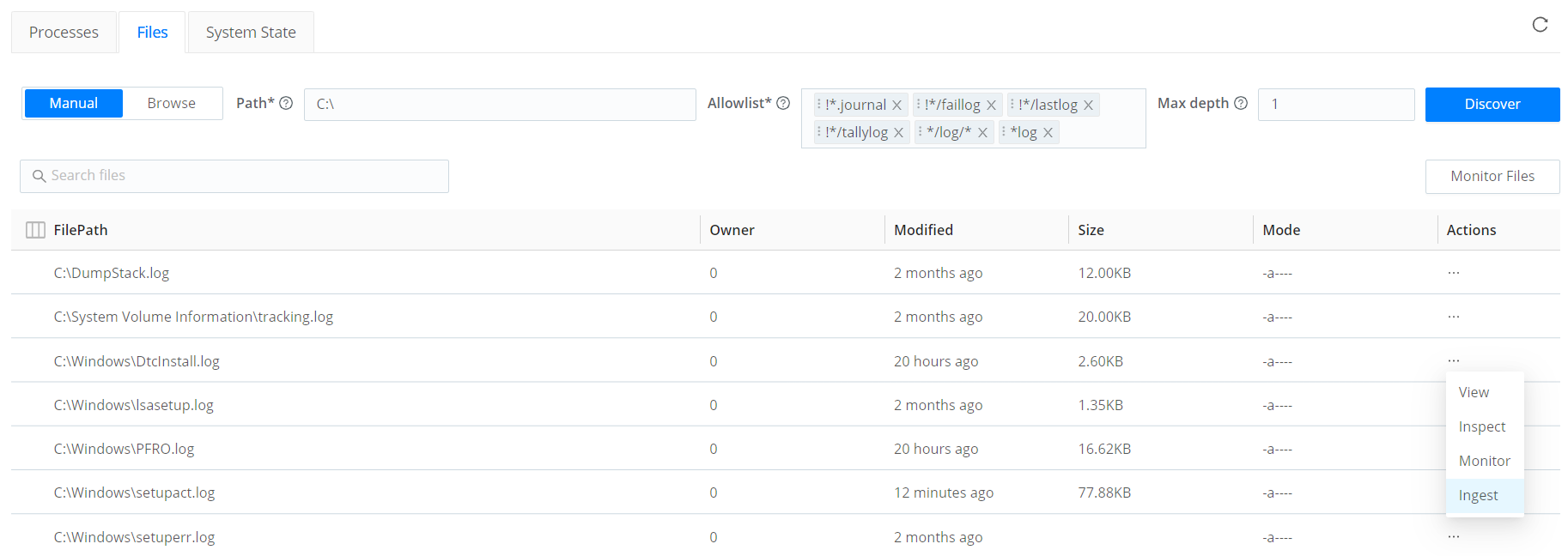

File tab -Manual mode
File tab -Manual mode

The Actions column allows you to:

  • View: Displays a representation of the lines this column contains. You can also click any file row. To restrict how much data is displayed, use the search field or time picker on the Search tab.

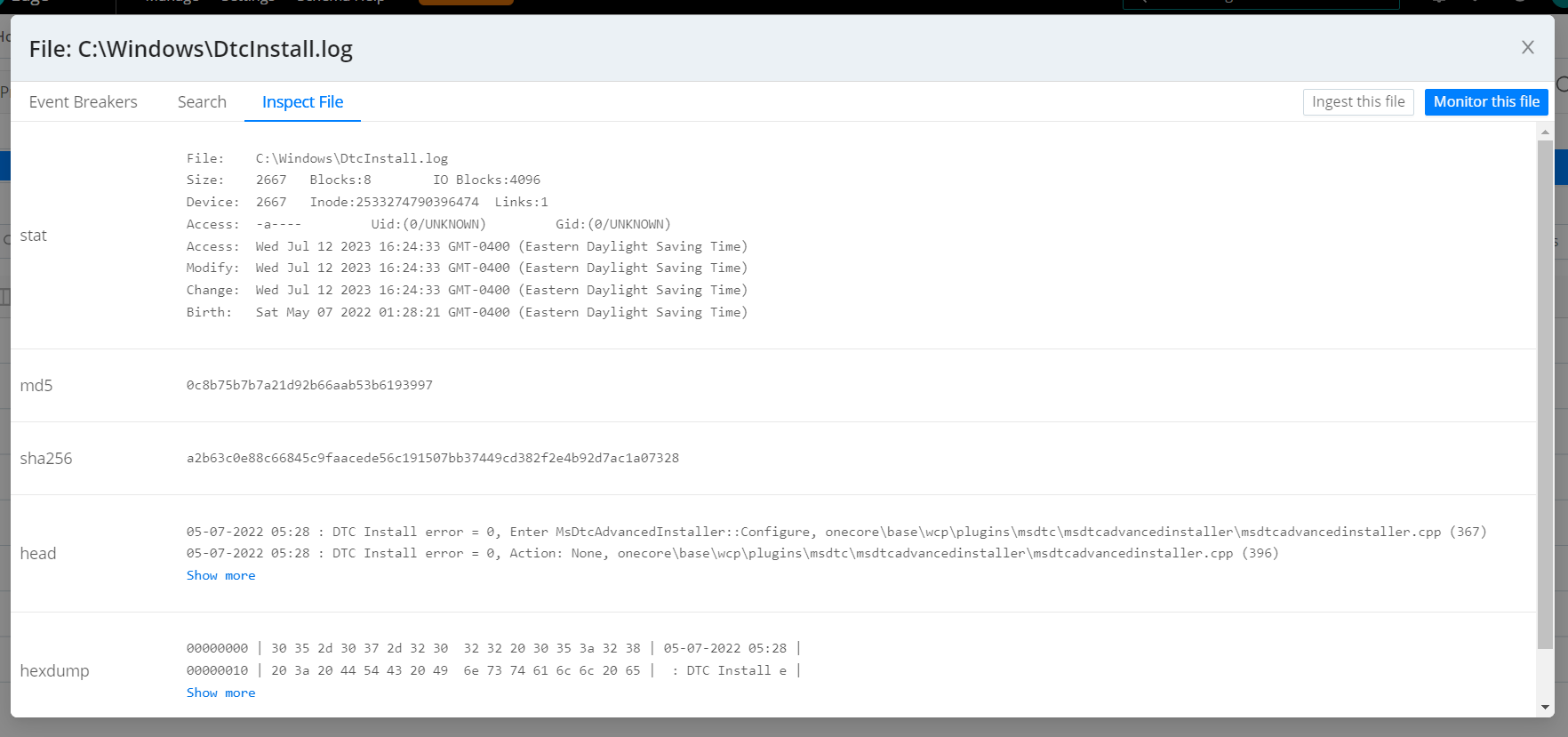

  • Inspect: Opens the Inspect File tab to show file metadata, including details like permissions, file size, user, and modified date.

Inspect File tab
Inspect File tab
  • Monitor: Displays the File Monitor’s configuration modal.

  • Ingest: Opens the Ingest file modal to send the file content to Routes/Pipelines for further processing or downstream to any destination you have configured. This is useful for testing and troubleshooting your configurations.

The Files tab provides the following options.

File Discovery Modes

There are two discovery modes:

  • Manual
  • Browse

The Manual mode provides the following options:

Path

The Path field tells Cribl Edge to discover the files within the path (a directory) that you specify, down to the Max depth.

Allowlist

The Allowlist field supports wildcard syntax, and supports the exclamation mark (!) for negation. For example, you can use !*cribl*access.log to prevent Cribl Edge from discovering its own access log. The default filters are */log/* and *log.

Click any file to see a representation of the lines it contains. To restrict how much data is displayed, you can use the search field or time picker on the Search tab.

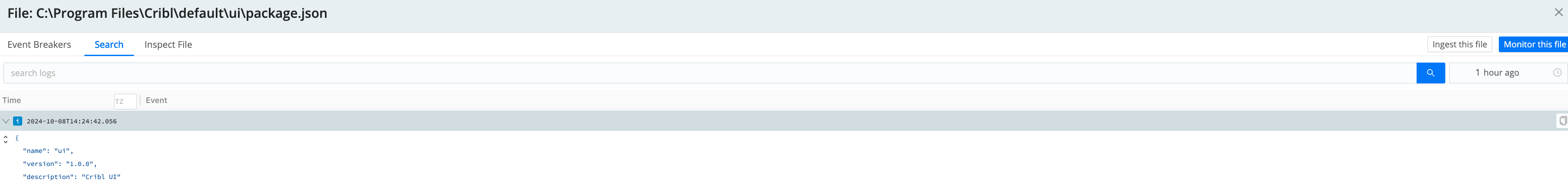

Search tab
Search tab

If the representation of events shown on the Search tab isn’t ideally suited to the file’s contents, you can use the Event Breakers tab to refine it.

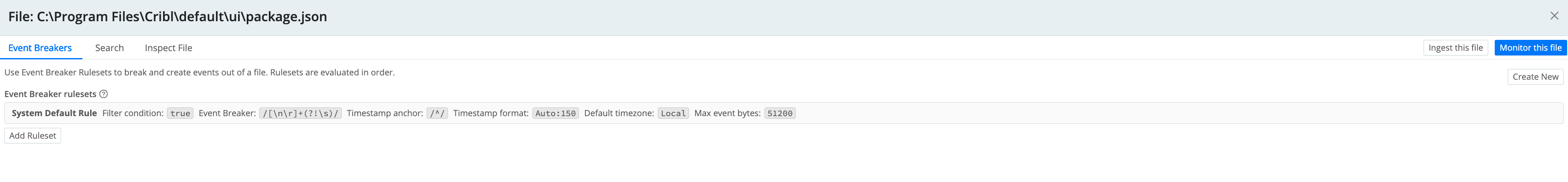

Event Breakers tab
Event Breakers tab

Max Depth

The Max depth field is empty by default. Cribl Edge will search subdirectories, and their subdirectories, downward without limit.

If you enter 0, Cribl Edge will discover only the top-level files within the specified path. If you specify 1, Cribl Edge will discover files one level down from the top. Follow this pattern to specify the depth you want.

Monitor Files

The Monitor Files button opens a New File Monitor modal prefilled with the discovery mode, path, max depth, and allowlist entries specified on the Files tab.

Monitor

Click a file’s Monitor button to configure your File Monitor Source to generate events from the file’s lines or records.

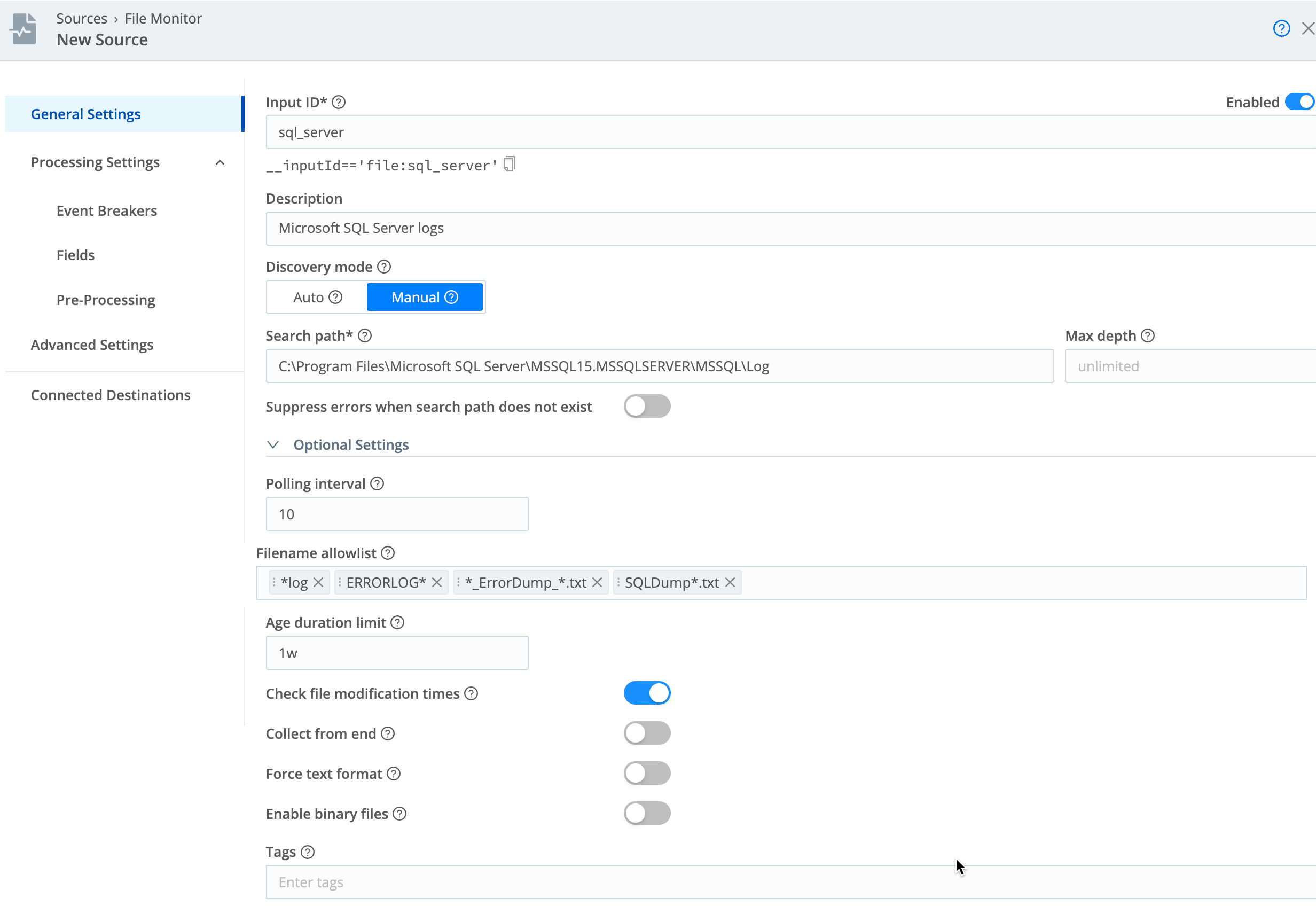

New File Monitor modal
New File Monitor modal

The Monitor feature automatically prepopulates the modal with the following settings configured on the Files tab:

  • Search path
  • Discovery mode: Defaults to Manual for Windows.
  • Max depth
  • Filename allowlist

Note that the Connected Destinations section defaults to QuickConnect, Cribl Edge’s graphical UI. In the Connected Destinations section, you can select a Pipeline or Pack and a Destination. Otherwise, when you save, you’ll be routed to the Collect page to set up your connections via QuickConnect.

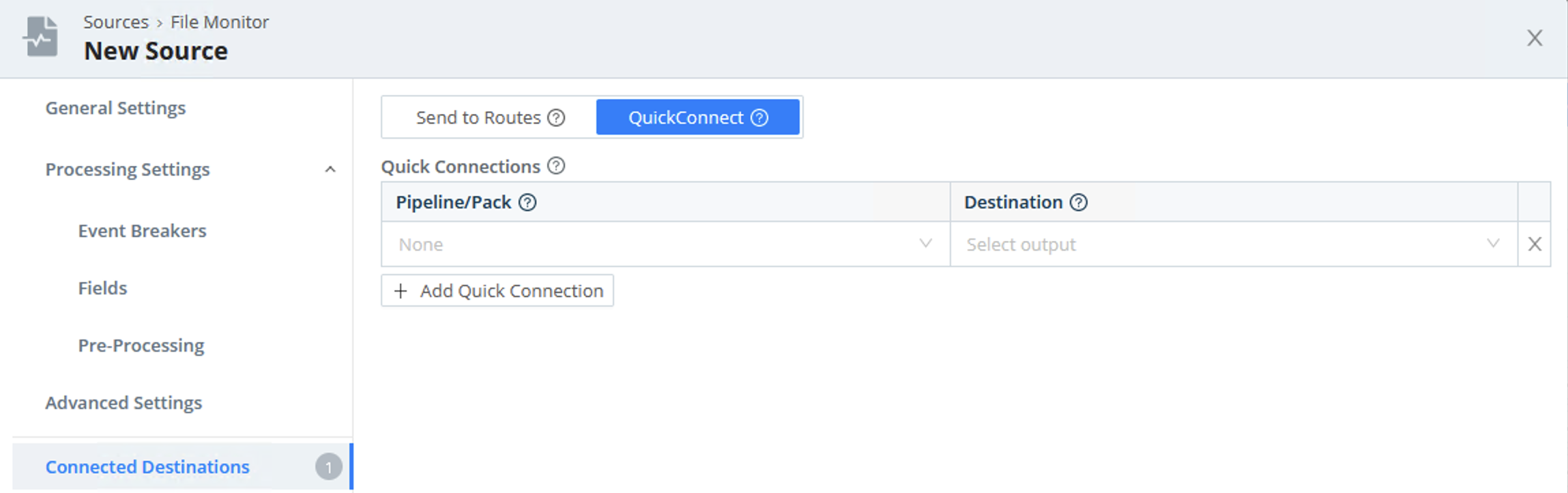

Connected Destinations
Connected Destinations

For details about making these connections, see File Monitor and QuickConnect.

Collect page
Collect page

Ingesting a File

To configure options for how and where to send file contents, use the Ingest file modal.

You have two options:

  • Send directly to a configured Destination via QuickConnect (the default).

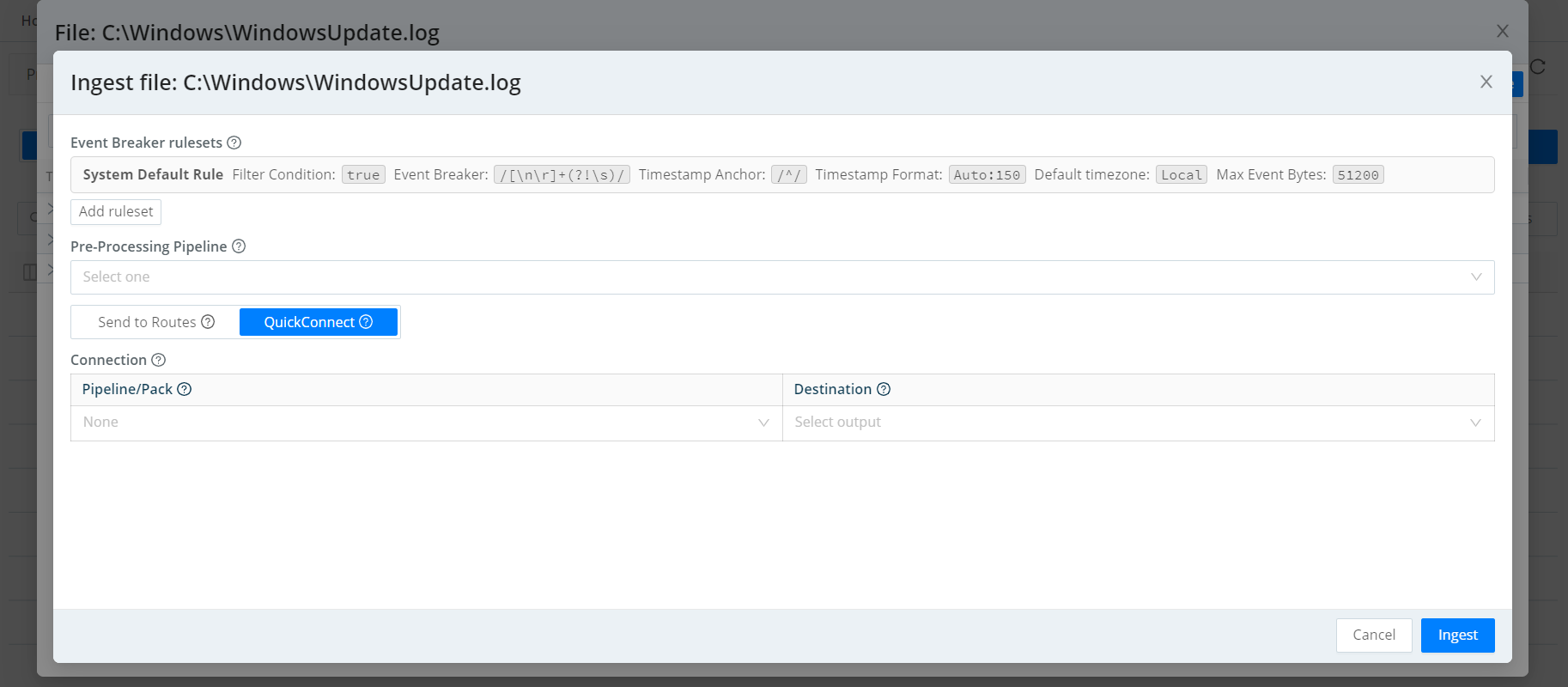

Ingest file via QuickConnect
Ingest file via QuickConnect
  • Send to Routes through (an optional) Pre-Processing Pipeline.

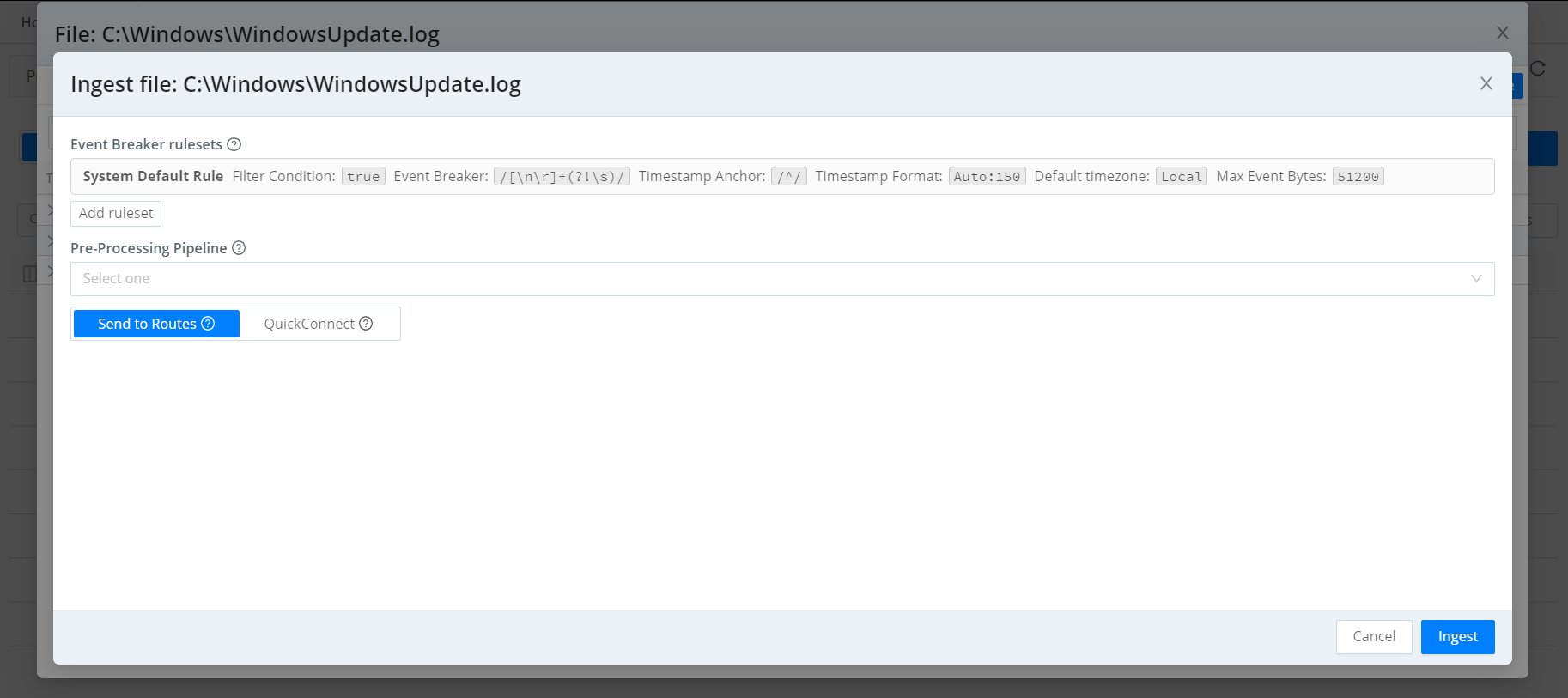

Ingest file via Routes
Ingest file via Routes

You can configure Event Breakers and rulesets for both options.

Exploring Files with Event Breakers

When you click a file in the Files tab, and Cribl Edge shows a representation of the lines that the file contains – how does that work? Cribl Edge is applying a default Event Breaker to format the file.

You are not limited to the default Event Breaker, though. Select the Event Breakers tab, then:

  • To apply a different (existing) Event Breaker, click Add ruleset, then select the desired ruleset from the Event Breaker rulesets drop-down.

  • To create a new Event Breaker ruleset, click Create New. In the resulting New Ruleset modal, proceed as described here. Later, you can reuse the new Event Breaker as part of a Source or a Collector.

    While you create the new ruleset, Cribl Edge pulls the contents of the open file into the Sample File area. Toggle between the In and Out tabs to compare, respectively, the original content and the content as modified by the Event Breaker you’re creating.

Now return to the Search tab – the contents of your chosen file will appear with the new Event Breaker applied.

System State

The System State upper tab provides access to these left tabs:

To display any of the tabs above, you need to configure and enable the System State Source. Also, make sure that the Source’s Collector Settings fields are enabled.

Host Info/Metadata

Cribl Edge can add a  __metadata  property to every event emitted from every enabled Source. The Host Info tab displays the metadata collected for each Edge Node.

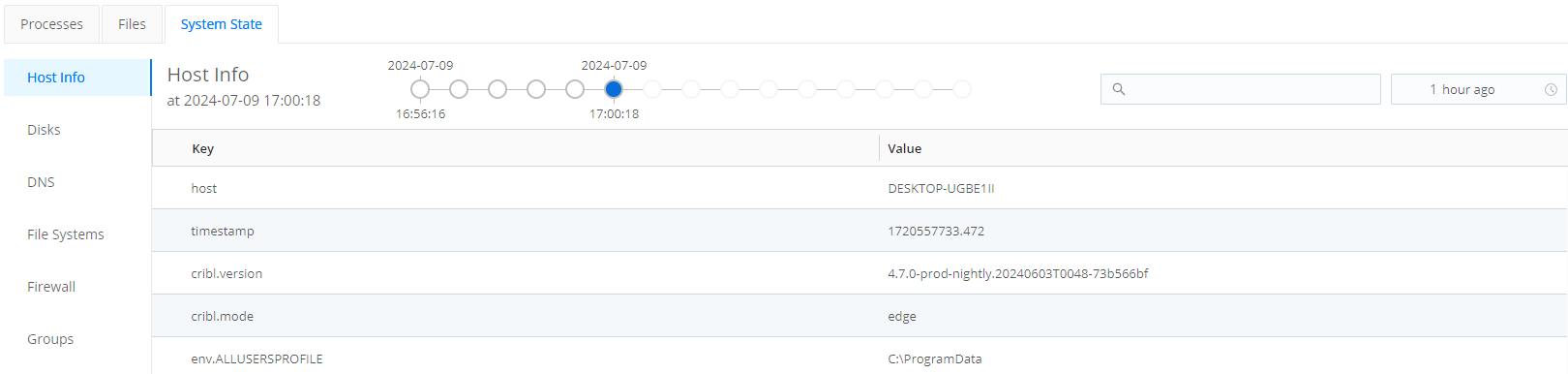

Host info / Metadata collected
Host info / Metadata collected

The metadata surfaced by an Edge Node can be used to:

  • Enrich events (with an internal __metadata field).
  • Display to users as a part of instance exploration.

To customize the type of metadata collected, select Settings > General Settings > Limits > Metadata. Use the Event metadata sources drop-down (and/or the Add source button) to add and select metadata sources.

In Edge mode, all the Event metadata sources are enabled by default.

Set limits
Set limits

The metadata sources that you can select here include:

  • os: Reports details for the host OS and host machine, like OS version, kernel version, CPU and memory resources, hostname, network addresses, etc.
  • cribl: Reports the Cribl Edge version, mode, Fleet for managed instances, tags defined on the instance, and config version.
  • aws: Reports details for an EC2 instance, including the instance type, hostname, network addresses, tags, and IAM roles. For security reasons, we report only IAM role names.
  • env: Reports environment variables.

When these metadata sources are enabled (and can get data), Cribl Edge will add the corresponding property to events, with a nested property for each enabled source.

Some metadata sources work only in configured environments. For example, the aws source is available only when running on an AWS EC2 instance.

If your security tools report denied outbound traffic to IP addresses like 169.254.169.168 or 169.254.169.254, you can suppress these by removing aws from the metadata sources described above. If you have a proxy setup, Cribl recommends adding these IP addresses to your no_proxy environment variable.

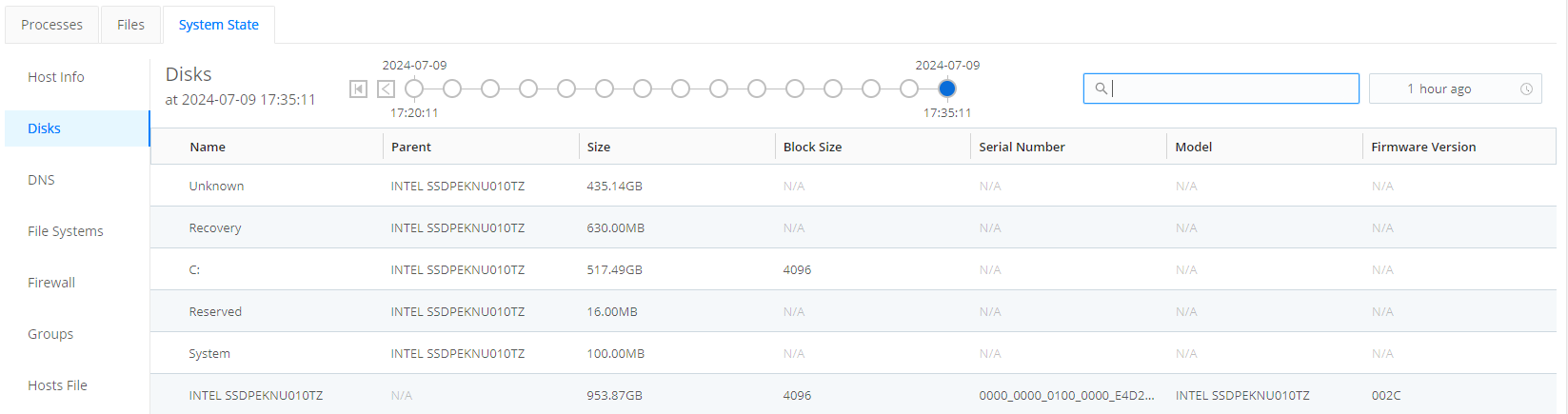

Disks

The Disks tab displays the inventory of physical disks and their partitions on the host system.

Disks tab
Disks tab

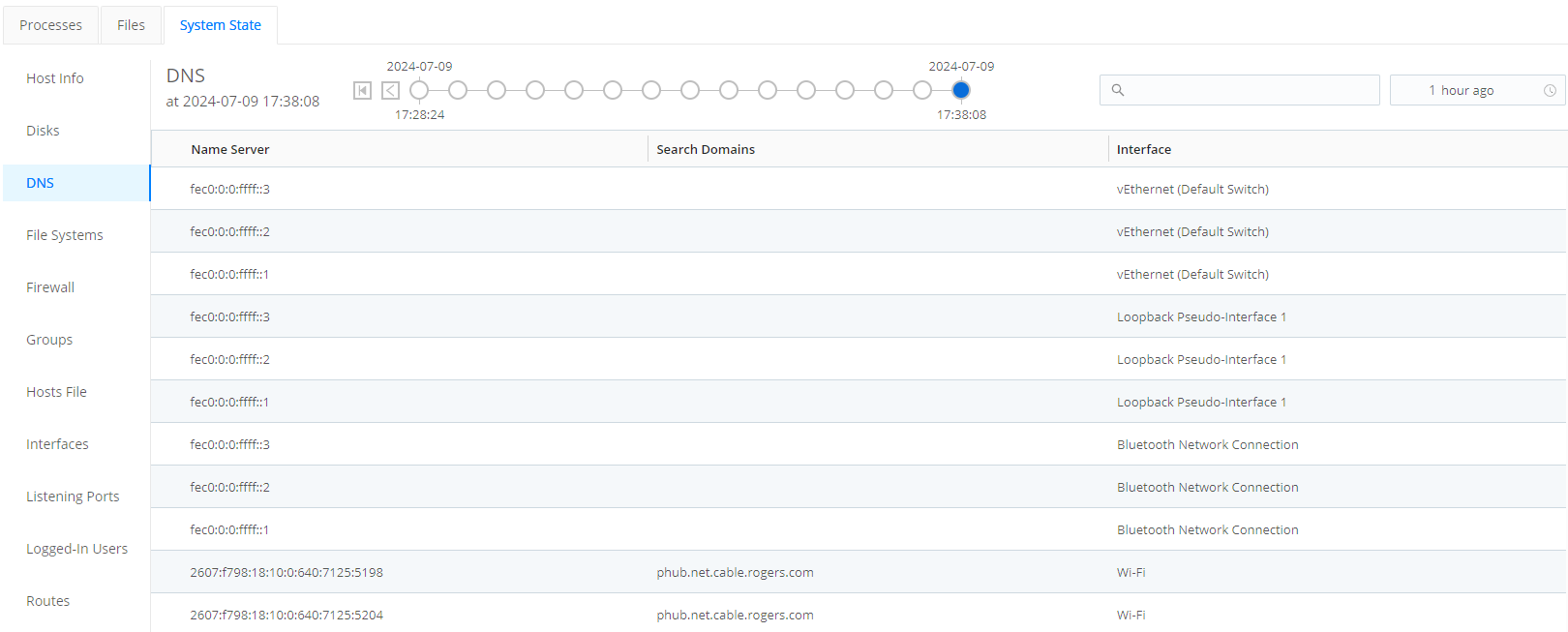

DNS

The DNS tab lists the DNS resolvers and search entries on the host system.

DNS tab
DNS tab

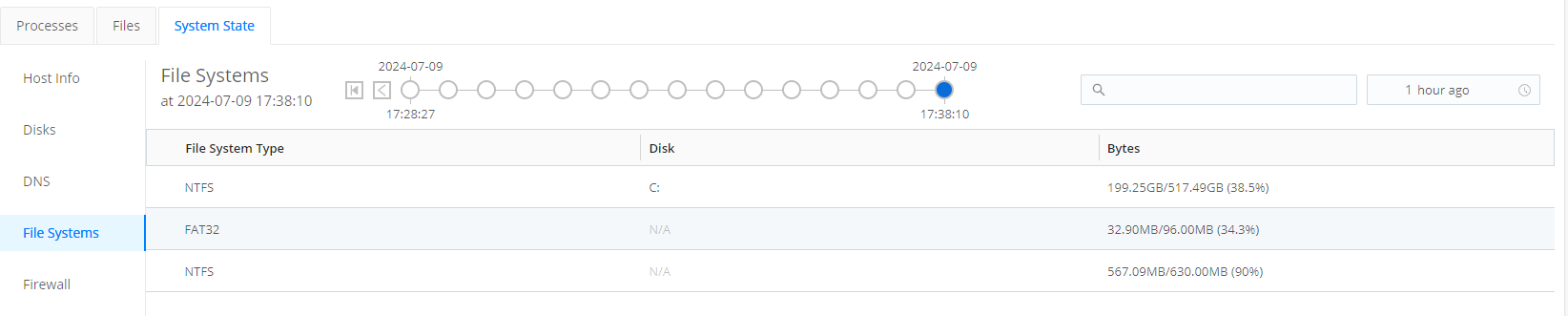

File Systems

The File Systems tab displays an inventory of the mounted file systems on the host system.

File Systems tab
File Systems tab

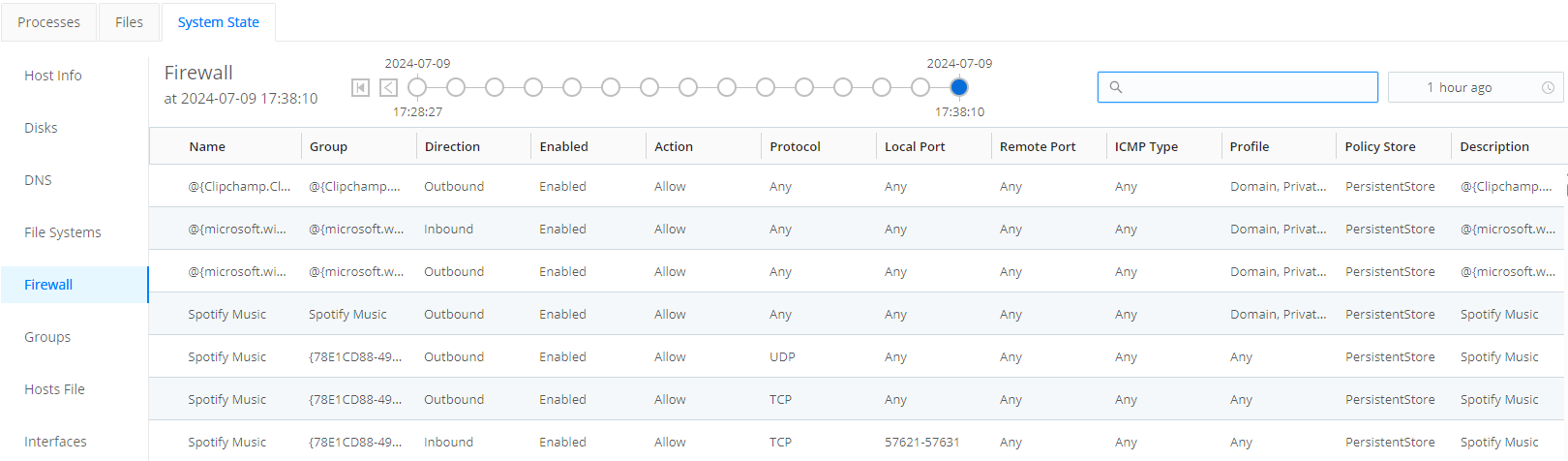

Firewall

The Firewall tab displays a list of the host’s defined firewall rules.

Firewall tab
Firewall tab

Groups

The Groups tab displays a list of local groups including their names, descriptions, and members on the host system.

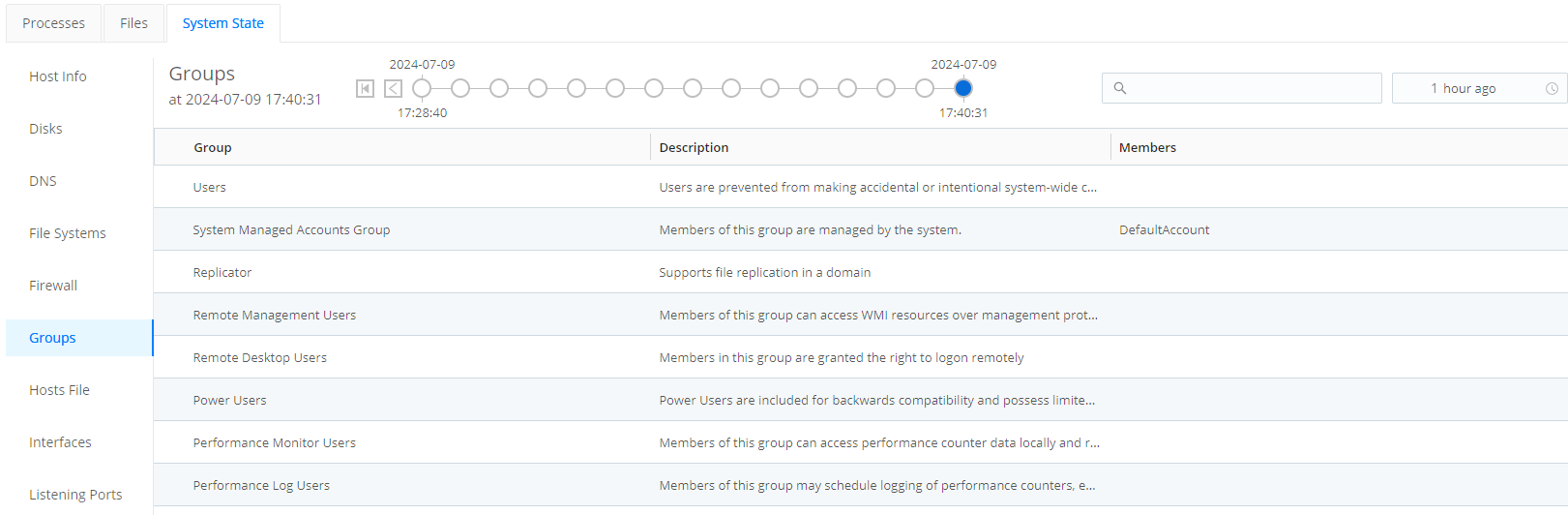

Groups tab
Groups tab

Hosts File

The Hosts File tab displays the current state on the host system.

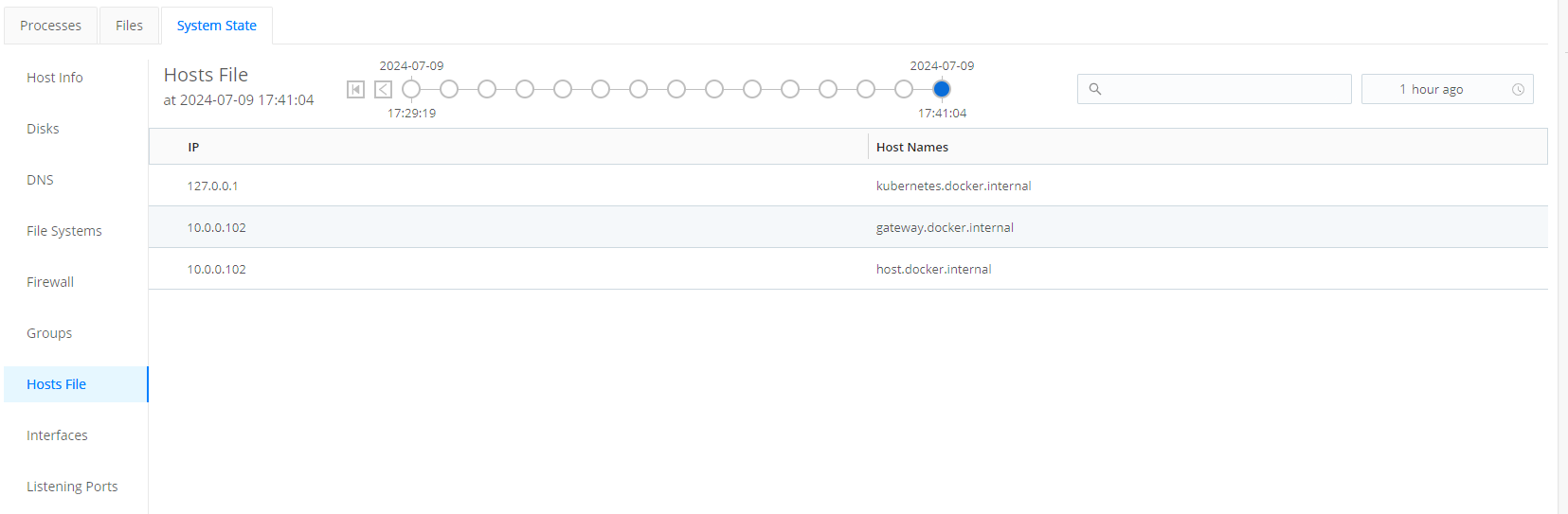

Hosts File tab
Hosts File tab

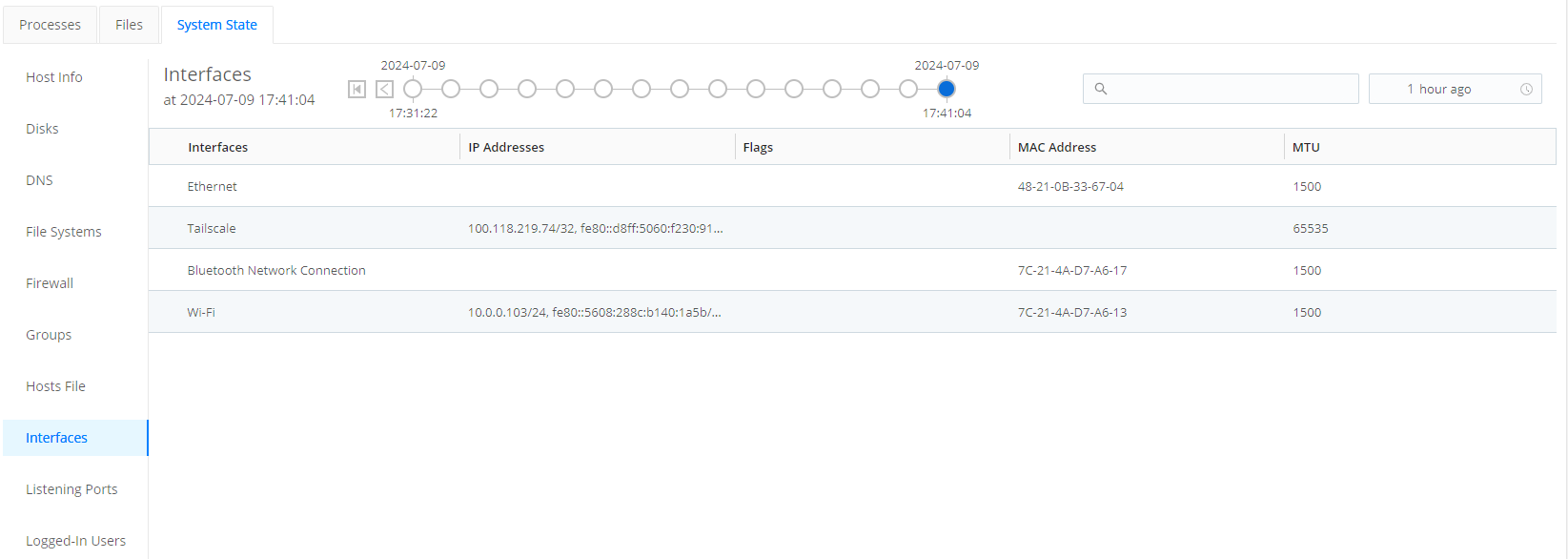

Interfaces

The Interfaces tab displays a list of each of the network interfaces on the host system.

Interfaces tab
Interfaces tab

Listening Ports

The Listening Ports tab displays a list of listening ports and their associated process identifier (pid).

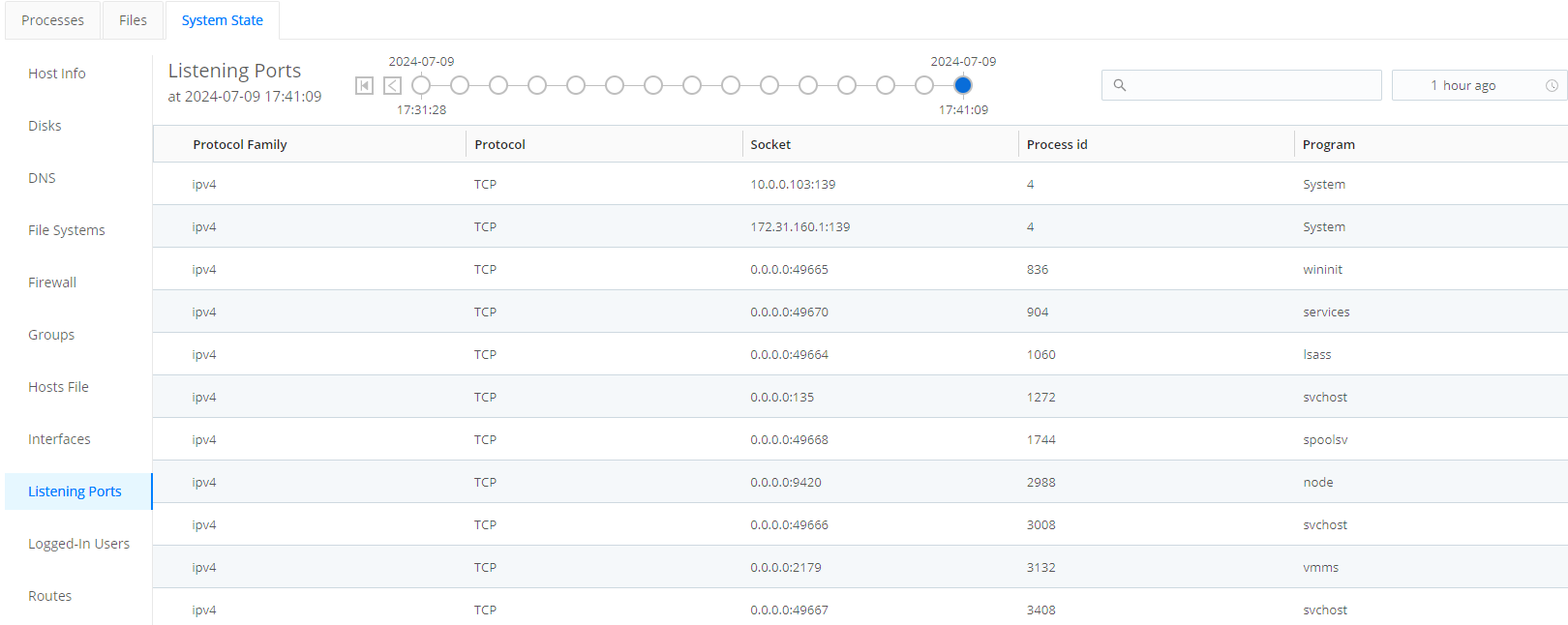

Listening Ports tab
Listening Ports tab

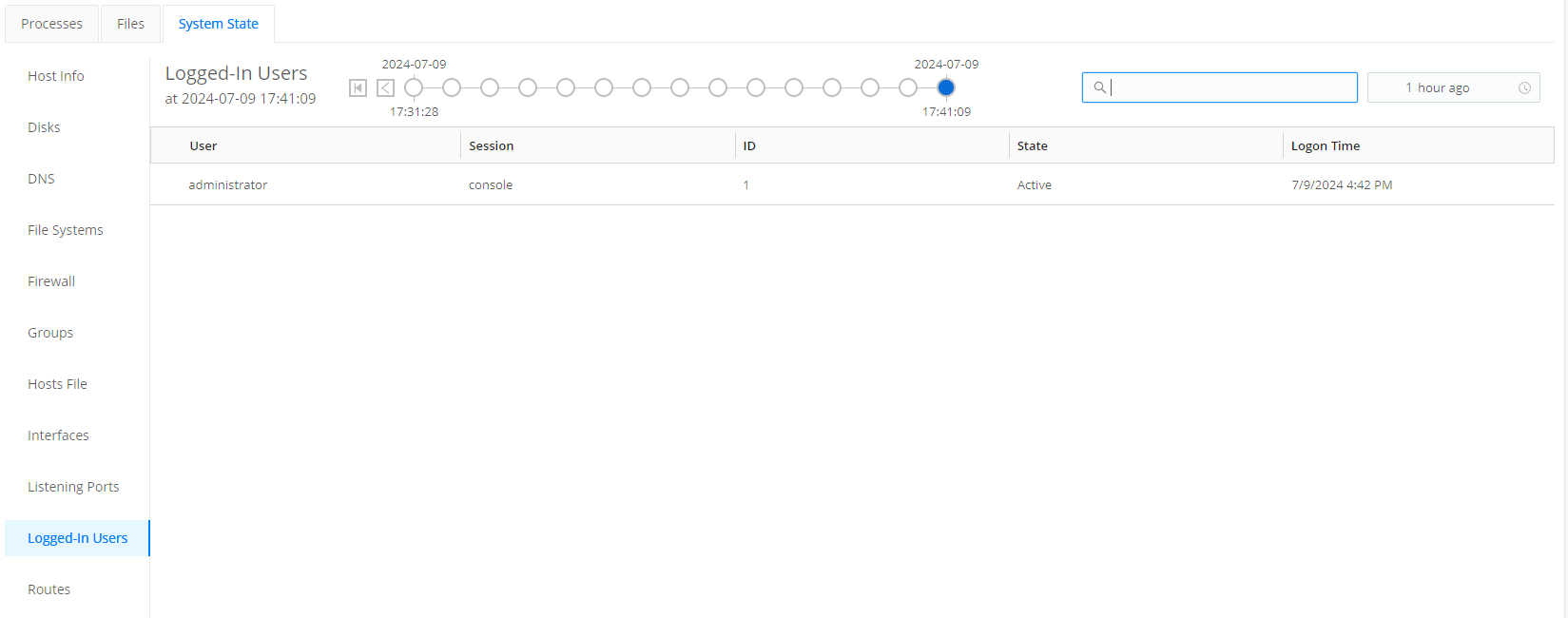

Logged-In Users

The Logged-In Users tab displays a list of currently logged-in users on the host.

Logged-In Users tab
Logged-In Users tab

Services

The Services tab displays a list of each configured service along with their running status.

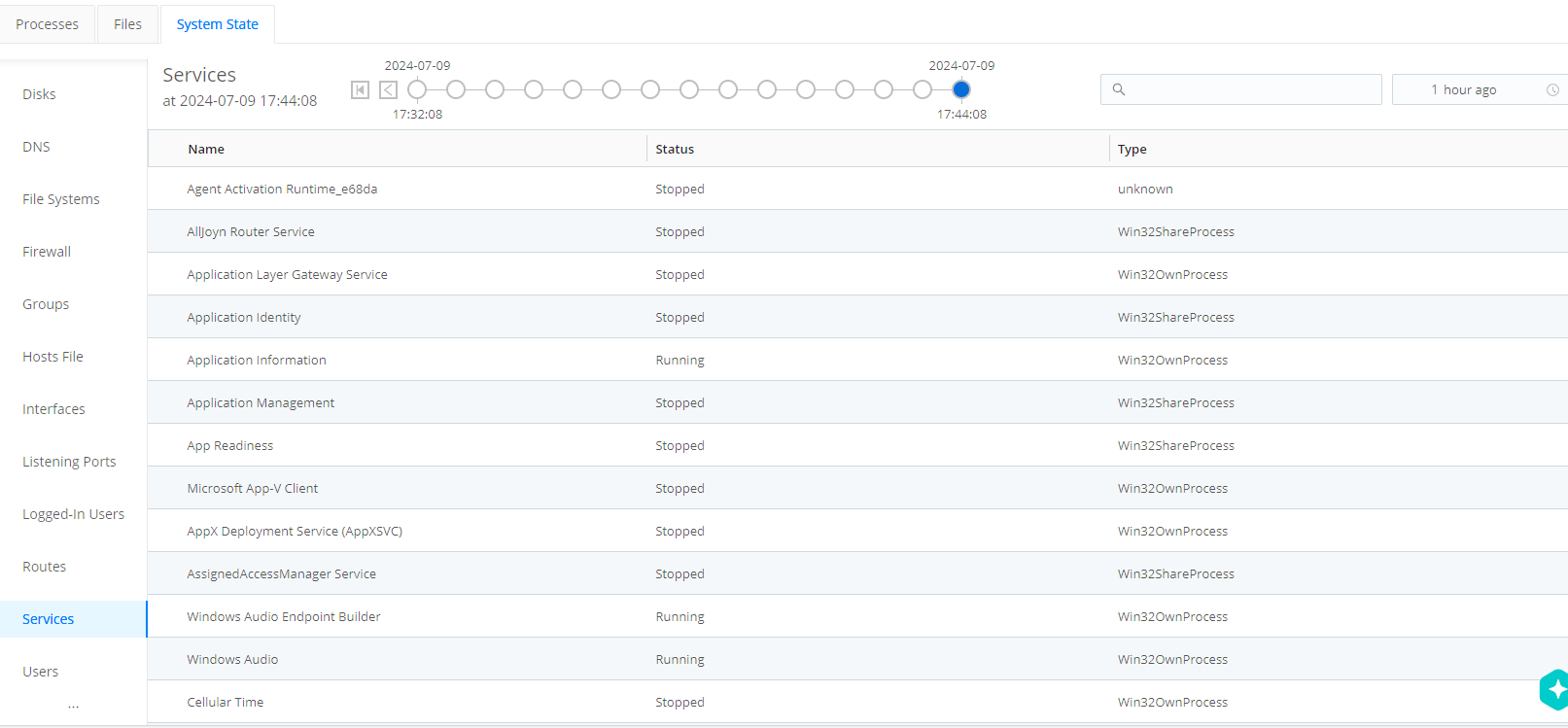

Services tab
Services tab

Routes

The Routes tab displays entries from network routes on the host system.

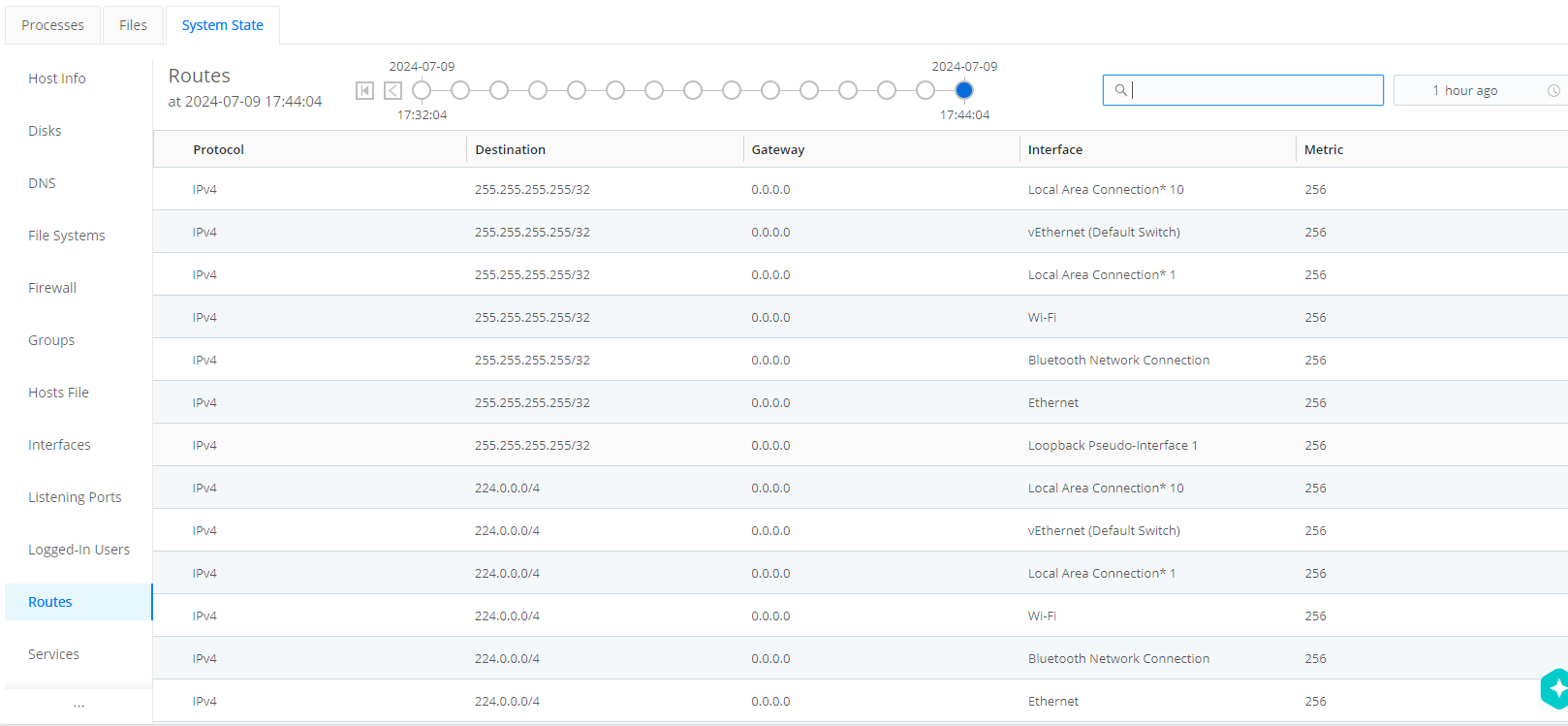

Hosts Routes tab
Hosts Routes tab

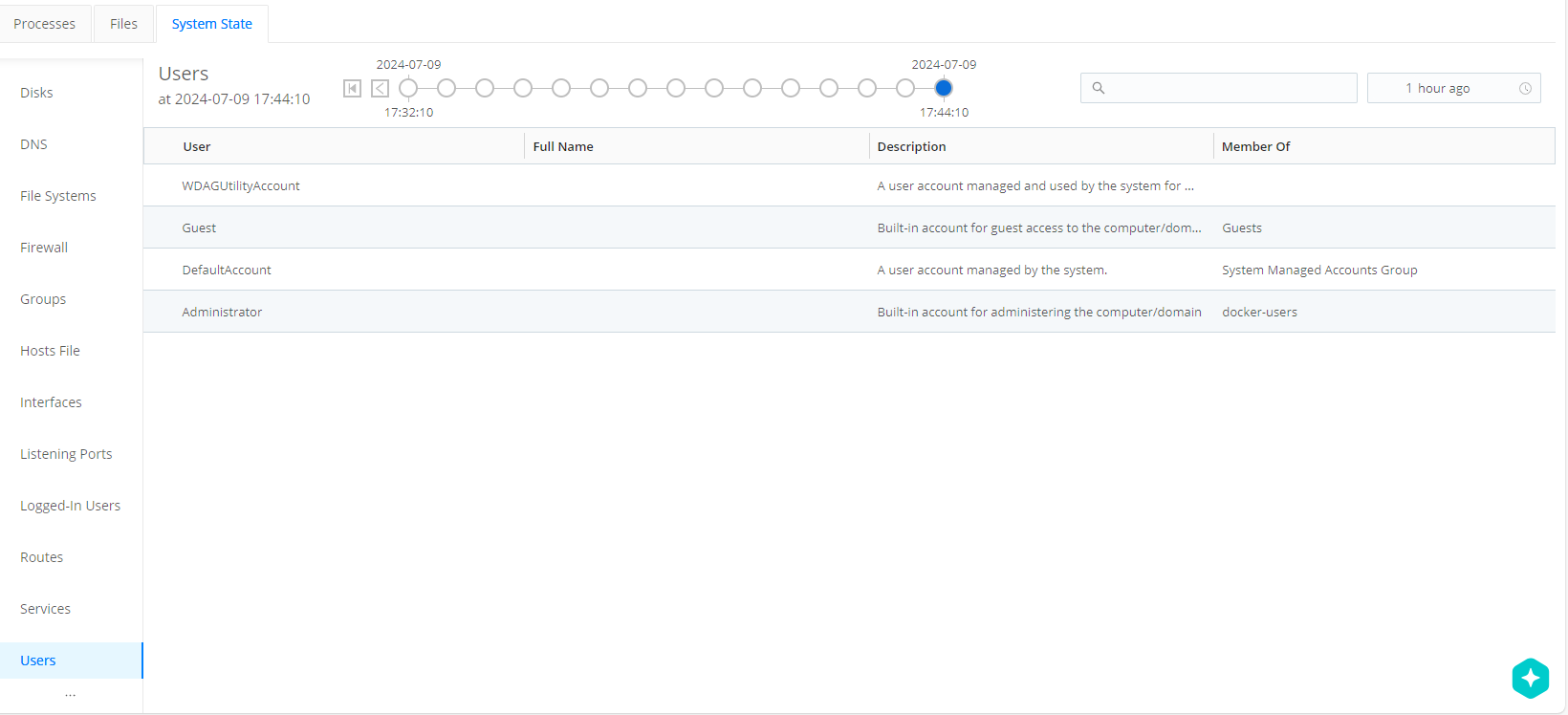

Users

The Users tab displays a list of local users on the host system.

Users tab
Users tab
