Mapping Edge Nodes to Fleets

Learn about Fleet Mappings and how to set up a Mapping Ruleset.

Fleet Mappings enable you to assign Edge Nodes to Fleets by applying specific rules defined in Mapping Rulesets. You can map Edge Nodes into Fleets based on geographical location, environment type, operating system, host, and more. This makes centralized configuration management easier for groups of Edge Nodes, and makes it easy for you to add and remove Edge Nodes from Fleets as your deployment scales.

Access Fleet Mappings

​

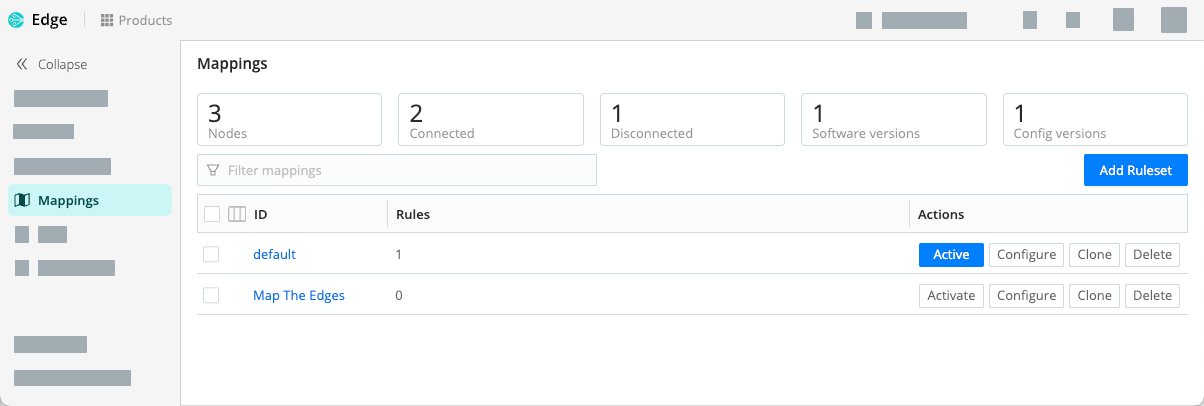

Select Mappings in the sidebar to display status and controls for the active Mapping Ruleset.

This page displays a maximum of 10,000 results.

Mapping Rulesets

​

A Distributed deployment of Cribl Edge starts off with a predefined default Mapping Ruleset.

Within a Ruleset, a list of rules evaluate Filter expressions on the information that Edge Nodes send to the Leader.

The order of rules in a Ruleset matters. The Filter section supports full JS expressions. The Ruleset matching strategy is first-match, and one Edge Node can belong to only one Fleet.

Only one Mapping Ruleset can be active at any one time, although a ruleset can contain multiple rules. The system should contain at least one defined and present Fleet.

Create a Mapping Ruleset

​

To create a Mapping Ruleset:

1. In the sidebar, select Mappings.
2. Select Add Ruleset.
3. Give the New Ruleset a unique ID and select Save.
4. Select Configure and start adding rules with Add Rule.

As you build and define rules, the Preview pane will display how Edge Nodes will map to Fleets with your defined rules.

You must activate a Ruleset before the Leader can use it. To activate it, go to Mappings and select Activate on the required Ruleset. You can also Configure or Delete a ruleset, or Clone a Ruleset if you’d like to work on it offline, test different filters, and so on.

Although not required, you can configure Edge Nodes to send a preferred Fleet name with their payload (found in payload’s cribl.group key). See Mapping Order of Priority for how this ranks in mapping priority.

Mapping Rule Examples

​

See some common Mapping Rule examples.

Map Edge Nodes Based on OS

​

Fleets are not aware of the operating systems their Edge Nodes run on, so they can’t take into account limitations such as platform-specific Sources and Destinations.

When you manage Edge Nodes on different systems, Cribl recommends creating OS-specific Fleets.

To map Edge Nodes to Fleets based on their OS, use the platform filter.

Map Edge Nodes Connected to an Outpost

​

To map Edge Nodes connected to a specific Outpost to a specific Fleet, filter on the outpost.guid or outpost.host fields, for example:

Filter: outpost.host === '5ab6c676be6a'.

Map Edge Nodes Based on Tags

​

You can use tags assigned to Edge Nodes to map specific Nodes to a Fleet.

To map Edge Nodes that have a specific tag to a Fleet, filter on the cribl.tags field, for example:

Filter: cribl.tags.includes("WinLaptop")

Complex Edge Node Mappings

​

The mapping filter supports JS expressions and lets you string together more complex filters.

For example, let’s assume that you want to define a rule for all hosts that satisfy this set of conditions:

• IP address starts with 10.10.42, AND Edge Node has more than 6 CPUs, OR:
• CRIBL_HOME environment variable contains DMZ.

Filter: (conn_ip.startsWith('10.10.42.') && cpus > 6) || env.CRIBL_HOME.match('DMZ').

Mapping Order of Priority

​

Priority for mapping to a Fleet is as follows: Mapping Rules > Fleet (cribl.group) sent by Edge Node > default_fleet Fleet.

• If a Filter matches, use that Fleet.
• Else, if an Edge Node has a Fleet defined, use that.
• Else, map to the default_fleet Fleet.

Additional Metadata

​

Edge Nodes can pass additional metadata to the Leader when Edge is connected to an AWS EC2 instance or running in a container.

Additionally, Cribl Edge Nodes will surface the following metadata from your AWS instance when the data is available:

• Security Groups
• Identity, including Account ID and Instance ID
• Roles
• Tags
• Public IPv4
• Hostname

Find Edge Nodes Running in a Container

​

Edge Nodes running in a container report additional metadata about the container to the Leader. This helps you quickly identify which of your Edge Nodes are running in a container from the Leader UI and map them to the appropriate Fleets.

When Cribl Edge is running in a container, you will see the hostOs property in events collected by the System State Source. This object will contain properties about the container when they’re available, such as:

• arch
• cpu_count
• cpu_speed_mhz
• cpu_type
• interfaces
• memory
• platform
• release
• hostname
• timezone

From the Mappings menu, you will also see the hostOs property in the Edge Node info panel. This object will include the id, addresses, and version of the container when available.

interfaces is a set of key-value pairs that contain an array of CIDR values.

Collect AWS EC2 Instance Tag Metadata

​

If Cribl Edge is connected to an AWS EC2 instance, you will see metadata for AWS instance tags in the Mappings tab. You can use tags to map EC2 Nodes to the correct Fleet.

For Cribl Edge to obtain tags, you must allow access to tags in the EC2 instance metadata.
