Add the Cribl Guard Function to Pipelines

In Cribl Stream, the Cribl Guard Function allows you to dynamically scan incoming data for sensitive fields like personally identifiable information (PII) and then obfuscate those events in a Pipeline. This Function helps you identify sensitive data in your data streams and prevent it from being exposed in downstream analytics systems whose primary users don’t need PII access.

Use this Function to:

• Reduce PII in your data: and thereby decrease your risk of legal risk in the event of a data breach.
• Responsibly handle sensitive data: in highly regulated industries like finance, healthcare, law firms, and technology.

The Cribl Guard Function is not available in on-prem instances of Cribl.

How the Cribl Guard Function Works

​

The Cribl Guard Function processes data in the following order:

1. Filter: Searches events that match the JS filter and that are located within the Apply to fields and skips the Fields to ignore. Applies the rules in the selected scanning ruleset(s).
2. Scan: Looks for sensitive data in the matching filter and rules.
3. Mitigate: Applies mitigation to sensitive data based on the rules in your ruleset. For example, the Default ruleset redacts sensitive data values.

You can add the Cribl Guard Function to any Pipeline to manually scan incoming data streams. We recommend adding the Cribl Guard Function in your Post-Processing Pipeline.

Pipeline Recommendations for the Cribl Guard Function

​

There are no hard constraints around where in your Pipeline you add the Cribl Guard Function. However, there are considerations we suggest you take into account.

• We strongly recommend that you only use the Cribl Guard Function in one of your Pipelines (Post-Processing is our formal recommendation). This is because Cribl Guard is billed based on GB of data scanned. You could inadvertently be double- or triple-charged (or more) if you use the Cribl Guard Function in multiple Pipelines that scan the same set of data.

Post-Processing Pipeline

​

We highly recommend configuring the Cribl Guard Function in a Post-Processing Pipeline. Here’s why:

• With the Cribl Guard Function in your Post-Processing Pipeline, sensitive data is mitigated before Cribl sends it to your Destinations. This means sensitive data is much less likely to reach your Destinations, reducing the risk of personal data leaks.
• You’ll avoid accidentally incurring multiple charges on processed data. Cribl Guard charges based on how many GB of data it scans, so by placing the Guard Function in your Post-Processing Pipeline, you only scan data that you’re certain you want to send to a Destination.
• Cribl Guard scans data in its final form: after data goes through the JavaScript filter in the Pipeline, is enriched, adjusted, enhanced, and so on. This ensures you’re scanning the smallest subset of events.

Of course, by placing the Cribl Guard Function in a Post-Processing Pipeline, there is the possibility that Cribl might scan the same data multiple times as it routes to different Destinations.

Pre-Processing Pipeline

​

By configuring the Cribl Guard Function in your Pre-Processing Pipeline, you can quickly identify Sources that might be unreliable or untrustworthy. This enables you to filter and mask data as soon as Cribl Guard identifies it.

However, it’s not possible to keep unredacted and redacted data separate when you use Cribl Guard in a Pre-Processing Pipeline. Also, you might end up scanning (and paying for) data that you discard later in the Pipeline.

Configure the Cribl Guard Function

​

1. Add a Source and Destination to begin generating data. See Integrations for more information.
2. Add a new Pipeline or open an existing Pipeline. Add or capture sample data and test your Pipeline as you build it. See Pipelines for more information.
3. At the top of the Pipeline, select Add Function and search for Cribl Guard, then select it.
4. In the resulting Cribl Guard Function modal, configure the following general settings:
   • Filter: A JavaScript filter expression that selects which metrics to process through the Function. Defaults to true, meaning it evaluates all events.
   • Description: A brief description of how this Function modifies your metrics to help other users understand its purpose later. Defaults to empty.
   • Final: When enabled, stops data from continuing to downstream Functions for additional processing. Default: Off. Toggle Final on if Cribl Guard is the last Function in your Pipeline.
   • Scanning Rulesets: The Rulesets in this Pipeline that scan incoming events for sensitive data. You can add as many Scanning Rulesets as you like to a Pipeline.
     • Ruleset ID: The unique ID of the ruleset used in this scan.
     • Mitigation Expression: Content that matches the scanning rule will be replaced by a new value defined in this mitigation expression, which can be either a JavaScript expression (that manipulates the data) or a literal (like ‘REDACTED’). You can use capturing groups to isolate specific parts of matching text, then reference them in your mitigation expression as g1, g2, and so on.
     • Enabled: You can enable or disable scanning rulesets within a Pipeline.
   • Apply to fields: Cribl Guard will only scan data that is included in the fields you designate here.
   • Fields to ignore: Cribl Guard will not scan data that is included in the fields you designate here.
   • Advanced Settings
     • Add fields: Enter fields that Cribl Guard will add to mitigated events. _sensitive is true by default, which means it will appear in event data when sensitive fields have been mitigated.
     • Add matched rulesets: When enabled, Cribl adds an internal field called __detected to the incoming event. This field will contain the ruleset ID or array of IDs that match the sensitive data. For example, __detected: rule1 or __detected: [rule1, rule2 ….ruleN].
5. Use the Simple Preview or Full Preview pane combined with a sample data file to test that your Function is accurately scanning, filtering, and mitigating any sensitive data.
6. Send the newly configured Pipeline Function to your Stream Workers using Commit & Deploy.

Cribl Guard uses rulesets, rather than relying on rigid pattern matching, which results in faster, more accurate data processing. You can use a combination of out-of-the-box rulesets and custom rulesets. To see all the Cribl Guard rulesets included out-of-the-box, go to the Cribl Guard Rulesets reference documentation.

Event Fields and Internal Fields

​

There are four fields that the Cribl Guard Function can add to your events:

• _sensitive: Included by default in Advanced Settings, this field is added to mitigated event data.
• __detected: When Add to matched rulesets is enabled, your events will contain this internal field.
• __potential_sensitive: This internal field is added to event data when a data string matches the Pattern to match expression but does not match an anchor term. You can then manually adjust the match pattern or anchor terms to mitigate the data if it is sensitive.
• __potential_sensitive_data: This internal field shows you which events are potentially sensitive.

You must enable Show internal fields in the preview settings to see the __potential_sensitive and _potential_sensitive_data fields in your data preview. See Data Preview Advanced Settings for setup steps.

Usage Examples

​

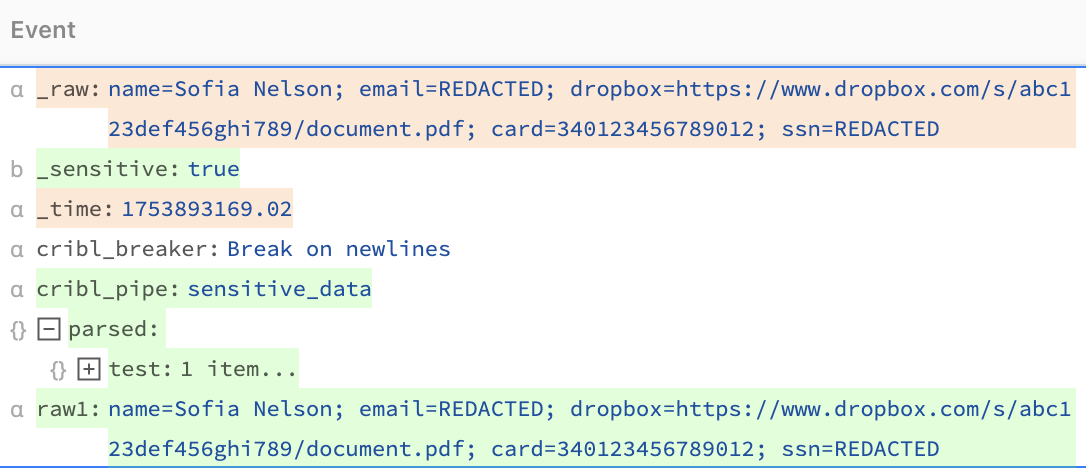

A common usage example for Cribl Guard is to redact plain text as replacement expressions for the sensitive data. For example, this Pipeline uses the Default ruleset, which applies REDACTED as the mitigation expression to matching sensitive data.
