Home / Guard/Create and Manage Cribl Guard Rules

Create and Manage Cribl Guard Rules

Cribl Stream ships with a Guard Rules Library that contains a set of pre-built regular expression (regex) patterns for identifying sensitive data in your data streams. When you add custom Sensitive Data Rules, they will also appear in this library. The library serves as an easily accessible and searchable repository of sensitive data rules and their regex patterns.

To access the library, select Worker Groups from the sidebar, and choose a Worker Group. Then, on the Worker Groups submenu, select Processing > Knowledge > Guard Rules.

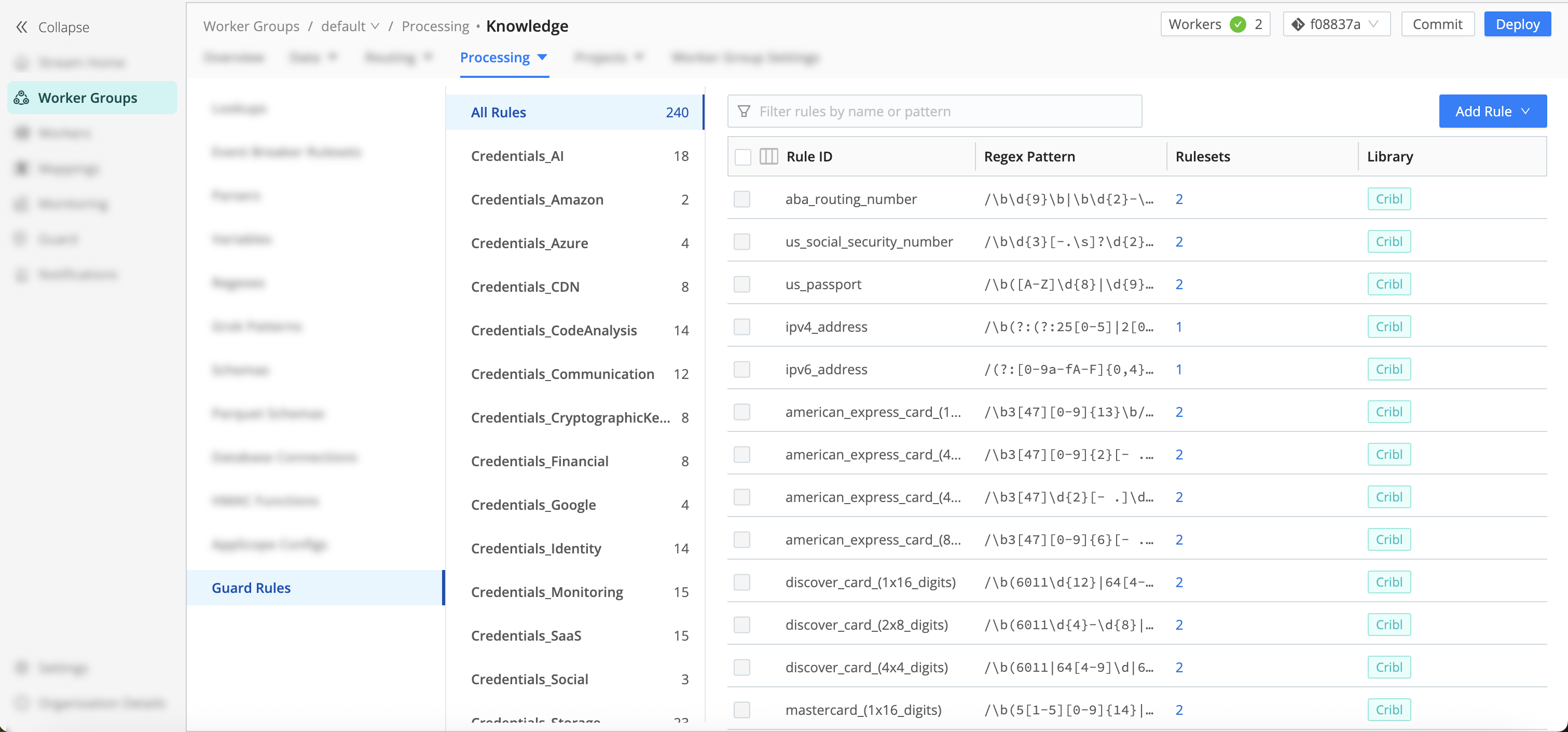

Cribl Guard rules Knowledge library
Cribl Guard rules Knowledge library

Understand Cribl Guard Rules
​

Cribl Guard comes out-of-the-box with preconfigured rulesets that you can’t edit or delete. You can identify these by the Cribl label on the rule in the Knowledge library.

Custom rules are labeled as such, and are created by users in your Workspace. You can edit and delete custom rules. By default, the Cribl rules appear first in the list of rules. You can filter by Custom to view and edit the rules you created. See Cribl Guard Rulesets for more information.

A good way to create a custom rule is to clone a Cribl rule and then edit its details, adapting them to your specific usage requirements.

Add and Delete Cribl Guard Rules in the Knowledge Library
​

In the Knowledge library, users with an Editor-level or higher role can add and edit Cribl Guard rules. When you edit existing Guard rules, the changes are automatically propagated to all applicable rulesets after you commit and deploy. You can either add rules manually or use Cribl Copilot as an assistant to create your rules.

Once you have created a rule, you can verify it works as expected by selecting a sample file and events.

Add a Cribl Guard Rule Manually
​

To create custom Cribl Guard Rules:

  1. Navigate to a Worker Group, then select Processing > Knowledge.

  2. Select Guard Rules from the Knowledge object menu.

  3. Select Add Rule and enter details in the New Rule form:

    FieldDescription
    Rule IDA unique identifier for this rule.
    DescriptionAn optional description of what the rule scans for.
    Pattern to matchThe regex used to match data in your events. If you only add a regex, matching data is considered a potential match. Matches are highlighted in green in the sample events panel. Add anchor terms to improve sensitive data matching accuracy.
    Anchor termsText that you can add to provide additional context, which helps improve the accuracy of data matching and limits unnecessary data redaction. For example, adding the anchor terms cc, creditcard, and visa could help identify a 16-digit number string as a credit card instead of a similar, 16-digit UUID. Matches are highlighted in purple in the sample events panel.
    Add to rulesetsOne or more rulesets in which to include this rule.

  4. Validate your new rule by using sample data and events.

  5. Select Save to start using your rule in Pipelines.

Cribl Guard will evaluate your existing rulesets and attempt to map the new rule into a ruleset where logical. Otherwise, Cribl Guard will create a new ruleset for the rule.

Add a Cribl Guard Rule with Copilot AI Rule Builder
​

Cribl Copilot AI Rule Builder is an interactive, AI-powered assistant. You must enable Copilot in order to use it to create Cribl Guard rules. Go to Enable or Disable Cribl Copilot for details.

To use Cribl Copilot to help you create rules:

  1. In Processing > Library, select Add Rule.
  2. Select Add Rule with Copilot from the drop-down.
  3. Describe the data you want to mask in your logs. Test the regex pattern and context words that Copilot suggests using sample events.
  4. Request changes to iterate and improve the final rule.
  5. Select Save when you’re finished iterating.

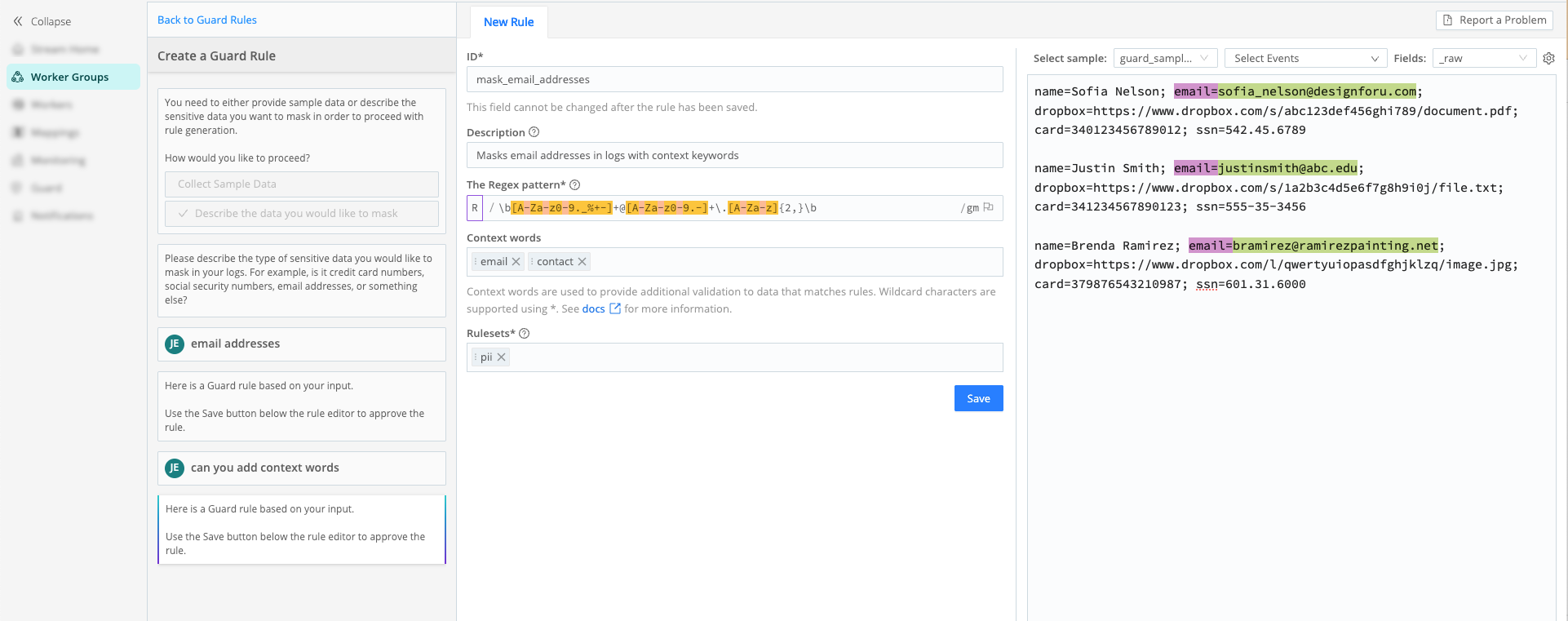

Creating a Cribl Guard rule with Cribl Copilot
Creating a Cribl Guard rule with Cribl Copilot
