Cribl Lake Direct Access

Ship your data straight into Cribl Lake, bypassing Cribl Stream.

You can use the Direct Access option to archive certain data directly to Cribl Lake. This option bypasses routing inbound data through Cribl Stream. Once your data is integrated with Cribl Lake, Cribl Stream and Cribl Search can access it as a Lake Dataset.

Requirements for Direct Access
​

Direct Access is available for Splunk Cloud DDSS (Dynamic Data Self Storage) data. To set up this integration, you must create a new DDSS index.

Your Cribl.Cloud Organization must be in the same AWS Region as your Splunk Cloud Platform environment.

See also Limitations below.

Configure DDSS Direct Access
​

To configure this integration, you’ll work back and forth between Splunk Cloud and Cribl Lake to share linking identifiers. The following subsections list the major steps, in sequential order. Keep your eyes on the shore!

Create Splunk Index and Storage
​

Start in your Splunk Cloud Platform, where you’ll create a new index and corresponding storage details:

  1. Select Settings > Indexes > New Index.

  2. In the Dynamic Data Storage field, select Self Storage.

  3. Select Create a self storage location.

  4. On the resulting Dynamic Data Self Storage page, give your location a Title and (optionally) a Description.

  5. Below the Amazon S3 bucket name field, select the Splunk Cloud ID. Copy it to your clipboard for the next section.

Create Cribl Lake Integration
​

In Cribl Lake, create the integration with your DDSS bucket:

  1. From the sidebar, select Direct Access.

  2. Accept the default Splunk Cloud Self Storage Source, by selecting Next.

  3. In the Splunk Cloud ID field, paste the ID that you copied from Splunk Cloud in the previous section.

  4. Optionally, enter a Description of this Lake integration’s purpose.

  5. From the Region drop-down, select the AWS Region of your Splunk Cloud Platform.

  6. Select Next.

  7. Copy the Cribl Lake bucket name to your clipboard for the next section.

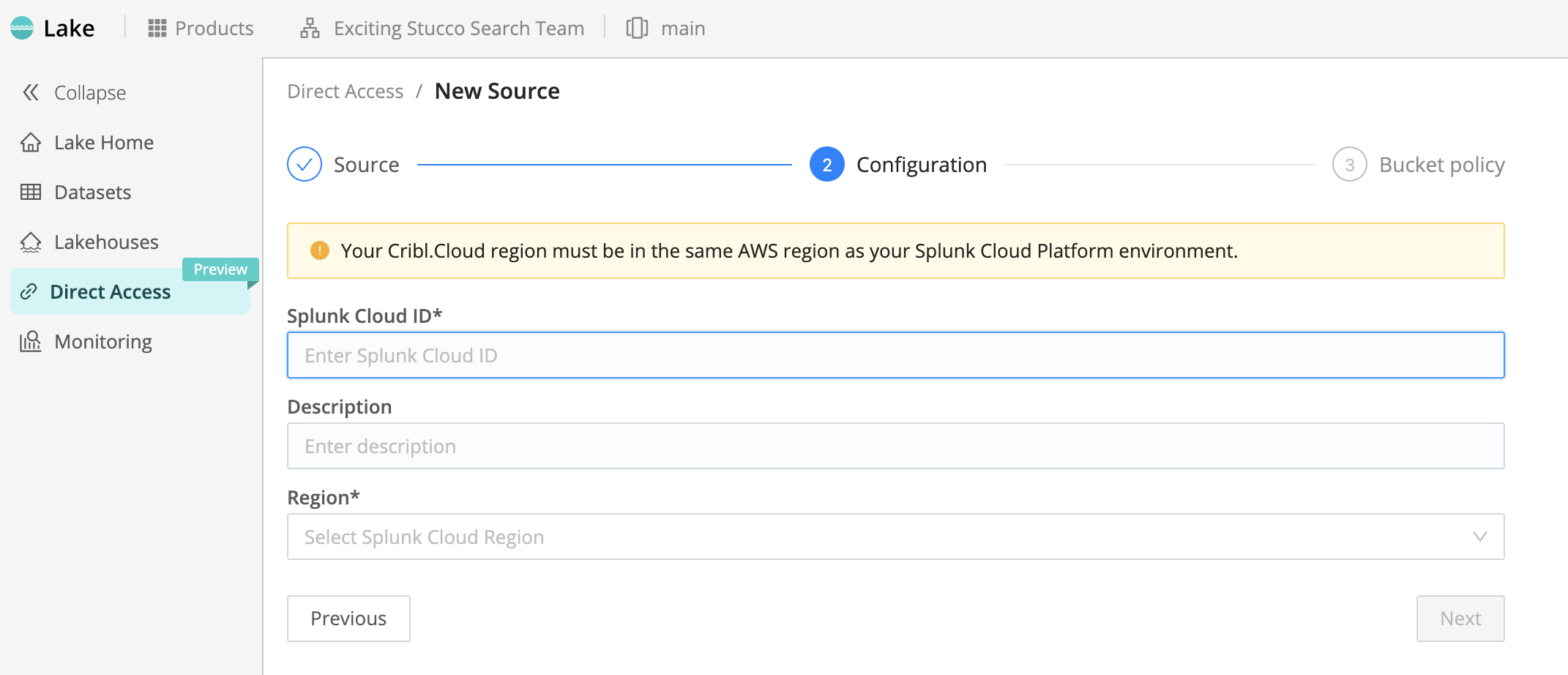

Configuring Cribl Lake matching bucket
Configuring Cribl Lake matching bucket

Next, return to your Splunk Cloud Platform, to point this environment to the bucket you’ve created in Cribl Lake:

  1. In the Amazon S3 bucket name field, paste Cribl Lake bucket name you copied in the previous section.

  2. Select Generate to generate a bucket policy.

  3. Copy the resulting bucket policy to your clipboard for the next section.

Provision Your Lake
​

Return to Cribl Lake to link your bucket policy and provision the new Lake:

  1. In the AWS S3 bucket policy pane, paste the Splunk Cloud bucket policy you copied in the previous section.

  2. Select Save.

  3. Wait a few minutes for your new Lake to be provisioned.

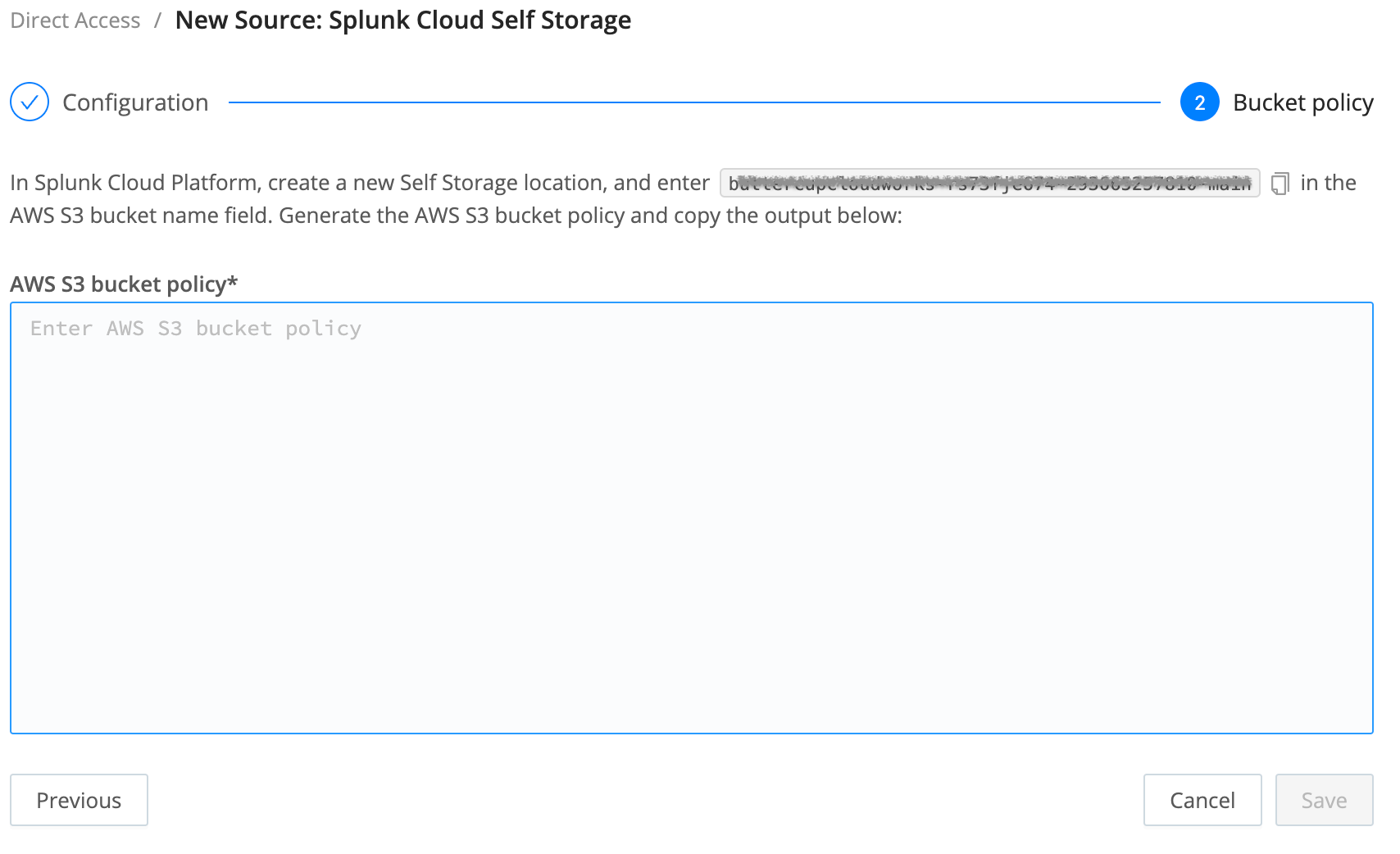

Cribl Lake modal for bucket name and policy
Cribl Lake modal for bucket name and policy

Test and Submit the Connection
​

After provisioning is complete in Cribl Lake, test the connection from Splunk Cloud:

  1. In the Self Storage Locations dialog, select Test.

Splunk Cloud will write a 0 KB test file to the root of your S3 bucket, to verify that Splunk Cloud Platform has permissions to write to the bucket.

  1. If you see a success message, select Submit to finish linking your DDSS location to Cribl Lake.

  2. If the test fails, see Troubleshooting Direct Access.

Create Cribl Lake Dataset
​

Once you’ve verified the connection from Splunk Cloud, your final setup step is to create a Lake Dataset to contain your data. Follow the steps in Create a New Lake Dataset, being careful to add these specific requirements to handle DDSS data:

  • Give the Dataset an ID that exactly matches the Splunk index name you assigned in Create Splunk Index and Storage earlier on this page. (Otherwise, you will be unable to search or replay your data.)

  • Set the Data format to DDSS.

Save your new Dataset, and your Splunk data should begin flowing into it. That’s it!

Limitations of Direct Access
​

A Lake Dataset created and populated via Direct Access is read-only to other Cribl products. So, although both Cribl Stream and Cribl Search can process data from the Dataset, neither product can write to it.

A Lake Dataset created via Direct Access cannot be assigned to a Lakehouse.

Breaking a Direct Access Connection
​

After you link Splunk and Cribl resources, their interdependence means that deleting resources on either side has the following consequences:

  • In Cribl Lake, deleting a Splunk Cloud Self Storage Source means that you will lose all your Splunk data archived here. Also, Splunk Cloud will no longer be able to write to Cribl Lake through this integration. However, this deletion will not affect your data flow and storage within Splunk Cloud.

  • In Splunk Cloud, deleting a Self Storage location that’s linked to a Cribl Lake Dataset means that Splunk Cloud will no longer archive data to Cribl Lake. However, this deletion will not affect your data already stored within Cribl Lake.

  • However, if you cancel your Splunk Cloud account, your Splunk Cloud Self Storage Source in Cribl Lake can still remain intact. This will allow Cribl Stream (Collector) and Cribl Search (queries) to continue reading your Dataset’s current contents. However, no new data can be written to the Dataset.

Troubleshooting Direct Access
​

If Splunk Cloud fails to write the test file to your Lake Dataset, look for the following possible sources of error. Correcting each of these requires re-creating your integration from scratch:

  • Regions mismatched between Splunk Cloud and Cribl.Cloud.

  • Bucket name does not start with the Splunk Cloud ID.

  • Amazon S3 bucket policy not pasted in accurately.
