Build a Search

Learn about query syntax, operators, time ranges, sampling, and more.

A search needs a query and a time range. Queries specify the data to search and run functions and operators from our ergonomic and powerful search language.

Queries contain zero or more operators separated by a pipe |. Data flows, or is piped, from one operator to the next. Events are filtered or manipulated at each operation and then fed into the following operation.

You can think of the data flow as a funnel, where you start out with selected events. Each time the data passes through another operator, it is filtered, rearranged, or summarized. Because the piping of information from one operator to another is sequential, the query operator order is important and can affect both results and performance. At the end of the funnel, you’re left with a refined output.

The following diagram shows how each operation in a query changes search results.

Query Syntax

​

[Statements;] Scope [| Processing [| ... ]]

• Statements - Optional statements that can set query options and assign names to expressions (which allows you to use join or union later in the query). Each statement needs to end with a semicolon (;).
• Scope - Define Datasets and use the cribl operator to specify the events to search. Wildcards * represent one or more characters. For example, source=/*/foo.log "error" returns lines from /*/foo.log containing the term error.
  • Dataset syntax: dataset=DatasetID. E.g, dataset=myCDNLogs.
    • Data from different Datasets can be easily combined in a search. For example, dataset=myVPCFlowlogs or dataset=myCDNLogs.
  • The default Dataset is searched when no Dataset is defined.
  • The cribl operator is implicit when an operator isn’t specified. You can stop this behavior by enabling Strict Kusto Mode in the UI Options.
  • The cribl, externaldata, and find operators are used in the scope.
  • The search and timestats operators may be used in the scope.
• Processing - Optional operators that can be used together with context, cribl, statistical, and scalar functions. Use a pipe | between operators.

Every stage of a query can also include Macros (for example, ${MacroID}).

Examples

​

• Find events with error in the cribl_internal_logs Dataset:

  dataset="cribl_internal_logs" "error"

  Copy Run in Cribl Search

• Find and return up to 1,000 logs:

  dataset="cribl_search_sample"
  | limit 1000

  Copy Run in Cribl Search

• Aggregate events by the method field:

  dataset="cribl_internal_logs"
  | limit 1000
  | summarize count() by method

  Copy Run in Cribl Search

• Count the events in each minute, grouping by the method field, from the last 15 minutes:

  dataset="cribl_internal_logs" earliest=-15m method=*
  | limit 1000
  | timestats span=1m count() by method

  Copy Run in Cribl Search

• Merge the events of two different Datasets:

  let query1 = dataset="dataset1" | where x < 10;

  dataset="dataset2"
  | join query1 on commonField

  Copy

Syntax Highlighting

​

Within the query box, the following color coding distinguishes components of your query:

(Dark mode uses lighter shades to reduce contrast.)

Field Names

​

Each event field has a unique name that is used as its reference in a query. Each field contains a key-value pair, where the field name is the key. Field names follow these rules:

• They’re case-sensitive.
• Support letters, digits, underscores _, spaces, dots ., and dashes -.
• Fields containing a special character (spaces, dots, or dashes) require quoting (see below).

Quoting Keywords

​

Field names that are identical to some query language keywords, or have special characters, require quoting when they’re referenced directly by a query:

You can normalize field names that contain separators, using the foldkeys operator.

For example, events from the cribl_internal_logs Dataset have a time field which is a reserved keyword requiring quoting. To reference the field in a query you’d specify it as:

['time']="2023-03-31T12:24:10.770Z"

Similarly, to exclude null fields from the search results, you must bracket and quote the null keyword. To see how this works, let’s start with the following query. Here, the method field has a value of null. We’ll want to remove that field:

// Count of method over time with a null field value.
dataset="cribl_internal_logs" earliest=-15m
 | limit 1000
 | timestats count() by method

This first attempt will not work, because null is unquoted:

// This won't work because null is a keyword and must be quoted within brackets.
dataset="cribl_internal_logs" earliest=-15m
 | limit 1000
 | timestats count() by method
 | project-away null

Here is the same query, with null properly bracketed and quoted. If you run it, watch the null field from the original query go away:

// This will work because null is properly quoted.
dataset="cribl_internal_logs" earliest=-15m
 | limit 1000
 | timestats count() by method
 | project-away ["null"]

Generated Fields

​

Cribl Search generates fields from expressions and returns them in your search results. The expression is evaluated and all non-word characters are replaced with underscores _. For example, count(myField) returns as count_myField.

If there’s only one field, a single underscore is appended to it. For example, count returns as count_.

Maximum Field Length

​

Generated fields can be a maximum of 20 characters long. Fields are truncated from the left of the expression after the function name to keep within the 20-character limit. For example, countif(channel, elapsedMS > 0) returns as countif_elapsedms_0.

If the left field does not start with an alphabetic character, the farthest right field is truncated.

Built-in Fields

​

Cribl Search uses several fields to assist in the handling of data. These “meta” fields are not part of an event, but they are accessible, and can be referenced in queries.

If an event has a field with the same name as a Cribl Search built-in field (except _time), the event’s field is prepended with data_. For example, data_source.

Autocomplete

​

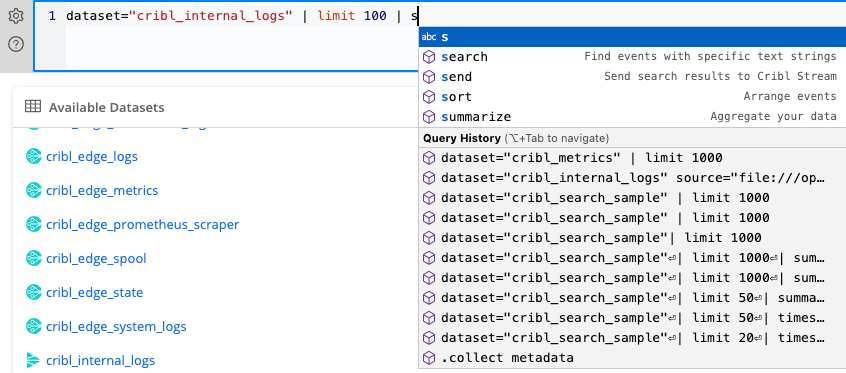

As you type in the query box, a drop-down modal with suggestions is displayed to make query writing easier. Use the down and up keyboard keys to highlight a suggestion. Press Enter/Return or Tab to add the highlighted suggestion to your query, or select a suggestion.

Autocomplete adapts its suggestions as you type, referencing built-in fields, Dataset IDs, and the query language.

The bottom section of the autocomplete modal provides a list of recent queries. When clicked, the query is added to the query box.

You can reuse query text across different searches, by using Macros.

Look Up the Query Language Docs

​

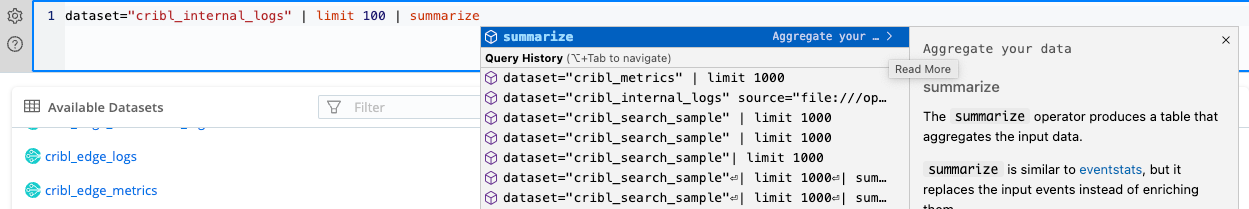

Operators and functions have a greater-than character > displayed on the right of the autocomplete suggestion when highlighted. When clicked, autocomplete expands to display its documentation for reference.

Preview

​

Preview provides a testing mode where operators can be applied to a previously run query, allowing you to quickly preview the changes without executing the search on the actual data source. You can preview operators as many times as you need, without incurring the time or cost of executing them on actual data providers until you’re ready.

• Up to 100 results from the initial search are used in Preview.
• The centralize and send operators are not supported.

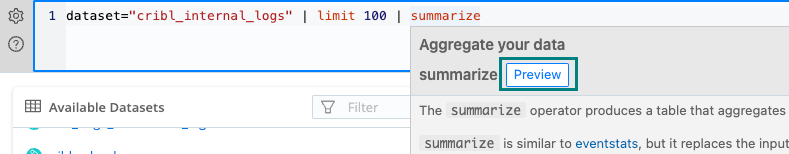

To open Preview, hover over an operator and select Preview. For non-aggregate queries, you can first select bars in the histogram to view results for only the selected times. Use shift+select to select multiple bars.

Type the operators you’d like to test against the initial search results and press Enter/Return or select Preview.

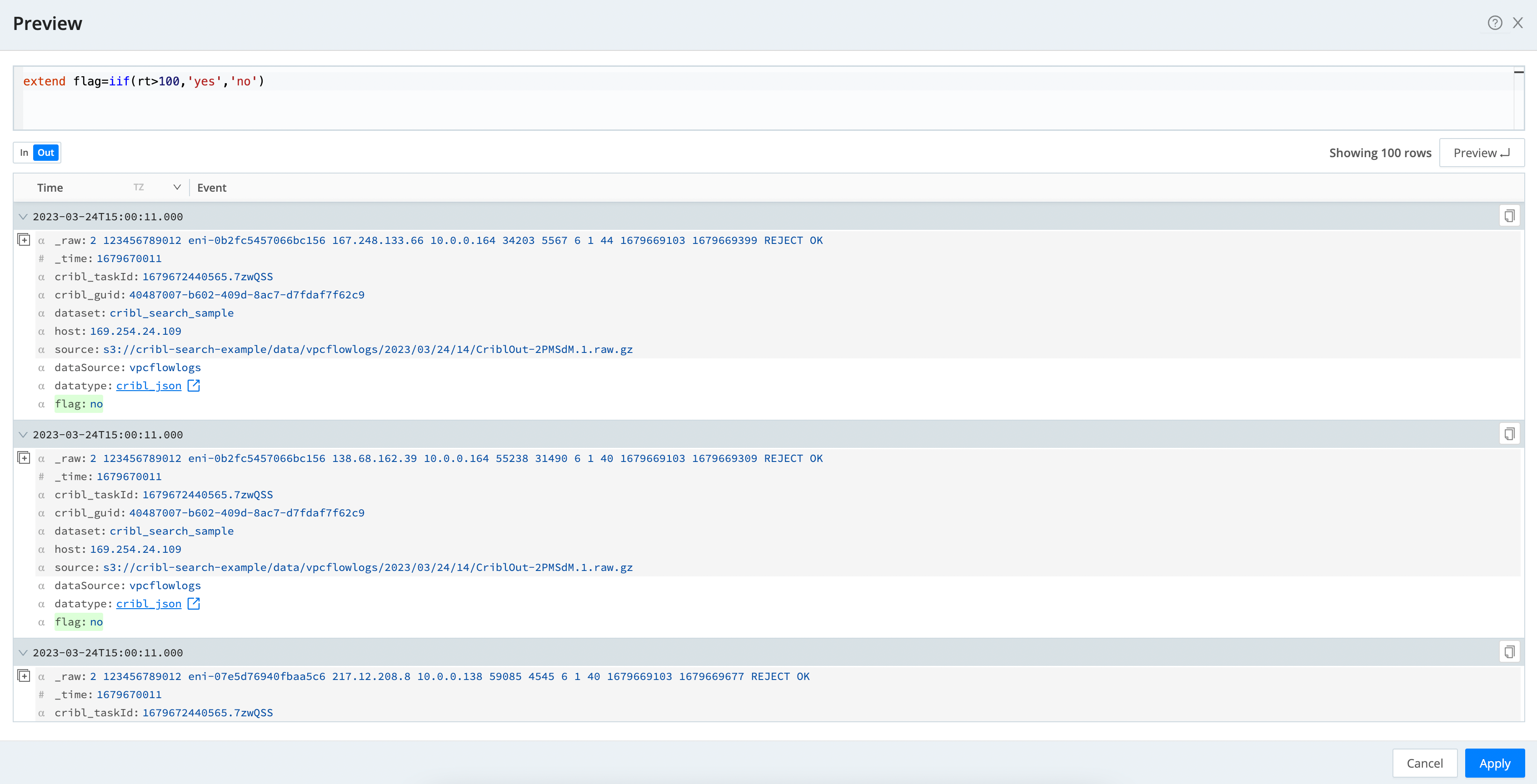

Notice the results table switches to Out instead of In, indicating the displayed results are what the operator would return.

• New data is highlighted in green.
• Modified data is highlighted in orange.
• Deleted data is highlighted in red.

Select Apply to have your test query added to your original query.

Date and Time Range

​

You can use the Date Range modal to find events within a specified date or time range. This narrows down event results, adding another layer of granularity to your search.

Some operators, like cribl and timestats, support their own time arguments that can override the time range set in the UI.

Subqueries can also use their own time arguments, but the main query time range still applies to the final results.

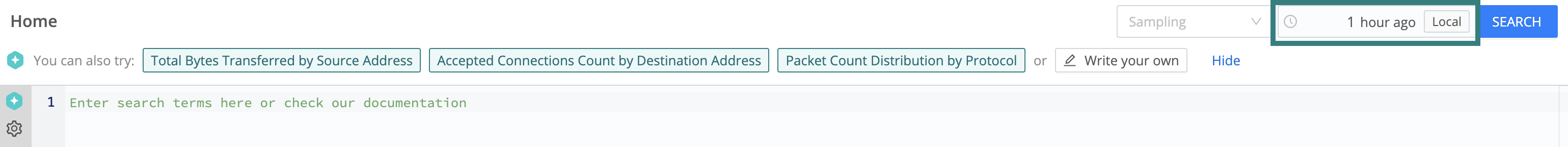

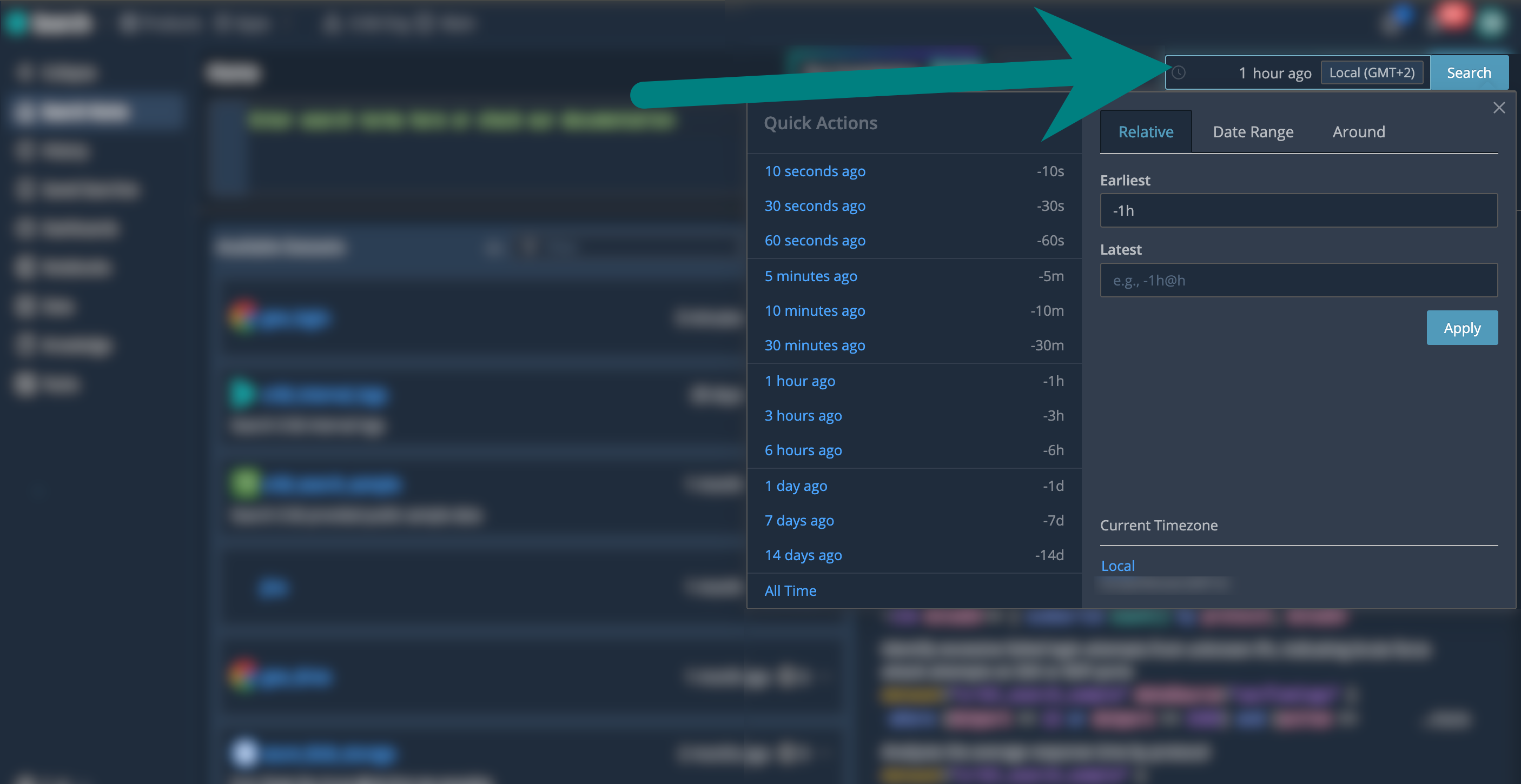

To begin, select the time field at the top right of Search Home.

Copying Date Ranges

​

To copy and paste predefined date ranges into other Search browser windows, hover over the time field and select the Copy button. Navigate to another browser containing Search, hover over the time field, and select the Paste button.

Good deal! You just saved yourself a few minutes of keyboard fatigue.

Time Range Options

​

Once you click into the time field, the date and time modal will appear. Here, you can select or enter a relative time, enter a specific date/time range, or define a duration of time around a specific date.

Relative Time

​

To find events that occurred between the selected time and now, use Relative time.

Select one of the following options:

• seconds ago: Number of seconds in the past.
• minutes ago: Number of minutes in the past.
• hours ago: Number of hours in the past.
• days ago: Number of days in the past.
• All time: All events.

For scheduled searches, now is the scheduled time, not the actual execution time.

For example, if you schedule a search for 1:00, but an unplanned outage causes the search to run at 1:05, the value of now will be 1:00, not 1:05.

Relative Tab

​

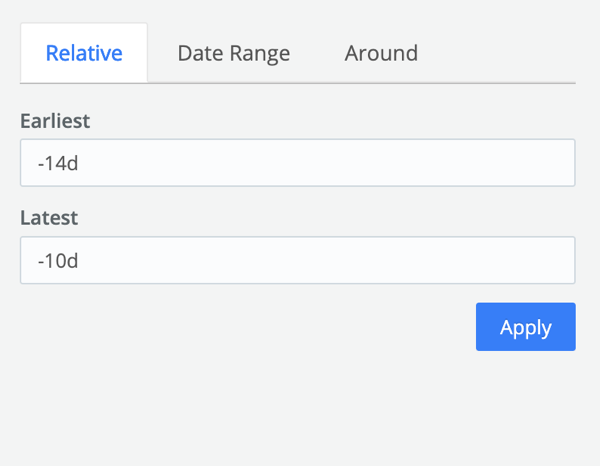

The Relative tab is another way to find events within a specified time range. To find events that occurred between two times, select the Relative tab and enter an Earliest (-90 days maximum) and a Latest time.

In this example, the defined Relative time range will return events that occurred between 14 days ago and 10 days ago.

Date Range

​

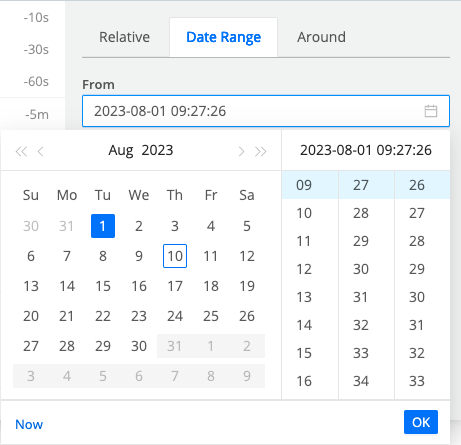

To define a custom date and time range to search within, use the Date Range tab. Select the desired start and end dates and times from the calendar. Select Apply to show search results for the date range.

Around

​

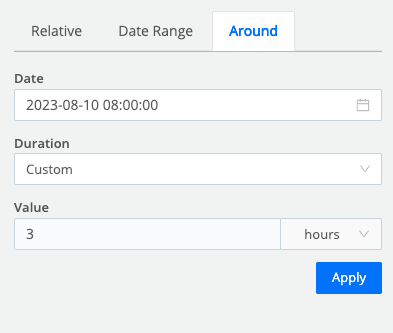

To select a custom date and specify a duration of time “around” that date, use the Around tab.

For example, you can select 07-03-2023 at 10:00 +/- 2 hours, the results of which will show you all events that happened from 8:00 am to 12:00 pm.

This is useful for finding important events that you know happened around a particular date, but you don’t know exactly when.

Time Zone

​

To apply a specific time zone to your search, select the time zone under Current Timezone. You can select a time zone, or search by time zone, country, city, or offset (+8 for example).

Notes

​

• Any selection made in the time zone selector is automatically applied to the Time column on the Events tab.
• The Local time zone is based on the time zone set of the computer that is running Search.

Sampling

​

Sampling uses a ratio to reduce the number of results returned from a search. For example, if a search returns 1,000 events, a 1:10 sampling ratio returns about 100 events.

Select Sampling to the left of the time range box to set a sampling ratio.

Comments

​

You can add comments to your query with double forward slashes // prepending the comment. Any characters on the same line after // are part of a comment. For example:

goats | summarize count() // count the goats

Autoformat Query Text

​

To make a complex query more organized and easier to read, you can autoformat its text.

When in the query box, press the Ctrl + | (Linux, Windows) or Command + | (MacOS) key combination.

UI Options

​

Select the gear button to the left of the query box to open the options menu.

• Auto Height: Enabled by default. Automatically adjusts the height of the query box based on the size of the query. When disabled, hover over the bottom line of the query box, then select and drag the line down or up to adjust its size.
• Submit on ENTER: Enabled by default. Runs the search when you press the Enter/Return key, so you don’t have to select Search.
• Strict Kusto Mode: Disabled by default. Stops the cribl operator from being implicit in the scope. When enabled, a term is interpreted as a Dataset ID.
