Searching AWS API

Learn how to search your AWS data.

Cribl Search supports searching AWS API endpoints. You need a Dataset Provider and a Dataset, see the setup guide for AWS API for details.

This document provides examples of searching endpoints from the AWS API. To start, navigate to Search Home, where searches are run.

Account and Endpoint Identifiers
​

When you search the AWS API, events in the results will contain accountName and endpointName fields, which reflect the account and endpoint configured on the Dataset.

If your Dataset has multiple accounts and/or endpoints enabled, these fields distinguish each event’s source. They also serve as potential filters that you can express in predicates, as you’ll see in examples below.

Examples
​

The following examples reference a Dataset with the ID aws_dataset1_a.

This search interrogates the ec1_security_groups endpoint for number of Security Groups that allow inbound to port 22 from 0.0.0.0/0, grouped by VPCID?

dataset="aws_dataset1_a" endpointName="ec2_security_groups" IpPermissions[0].ToPort=22 IpPermission[0].IpRanges[0].CidrIp=`0.0.0.0/0'
| summarize Groups= count(GroupName), GroupsIds=count(GroupId) by VpcId

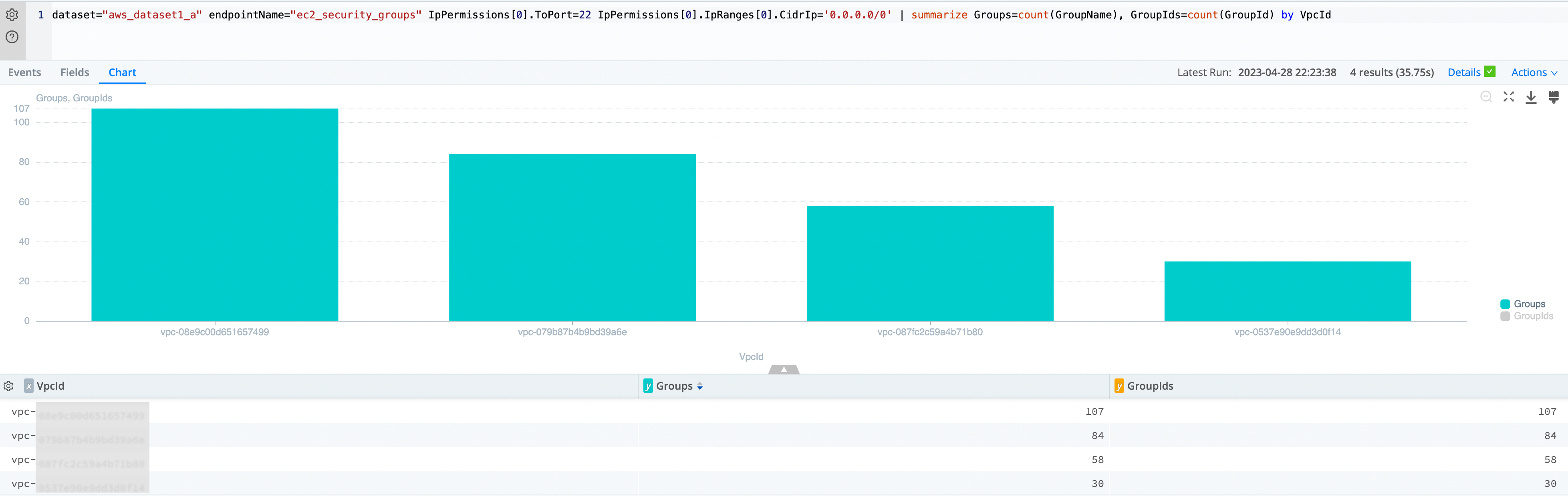

Sample AWS Search: EC2 Security Groups
Sample AWS Search: EC2 Security Groups

This search hits the ec2_instances API endpoints to find out top 5 most commonly used Amazon Machine Images (AMIs) and summarizes the results by ImageId.

dataset="aws_dataset1_a" endpointName="ec2_instances"
| summarize count () by ImageId
| where count >= 5
| order by count_desc

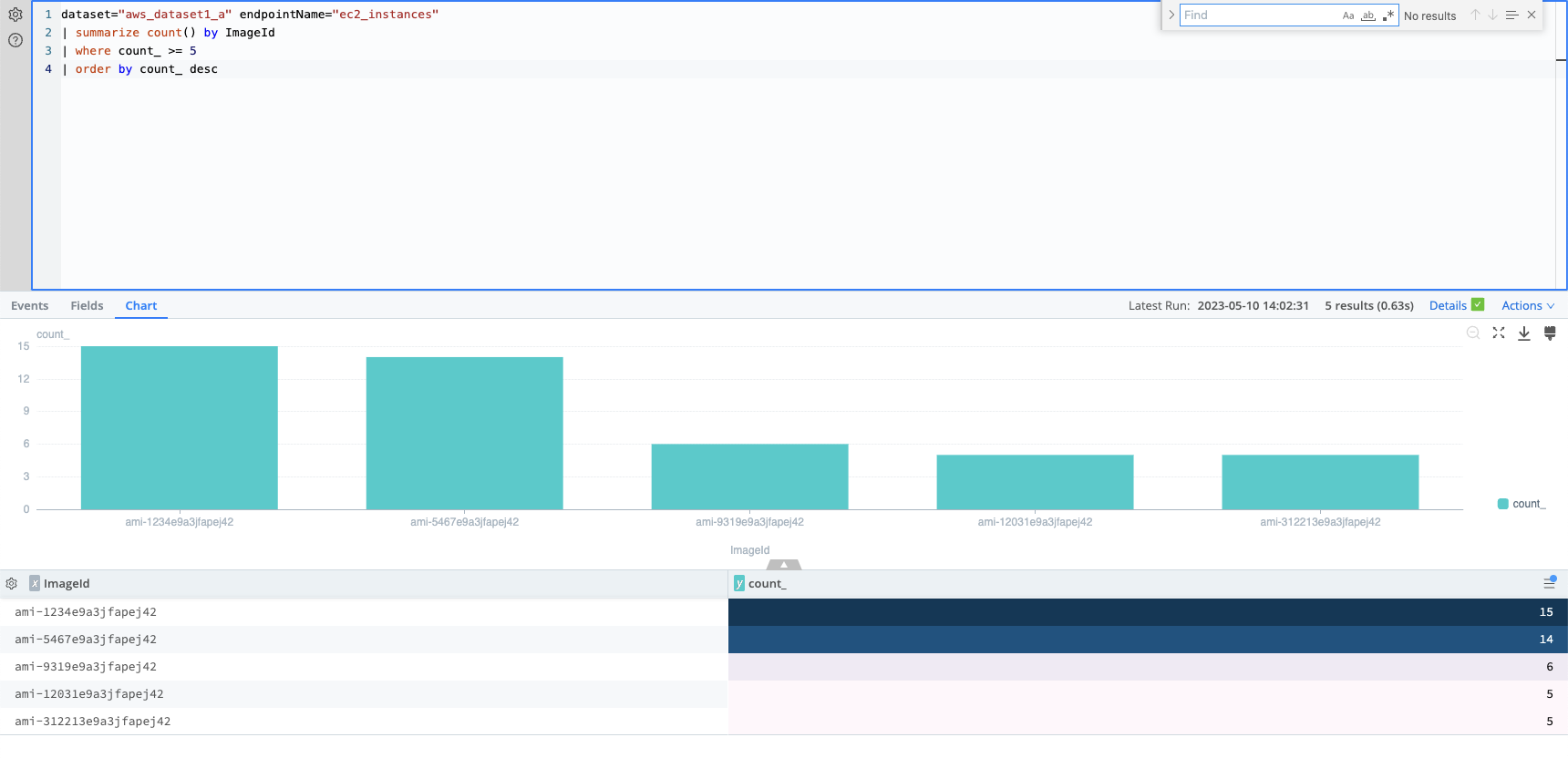

Sample AWS Search: EC2 Instances
Sample AWS Search: EC2 Instances

Cribl Search comes with rich charting options out of the box, allowing you to adjust Charts as needed.
