Connect Cribl Search to Amazon Security Lake

Configure Cribl Search to query your Amazon Security Lake data.


Using Amazon Security Lake, you can automatically consolidate security data from across AWS environments, SaaS providers, on-prem systems, and cloud sources into a purpose-built data lake.

In this guide, you’ll set up a Dataset Provider and a Dataset to search objects in your Amazon Security Lake.

Data transfer costs and other charges may apply. For details, see the Data Transfer Charges section below.

Add an Amazon Security Lake Dataset Provider

A Dataset Provider tells Cribl Search where to query and contains access credentials. Here, you will add an Amazon Security Lake Dataset Provider.

To add a new Dataset Provider, select Data, then Dataset Providers, then Add Provider.

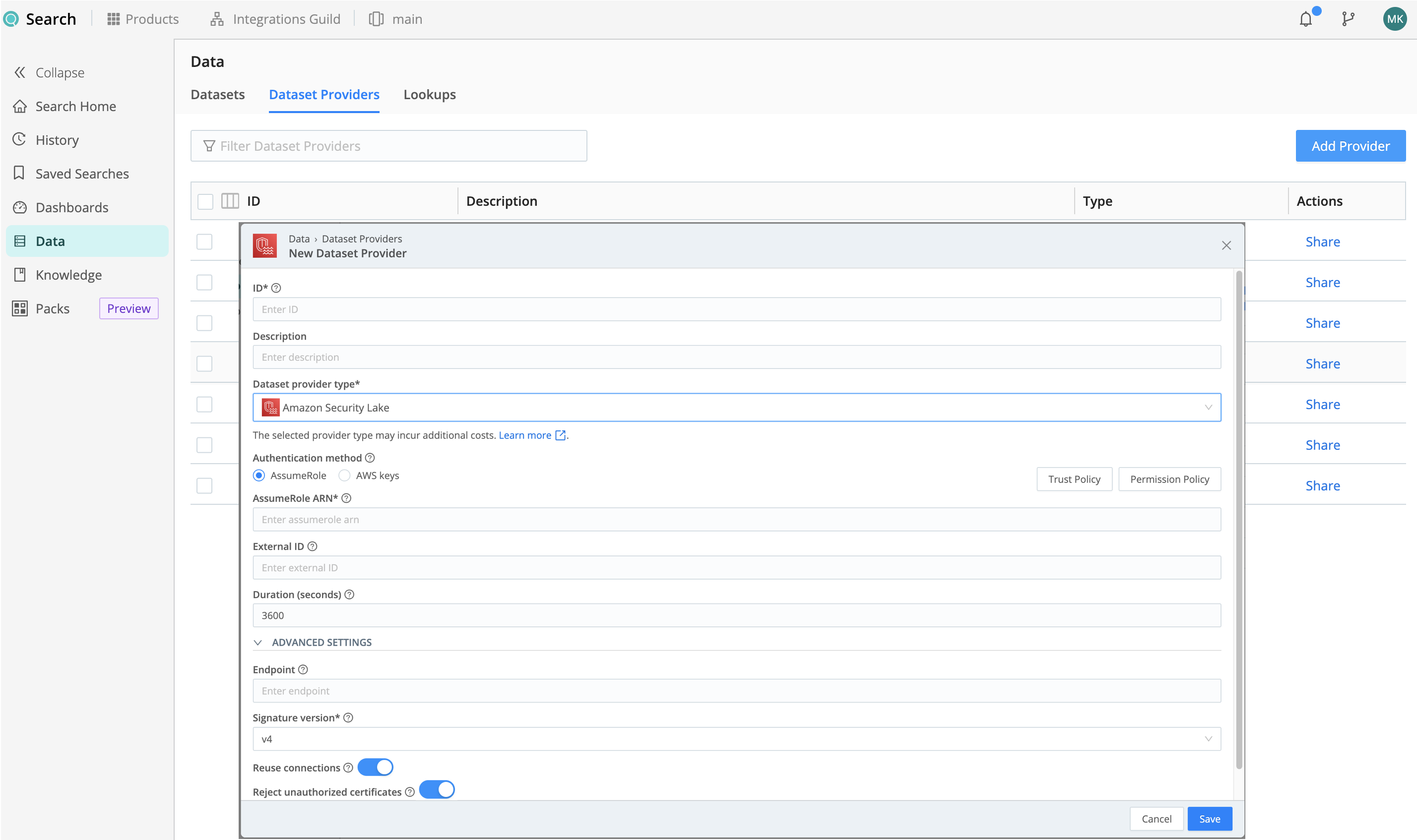

Amazon Security Lake Dataset Provider selection
Amazon Security Lake Dataset Provider selection

Basic Configuration

Configure the New Dataset Provider modal as follows:

  1. ID is a unique identifier for the Dataset Provider. This is how you’ll reference it when assigning Datasets to it. Start the ID with a letter; the rest of the ID can use letters, numbers, and underscores (for example, my_dataset_provider_1).
  2. Description is optional. Here, you can enter a summary that will clarify this Dataset Provider’s purpose to other users.
  3. Set the Dataset Provider type to Amazon S3.
  4. Authentication method provides two options, Assume Role and AWS keys. For details on configuring each option, see Authentication Method below.

Advanced Settings

This section provides the following optional configurations:

  • Endpoint: S3 service or compatible endpoint. If empty, defaults to AWS Region-specific endpoint.

  • Signature version: Signature version to use for signing S3 requests. Defaults to v4.

  • Reuse connections: Whether to reuse connections between requests. Toggling on (default) can improve performance.

  • Reject unauthorized certificates: Whether to reject certificates that cannot be verified against a valid Certificate Authority (for example, self-signed certificates). Defaults to toggled on.

  • Apply ABAC source‑ip tagging: Displayed only if you’ve set the Authentication method to AssumeRole. For details, see ABAC Tagging below.

Wrapping Up

Select Save when your configuration is complete.

Authentication Method

Your choices here are AssumeRole or AWS keys. For rich details on both options, beyond the configuration basics in this section, see Grant Access to AWS.

AssumeRole Authentication

Selecting AssumeRole requires the IAM role’s ARN (AssumeRole ARN), and also exposes the following options:

  • The External ID on this Dataset Provider must match the external ID defined in the IAM Role Trust Policy.

  • The Duration (seconds) defines how long the AssumeRole’s session lasts. Minimum is 900 (15 minutes), default is 3600 (1 hour), and maximum is 43200 (12 hours).

  • The ABAC tagging controls described in the next section.

To the right, select the Trust Policy and Permission Policy buttons to see the default policies that you can copy and expand, so you don’t have to write them from scratch. For more information, see Example Trust Policy and Expand the Permission Policy.

AWS Keys Authentication

Selecting AWS keys requires the IAM user’s Access key and Secret key.

To the right, select the Permission Policy button to see the default policy that you can copy and expand, so you don’t have to write it from scratch. For more information, see Expand the Permission Policy.

ABAC Tagging

Select Apply ABAC source‑ip tagging if you want to make your AssumeRole sessions more secure by enabling attribute-based access controls (ABAC). By enabling this option, you can hard-code Cribl’s Virtual Private Cloud Endpoint (VPCE) into your IAM trust policy.

Selecting this option exposes VPC Endpoint IDs. Use the adjacent Copy button to transfer the VPCE ID to your IAM trust policy, as shown in Trust Policy with ABAC Tagging.

Completing both parts of this configuration will make your credentials harder to impersonate. Specifically, your AssumeRole sessions will include a source-ip tag, enabling you to enforce a condition that aws:RequestTag/source-ip equals ${aws:SourceIp}.

Add an Amazon Security Lake Dataset

Now you’ll add a Dataset that tells Cribl Search what data to search from the Dataset Provider.

To add a new Dataset, select Data, then Datasets, then Add Dataset.

Datasets selection
Datasets selection

Configure the New Dataset modal as follows.

Identify the Dataset

Use the first few fields to uniquely identify this Dataset and specify its type:

  1. ID is an identifier unique for both Cribl Search and Cribl Lake. You’ll use this to specify the Dataset in a query’s scope, telling Cribl Search to search the Dataset. Start the ID with a letter; the rest of the ID can use letters, numbers, and underscores (for example, my_dataset_1).
  2. Description is optional.
  3. Set Dataset Provider to the ID of an Amazon Security Lake Dataset Provider.

Set the Path and Filter

Define the Dataset’s bucket path and filtering:

  1. Path is the path within the S3 buckets you’d like to search. Tokens and key-value pairs are supported. The path is prefilled with a recommended path string, that you can use for guidance. For details, see Set Path for Amazon Security Lake.
  2. Path Filter is a JavaScript filter expression that is evaluated against the S3 bucket path. It defaults to true, which matches all data, but you can customize this value.

Set Up Buckets and Regions

Under Selected buckets, define at least one S3 bucket/Region pair for this Dataset to search:

  1. Select Add bucket to add the first pair. In the resulting table row:
  2. Bucket name is the name of the S3 bucket.
  3. Region is the AWS Region where the bucket is located.

Select Add bucket again for each additional bucket/Region pair you want to append to the table.

Set Up Datatypes

  1. On the Processing left tab, you specify Datatypes to break data down into discrete events and define fields so they’re ready to search. Use the drop-down to set the first rule to OCSF Datatypes. For details, see Datatypes.

  2. Optionally, click Add Datatype Ruleset to define more rulesets – each of which contains rules applied to the data searched in your Dataset.

  3. Create a rule on a Datatype that converts the time field from milliseconds to seconds (For example, _time = time/1000). For details, see the Assign time Field section below.

Save the Configuration

Bypass the Usage left tabs for now, and select Save when your configuration is complete.

Path/Filter Considerations

This section offers details and guidance on configuring the search path, filter, and time extraction.

Set Path for Amazon Security Lake

The Path specifies the data that the Dataset consists of. It defines the scope of data, to narrow down what data is in the Dataset. This is a JavaScript expression that supports tokens and key-value pairs. For example,

  • path/to/folder/${data}/ – where data becomes a field for all events of that Dataset.
  • path/to/folder/${data}/${*} – where data and the wildcarded path becomes a field for all events of that Dataset.

Basic Tokens

Basic tokens’ syntax follows that of JS template literals: ${token_name} – where token_name is the field (name) of interest.

For example, if the path was set to /var/log/${hostname}/${dataSource}/, you could use a filter such as hostname=='myHost' && dataSource=='mydataSource' to specify data only from the /var/log/myHost/mydataSource/ subdirectory.

Time-Based Tokens

Paths with time notation can be referenced with tokens, having a direct effect on the earliest and latest boundaries. The supported time fields are:

  • _time is the raw event’s timestamp.
  • __earliest is the search start time.
  • __latest is the search end time.

Time-based tokens are processed as follows:

  • For each path, times must be notated in descending order. So Year/Month/Day order is supported, but Day/Month/Year is not.
  • Paths may contain more than one time component. For example, /my/path/2020-04/20/.
  • In a given path, each time component can be used only once. So /my/path/${_time:%Y}/${_time:%m}/${_time:%d}/... is a valid expression format, but /my/path/${_time:%Y}/${_time:%m}/${host}/${_time:%Y}/... (with a repeated Y) is not supported.
  • For each path, all extracted dates/times are considered in UTC.

Cribl recommends that your path always include and tokenize the largest available time fields, proceeding down to the smallest desired time fields. Otherwise, your searches might yield unexpected results, because Cribl Search will default the omitted fields to their earliest allowed value.

The following strptime format components are allowed:

  • Y, y for years
  • m, B, b, e for months
  • d, j for days
  • H, I for hours
  • M for minutes
  • S for seconds
  • s for Unix-style Epoch times (seconds since 1/1/1970)

Time-based token syntax follows that of a slightly modified JS template literal: ${_time: some_strptime_format_component}. Examples:

PathMatches
/path/${_time:%Y}/${_time:%m}/${_time:%d}/.../path/2020/04/20/...
/path/${_time:year=%Y}/${_time:month=%m}/${_time:day=%d}/.../path/year=2020/month=05/day=20/...
/path/${_time:%Y-%m-%d}/.../path/2020-05-20/...

Set Path Filter for Amazon Security Lake

The Path filter is a JavaScript filter expression that Cribl Search evaluates against the corresponding Container path. The Path filter field’s value defaults to true, which matches all data. However, you can customize this value almost arbitrarily.

For example, if a Dataset has this Filter:
source.endsWith('.log') || source.endsWith('.txt')
…then only files/objects with .log or .txt extensions will be searched.

At the Path filter field’s right edge are a Copy button and an Expand button that opens a validation modal.

Assign time Field for Amazon Security Lake

Amazon Security Lake automatically partitions incoming data from natively supported AWS services into storage-efficient and query-efficient Parquet files. Additionally, it transforms data from native AWS services into the open-source OCSF format.

The time is assigned to the time field, which is an epoch time expressed in milliseconds.

To use this field, you need to set its value to the Cribl Search _time field. Because Cribl Search uses seconds instead of milliseconds, you must also convert it by dividing by 1,000. For this to work, add this field to a Datatype:
_time = time/1000.

Search Amazon Security Lake

Now that you have a Dataset Provider and Dataset, you’re ready to start searching.

Search results can start showing up within a second or two, but when the search completes depends on how much data there is in the account.

Data Transfer Charges

Data transfer to Cribl Search is free if your S3 bucket is in the same Region as your Cribl.Cloud Workspace.

Data transfer to Cribl Search is subject to AWS data transfer costs if your S3 bucket is not in the Regions supported by Cribl.Cloud. See the Data transfer section in Amazon S3 Pricing.

Cribl Search will try to minimize the amount of data transferred, to the extend possible, by using path filters, pruning, and other methods.

Other Charges

Other charges may apply. For example, LIST and GET requests to your S3 buckets will be charged per AWS S3. See the Requests & data retrievals section in Amazon S3 Pricing.
