Connect Cribl Search to a Generic HTTP API

Configure Cribl Search to query any HTTP API.

This guide shows you how to set up a Dataset Provider and Datasets to query static or dynamic HTTP API endpoints.

You can also quickly fetch data from an HTTP(S) URL by using the externaldata operator.

Add a Generic HTTP API Dataset Provider

​

A Dataset Provider tells Cribl Search where to query, and contains access credentials.

To add a new HTTP API Dataset Provider:

1. In Cribl Search, select Data, then Dataset Providers, then Add Provider.
2. In ID, enter the ID for the new Dataset Provider. This is how you’ll reference the provider when assigning your HTTP API Datasets to it. Start the ID with a letter; the rest of the ID can use letters, numbers, and underscores (for example, my_dataset_provider_1).
3. In Description, you can add a few words to make your new Dataset Provider easy to recognize.
4. Set Dataset Provider Type to Generic HTTP API. You’ll see two new sections: Endpoints and Authentication.
5. In Endpoints, specify the endpoints that your Datasets will be able to reference. For each endpoint, set the following:
   • Name: This is how you’ll recognize the endpoint when setting up your HTTP API Datasets.
   • Data field: Enter the name of the field in the response JSON to pull data from. Leave blank if the result is not JSON or is an array of values. You can define parameters, in the form of ${parameterName}.
   • URL: The URL for the endpoint. This is where Cribl Search will query for data. You can define parameters, in the form of ${parameterName}.
   • Method: The HTTP method to use when making API requests.
   • Headers: Any HTTP headers needed to authenticate or authorize requests.
     For example, you might need to add an Authorization header with a bearer token. You can define parameters, in the form of ${parameterName}.
6. In Authentication, you can select and configure an optional authentication method to use when making API requests. The default option is None.
7. When done, select Save.

Now, you can add a Dataset that tells Cribl Search what data to search from your new Dataset Provider.

Add a Generic HTTP API Dataset

​

A Dataset tells Cribl Search what data to search from the Dataset Provider.

To add a new HTTP API Dataset:

1. In Cribl Search, select Data, then Datasets, then Add Dataset.
2. In ID, enter the ID for the new Dataset. This is how you’ll reference the Dataset to search it. Start the ID with a letter; the rest of the ID can use letters, numbers, and underscores (for example, my_dataset_1).
3. In Description, you can add a few words to make your new Dataset easy to recognize.
4. Set Dataset Provider to the ID of an HTTP API Dataset Provider.
5. Select the endpoints that you want to search with this Dataset.
   To configure more endpoints, go to the Dataset Provider.
6. In Processing, you can apply rules for breaking data into discrete events. For more information, see Datatypes.
7. In Snapshots, you can set up API Snapshots.
8. When done, select Save.

Authentication Methods for Generic HTTP API

​

Cribl Search supports the following authentication methods for Generic HTTP API Dataset Providers:

• None: No authentication. This is the default option.
• Basic
• OAuth
• Login

Basic Authentication

​

To configure HTTP Basic authentication for a Generic HTTP API Dataset Provider in Cribl Search:

1. Start adding a Generic HTTP API Dataset Provider, or editing an existing one.
2. In the Authentication section, set Authentication method to Basic.
3. Enter the HTTP Basic Username and Password to use when making API requests.
4. Select Save.

Login Authentication

​

Login is the best authentication method to use for all services that return a JSON web token (JWT) or other authentication token whose content type is application/json or content/plain.

To configure Login authentication for a Generic HTTP API Dataset Provider in Cribl Search:

1. Start adding a Generic HTTP API Dataset Provider, or editing an existing one.
2. In the Authentication section, set Authentication method to Login.
3. Configure the following:
   • Login URL: URL for the Login API call, which is normally a POST call.
   • Login username: Login username.
   • Login password: Login password.
   • POST body: Template for POST body to send with the login request. The ${username} and ${password} variables specify the corresponding credentials’ locations in the message.
   • Token attribute: Path to the token attribute in the login response body. Supports nested attributes. If the response from the auth request provides the JWT as plain/text, leave this field blank.
   • Authorization header: Authorization header key to pass to each endpoint’s API request. Defaults to the literal name Authorization.
   • Authorize expression: JavaScript expression used to compute an Authorization header to pass to each endpoint’s API request. Uses ${token} to reference the token obtained from a Login or OAuth authorization request.
   • Authentication headers: Optionally, select Add Header for each custom auth header you want to define.

     Enter each header’s Name and Value. In Value, you can define parameters, in the form of ${parameterName}.

OAuth Authentication

​

To configure OAuth 2.0 authentication for a Generic HTTP API Dataset Provider in Cribl Search:

1. Start adding a Generic HTTP API Dataset Provider.
2. When you get to the Authentication section, set Authentication method to OAuth.
3. Configure the following:
   • Login URL: Endpoint for the OAuth API call, which is normally a POST call.
   • Client secret parameter: The name of the parameter to send with the Client secret value.
   • Client secret value: The OAuth client secret to authorize for an access token.
   • Extra authentication parameters: Optionally, select Add parameter for each additional OAuth request parameter you want to send in the body of POST requests. Automatically sets the Content‑Type header to application/x‑www‑form‑urlencoded.

     Enter each parameter’s Name and Value. In Value, you can define parameters, in the form of ${parameterName}.

   • Token attribute: Path to the token attribute in the login response body. Supports nested attributes.
   • Authorization header: Authorization header key to pass to each endpoint’s API request. Defaults to the literal name Authorization.
   • Authorize expression: JavaScript expression used to compute an Authorization header to pass to each endpoint’s API request. Uses ${token} to reference the token obtained from a Login or OAuth authorization request.
   • Authentication headers: Optionally, select Add Header for each custom auth header you want to define.

     Enter each header’s Name and Value. In Value, you can define parameters, in the form of ${parameterName}.

Search a Generic HTTP API Dataset

​

Now that you have a Dataset Provider and Dataset, you’re ready to start searching.

Search results can start showing up within a second or two, but when the search completes depends on how much data there is in the account.

Dynamically Query HTTP Endpoints

​

You can dynamically query different HTTP API endpoints, without having to change the Dataset Provider configuration for each query.

To be able to do that, configure your Generic HTTPI API Dataset Provider with parameters in the form of ${parameterName}. Then you can provide values for those parameters as key-value pairs (parameterName=parameterValue) in your query.

For example:

1. Start creating a Generic HTTP API Dataset Provider.

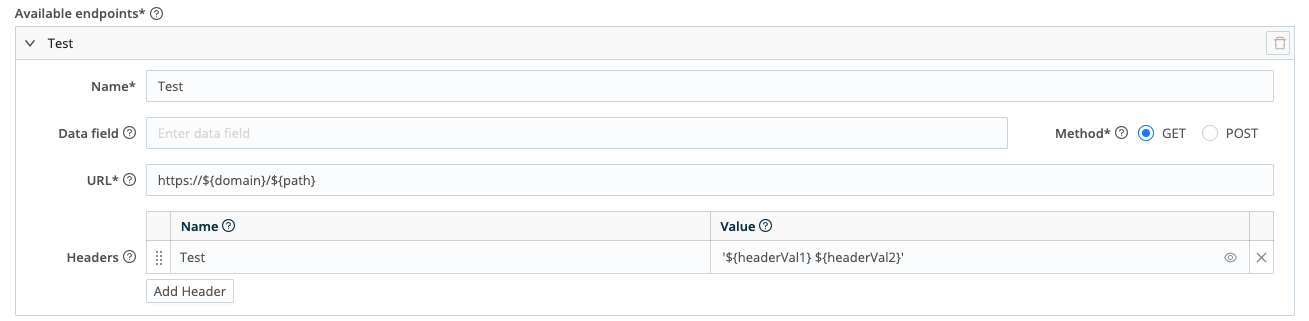

2. In the Available endpoints section, let’s define two sets of parameters, as shown below:

   • In URL, enter: https://${domain}/${path}.
   • In Headers, set Value to: ${headerVal1} ${headerVal2}.

(Note that you can use parameters to define the Data field, too.)

3. Use the new Dataset Provider to add a Generic HTTP API Dataset. Let’s call the Dataset my_http_api.
4. Now, when searching the my_http_api Dataset, you’ll be able to write queries like this one:

   dataset="my_http_api" domain='cat-fact.herokuapp.com' path='facts' headerVal1='foo' headerVal2='bar'
