All-in-One Reference Architecture

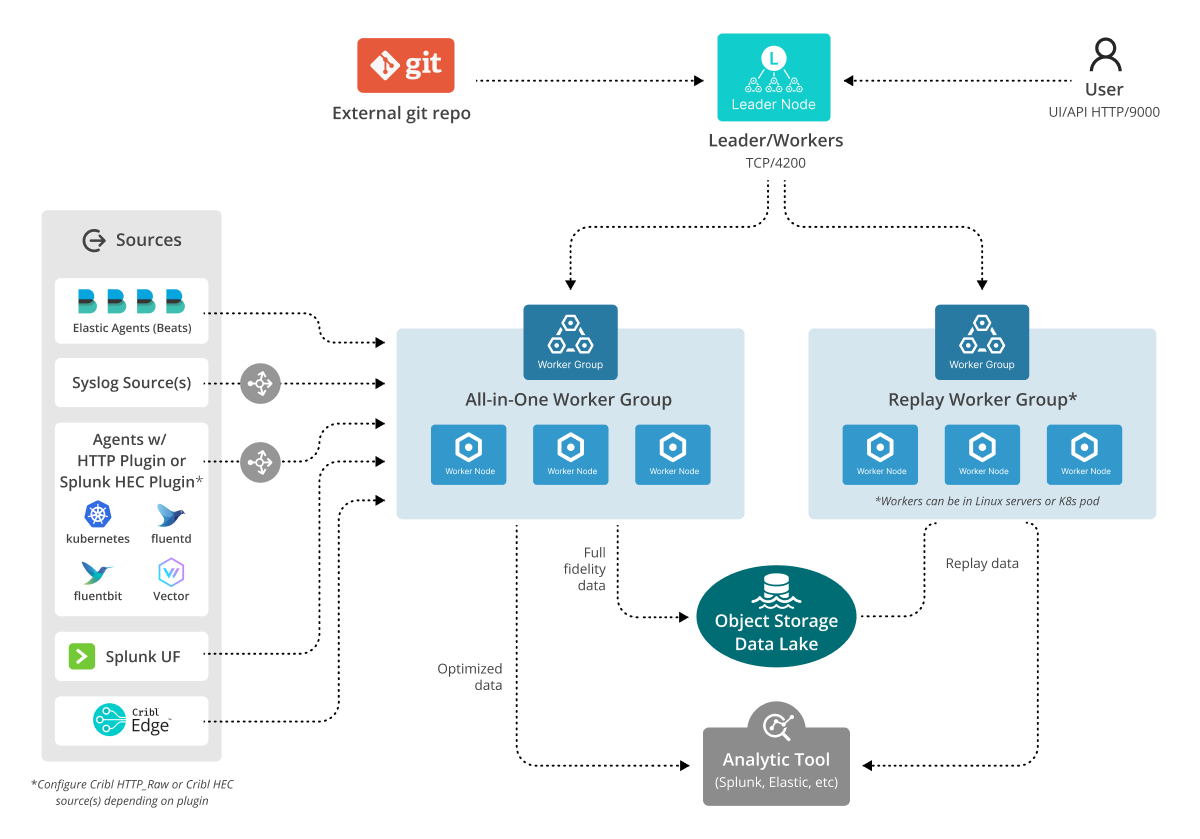

This reference architecture shows one possibility for ingesting and replaying diverse data types from multiple senders. The Sources shown at left are just representative examples. The replay workers at right could be hosted on Linux servers, in Kubernetes Pods, etc.

All-in-one reference architecture
All-in-one reference architecture

Sizing Considerations
​

  • An all-in one Worker Group works best with fewer than 2000 Sources (agents, syslog senders, etc.).
  • Syslog over TCP should be under 200 GB/day from any one sender.
  • Account for up to 50% bursts in traffic.
