All-in-One Reference Architecture

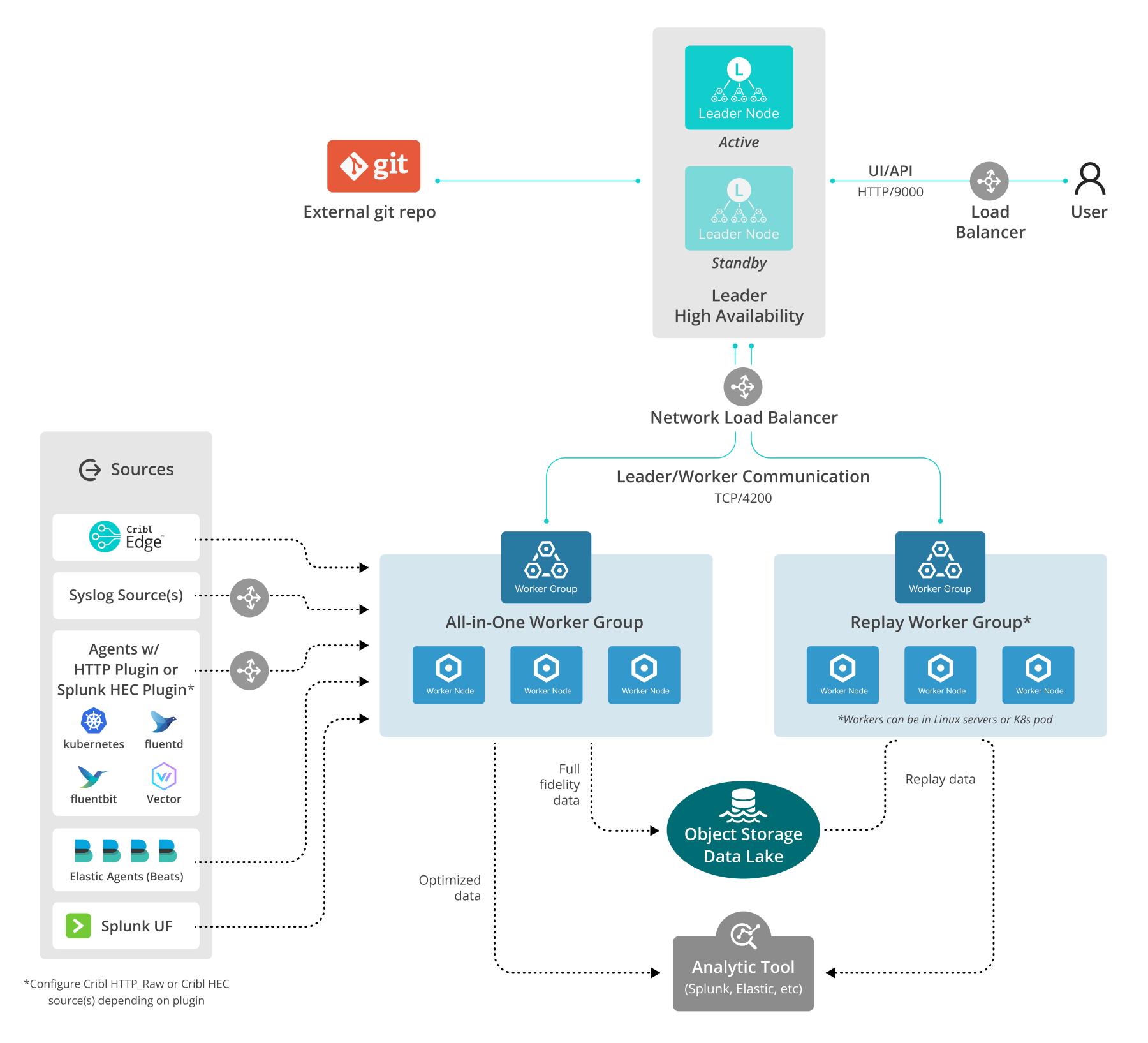

This reference architecture shows one possibility for ingesting and replaying diverse data types from multiple senders. The Sources shown at left are just representative examples. The replay workers at right could be hosted on Linux servers, in Kubernetes Pods, etc.

All-in-one reference architecture
All-in-one reference architecture

Download an editable version of this diagram in SVG or draw.io format. Download Cribl stencils here.

Sizing Considerations
​

  • An all-in one Worker Group works best with fewer than 2000 Sources (agents, syslog senders, etc.).
  • Syslog over TCP should be under 200 GB/day from any one sender.
  • Account for up to 50% bursts in traffic.

Load Balancers
​

The load balancer in front of the Leader UI can be an Application Load Balancer or a Network Load Balancer.

The load balancer between the Cribl Workers and the Cribl Leader listening on port 4200 must be a Network Load Balancer or equivalent.

Leader High Availability
​

Configuring Leader high availability requires a standby server, a load balancer (details here) between users and the Cribl UI port, and a Network Load Balancer between the Cribl Leader and Workers.

Leader high availability is optional. Many customers opt instead for a single Leader, and a remote Git repo for scheduled backups. If the Leader becomes unavailable, you can use the Git repo to provision a new Leader, restoring configuration from a backup.

However, a single Leader is reliable only when Workers are running Cribl Sources that fully leverage a shared-nothing architecture (such as Raw HTTP, Splunk HEC, Elasticsearch API, Amazon S3 Source, etc). Here, Workers can process data even if the Leader is unavailable. A Leader without failover will not reliably support Collectors, which require a Leader’s ongoing orchestration.
