Upgrading

This page outlines how you can upgrade a Cribl Stream single-instance or distributed deployment along one of these supported upgrade paths, which apply to UI-based upgrades:

If you’re upgrading Worker Nodes directly from the command line, you don’t have to worry about a version upgrade path - there are no restrictions on the versions you can upgrade from or to.

Considerations

​

Here are some considerations to look at before you upgrade.

Upgrading to v.4.3.x using Leader-Managed Upgrades for Worker Nodes

​

If a Leader is on Cribl Stream 4.3.x, you should upgrade all Worker Nodes to 4.3.x before making any config changes or committing and deploying to the Nodes.

If you have already committed and deployed to Nodes that are on a version earlier than 4.3.0, and the Leader is on 4.3.x, you won’t be able to upgrade the Nodes. In this case, here are three workaround options:

• Revert and redeploy the last commit, then upgrade the Worker Nodes and deploy the most up-to-date changes; or

• Upgrade the Worker Nodes via command line or script; or

• Downgrade the Leader to v.4.2.2, and wait for a future release that will enable you to upgrade Worker Nodes across all Leaders and 4.x.x versions.

If you run into issues, contact support@cribl.io for resolution help.

General Upgrade Considerations

​

• Cribl Stream does not support direct upgrades from any pre-GA version (such as a Cribl-provided test candidate) to a GA version. To get the GA version running, you must perform a new install.

• If you’re upgrading to v.3.5.4 or later, all Worker Nodes will need to be on the same version as the Leader. Leaders running v.3.5.4 and later test whether Worker Nodes are running a compatible version before deploying configs that could break Workers’ data flow. The Leader will prompt you to upgrade these Nodes as needed. For details, see the Stream 3.5.4 release notes.

• Version 3.5.4 was also a compatibility breakpoint for the Cribl HTTP Source and Destination, and for the Cribl TCP Source and Destination. When running on Cribl Stream 3.5.4 and later, these two Sources can send data only to Nodes running v.3.5.4 and later, and these two Destinations can receive data only from Nodes running v.3.5.4 and later. When running on Stream 3.5.3 and earlier, these four integrations can similarly interoperate only with Nodes running v.3.5.3 and earlier.

• Before upgrading your Leader to v.4.0 and later, see Persisting Socket Connections to prepare the host to keep communications open from Workers.

• Cribl Stream 4.1 and later encrypt TLS certificate private key files when you add or modify them. See instructions just below for backing up your keys from earlier versions.

Safeguarding Unencrypted Private Key Files for Rollback

​

Before upgrading from a pre-4.1 version, make a backup copy of all unencrypted TLS certificate private key files. Having access to the unencrypted files is essential if you later find that you need to roll back to your previous version.

To safeguard your unencrypted private keys, make a full backup of all Cribl config files. Files in the auth/certs directory are particularly important, such as those in:

• groups/default/local/cribl/auth/certs/
• groups/<groupname>/local/cribl/auth/certs/
• cribl/local/cribl/auth/certs/
• Etc.

Take appropriate precautions to prevent unauthorized access to these unencrypted private key files. If you need to roll back to a pre-4.1 version, see Restoring Unencrypted Private Keys.

Standalone/Single-Instance

​

This path requires upgrading only the single/standalone node:

1. Stop Cribl Stream.

2. Uncompress the new version on top of the old one.

   On some Linux systems, tar might complain with: cribl/bin/cribl: Cannot open: File exists. In this case, please remove the cribl/bin/cribl directory if it’s empty, and untar again. If you have custom functions in cribl/bin/cribl, please move them under $CRIBL_HOME/local/cribl/functions/ before untarring again.

3. Restart Cribl Stream.

Distributed Deployment

​

For a Distributed Deployment, this is the general upgrade order:

First, upgrade the Leader Node. Then, upgrade the Worker Nodes. Lastly, commit and deploy the changes on the Leader.

For distributed environments with a second Leader configured for failover, this is the upgrade order:

1. Stop both Leaders.
2. Upgrade the primary Leader.
3. Upgrade the second Leader.
4. Upgrade each Worker Node, respectively.

Upgrade the Leader Node

​

1. Commit and deploy your desired previous version. (This will be your most recent checkpoint.)

   Optionally git push to your configured remote repo.

2. Stop Cribl Stream.

   • Optional but recommended: Back up the entire $CRIBL_HOME directory.

   • Optional: Check that the Worker Nodes are still functioning as expected. In the absence of the Leader Node, they should continue to work with their last deployed configurations.

3. Uncompress the new Cribl Stream version on top of the old one.

4. Change ownership of the cribl directory as needed: [sudo] chown -R cribl:cribl $CRIBL_HOME

5. Restart Cribl Stream and log back in.

6. Wait for all the Worker Nodes to report to the Leader, and ensure that they are correctly reporting the last committed configuration version.

Upgrading from 4.1.0

​

When upgrading a Leader Node from version 4.1.0 using the UI, you may encounter the following error:

{"status":"error","message":"Protocol \"https:\" not supported. Expected \"http:\"","error":{"code":"ERR_INVALID_PROTOCOL"}}

To resolve this, configure the no_proxy directive to include the API’s listening address on the Leader Node. To encompass all addresses, set no_proxy to 0.0.0.0. This prevents internal traffic on the Leader Node from passing through the proxy server.

Here’s an example No_Proxy configuration:

http_proxy=http://localhost:1234 https_proxy=http://localhost:1234 no_proxy=0.0.0.0 bin/cribl start

This extra step is due to changes in communication between the connection listener service and the API server via an http client.

Upgrade the Worker Nodes

​

These are the same basic steps as when upgrading a single instance deployment, above:

1. Stop Cribl Stream on each Worker Node.

2. Uncompress the new version on top of the old one.

3. Change ownership of the cribl directory as needed: [sudo] chown -R cribl:cribl $CRIBL_HOME

4. Restart Cribl Stream.

Commit and Deploy All Changes from the Leader Node

​

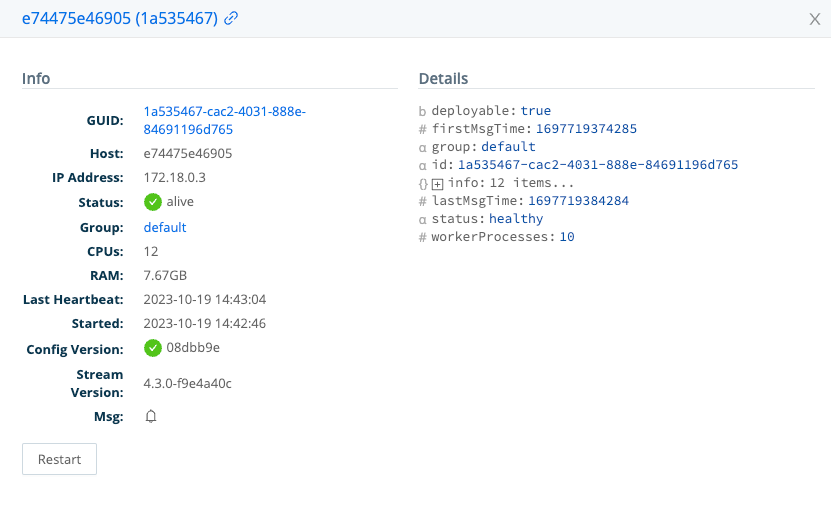

1. Ensure that newly upgraded Worker Nodes report to the Leader with their new software version.

2. Commit and deploy the newly updated Leader configuration after all Workers have upgraded.

Breaking Change at v.3.2

​

Because of a breaking change at v.3.2, Leaders running v.3.2.x cannot upgrade (via the UI) Workers running versions prior to 3.2.0. The upgrade will fail with errors of the form: Error checking upgrade path and Cannot read property 'greaterThan' of undefined.

The workaround is to upgrade these Workers via the filesystem to v.3.2.0 or higher. The error does not affect upgrades of Workers running v.3.2.0+.

Upgrade and Rollback via the UI

​

Cribl Stream/LogStream v.2.4.4 and higher provides streamlined upgrading options directly through the UI:

• To upgrade a single-instance deployment, select Settings > System > Upgrade.
• To upgrade the Leader Node, select Settings > Global Settings > System > Upgrade.
• To upgrade a single Worker Group, select Settings > Stream Settings > Group Upgrade.

These streamlined controls perform the whole above sequence of stopping the Cribl server, updating the installed package, and restarting Cribl.

Cribl Stream/LogStream 3.0 (and later) also enables you to manage automatic backup and rollback in case an upgrade fails.

These options will work only if all Stream/LogStream instances (including Worker Processes) start at v.2.4.4 or higher. For other version-specific limitations, please see Known Issues.

Be aware that the Checking for upgrade status message, and its accompanying spinner, can take up to several minutes to resolve. Also, after you initiate an upgrade, it can take up to several minutes before the View button (described below) is displayed.

Upgrade the Leader Node via the UI

​

To upgrade the Leader in a distributed deployment, go to Settings > Global Settings > System > Upgrade. The following controls are available:

Package Source

​

To the right of Package source, the default CDN button downloads a package directly from Cribl’s content delivery network.

If you select the alternative Path button, next click Add Path (below Custom path) to define as many paths as you need. In the resulting table, each row provides these additional fields:

• Platform‑specific package location: Enter either a URL (HTTP) or a local path to the upgrade package. HTTP example: https://cdn.cribl.io/dl/4.1.0/cribl-4.1.0-6979aea9-linux-x64.tgz

• Package hash location: Enter either a URL (HTTP), or a local path to the hash that validates the package. Supports SHA‑256 and MD5 formats. You can simply append .sha256 to the contents of the Platform‑specific package location field.
  HTTP example: https://cdn.cribl.io/dl/4.1.0/cribl-4.1.0-6979aea9-linux-x64.tgz.sha256

• X (close box): Click to delete a row – immediately. (There is no confirmation prompt.)

• Save/Cancel buttons: Click Save to store the specified locations. Clicking Cancel restores the CDN package-source selection.

You can add multiple rows to this table to specify packages for different platforms/architectures. To obtain the latest packages from https://cribl.io/download, use the drop-down list to specify each platform (e.g., x64 versus ARM). When you stage these packages on your own servers, preserve the original file names.

Automatic Upgrades

​

Enable automatic upgrades has a different default state depending on the deployment type:

• In on-prem/​customer-managed deployments, Enable automatic upgrades defaults to No, to prevent the Leader from automatically upgrading out-of-date Worker Nodes. Before you toggle this to Yes, upgrade the Leader itself to Cribl Stream’s most recent version.

• In Cribl.Cloud deployments, Enable automatic upgrades defaults to Yes. This enables Cribl to automatically upgrade Worker Nodes to Cribl Stream’s newest stable version. (Cribl-managed and hybrid Workers will auto-upgrade as soon as they see a new Leader version.) If you toggle this to No, you will need to explicitly upgrade each Worker.

When enabled, the automatic upgrade process works like this:

1. The Leader pulls packages, and checks their hashes.

   • The Leader must be able to connect to the path.
   • The Leader must also have privileges to download the files.
   • If the path is an HTTP URL, the Leader copies the file to a known location in its filesystem.
   • If the package is already hosted on the Leader Node, specify its filesystem path.

2. Workers pull packages and check their hashes.

   • Workers pull from the Leader through HTTP, not directly from the Leader’s filesystem.
   • Each Worker pulls the package that is appropriate for that Worker’s platform and architecture.

3. Workers install the packages.

Upgrade Worker Groups via the UI

​

To upgrade a Worker Group, go to Settings > Stream Settings > Group Upgrade. Click any row’s Upgrade button to upgrade that group. The resulting Upgrade Group modal offers two states: Basic Upgrade and Advanced Upgrade.

Upgrading Workers from the Leader requires a Cribl Stream Standard or Enterprise license.

Basic Upgrade Configuration

​

In this default Upgrade Group modal, you can simply upgrade the whole Group, by clicking the modal’s Upgrade button to confirm.

When one or more Workers can be upgraded in the Group, the Upgrade button will be enabled.

By clicking the Upgrade button, you can initiate the upgrade job with a task for each Worker that can be upgraded.

Cribl Stream will check to ensure that Workers are upgraded no higher than the Leader’s version. Upgrades are performed as the user that was running Cribl Stream on each machine.

The Worker Nodes column will display a warning icon with a tooltip if the Group contains Workers that can’t be upgraded for one or more of the following reasons:

• Workers are already running the current version.
• Workers running v.2.4.4 or older are too old to upgrade.

When none of the Workers in the Group can be upgraded, the Upgrade button will be disabled.

Advanced Upgrade Configuration

​

Click the modal’s gear (⚙️) button to expose these additional options:

Quantity %: Specify what percentage of the Group’s Workers to upgrade in this operation. If you enter a value less than the default 100%, Cribl Stream will perform a partial upgrade, keeping the remaining Workers active to process data.

Rolling upgrade: This option upgrades Workers in batches, each sized according to the value in the Quantity % field. When enabled, this toggle also enables the modal’s two remaining controls:

• Retry delay (ms): How many milliseconds to wait between upgrade attempts. Defaults to 1000 ms (1 second).

• Retry count: How many times to retry a failed upgrade. Defaults to 5.

After you confirm the Worker Group upgrade, the table on the Group Upgrade page will display an additional button on this Group’s row:

• View: Click to display the upgrade task’s status in the Job Inspector modal – select that modal’s System tab to access details.

When you initiate an upgrade via the UI, the new package is untarred to $CRIBL_HOME/unpack.<random‑hash>.tmp. This location inherits the permissions you’ve already assigned to $CRIBL_HOME.

Backup and Rollback

​

When you initiate an upgrade through the UI, Cribl Stream first stores a backup of your current stable deployment. If the upgrade fails, then by default, Stream will automatically roll back to the stored backup package. You can adjust this behavior at Settings > Global Settings > System >General Settings > Upgrade & Share Settings, using the following controls.

Cribl Stream can perform rollbacks only on Worker Nodes/instances that were running at least v.3.0.0 before the attempted upgrade.

Enable automatic rollback: Cribl Stream will automatically roll back an upgrade if the Cribl Stream server fails to start, or if the Worker Node fails to connect to the Leader. (Toggle to No to defeat this behavior.)

Rollback timeout (ms): Time to wait, after an upgrade, before checking each Node’s health to determine whether to roll back. Defaults to 30000 milliseconds, i.e., 30 seconds.

Rollback condition retries: Number of times to retry the health check before performing a rollback. Defaults to 5 attempts.

Check interval (ms): Time to wait between health-check retries. Defaults to 1000 milliseconds, i.e., 1 second.

Backups directory: Specify where to store backups. Defaults to $CRIBL_HOME/state/backups.

Backup persistence: A relative time expression specifying how long to keep backups after each upgrade. Defaults to 24h.

Manual Rollback

​

Using CLI commands, it’s possible to explicitly roll back an on-prem Leader, and on-prem or hybrid Workers, to an earlier release. This works much like an upgrade.

Explicit rollback might be necessary if an automatic rollback fails. Otherwise, Cribl recommends first considering other options – an upgrade, or working with Cribl Support – before a manual rollback. Rollback can encounter these complications:

• Your current configuration might take advantage of dependencies not supported in an earlier release.
• Do not manually roll back any Cribl Stream instance running in a container. Instead, locate, download, and launch a container image hosting the earlier version you want.

Rollback Outline

​

We assume that you are rolling back to a previously deployed version that you know to be stable in your environment. The broad steps are:

1. Ideally, link your deployment to a Git remote repo. Commit and push your Leader’s configuration to that remote. The repo will provide a stable location from which to recover your config, if necessary.

2. Stop the Leader instance. (From $CRIBL_HOME/bin/, execute ./cribl stop.)

3. Also create a local backup of your Leader’s whole $CRIBL_HOME directory.

4. Obtain the installation package for the earlier release and platform you need. (See the Rollback Example.)

5. Uncompress the earlier version to your original deployed directory. You can do this from the command line or programmatically (see the Rollback Example).

If installing to your existing target directory fails, try the same mitigations we list above for upgrades.

6. In a distributed deployment, Workers must not run a higher version than the Leader. Repeat steps 2, 3, and 5 above on all Workers (substituting “Worker” for “Leader”).

Rollback Example

​

Although rollback can be partially scripted, you cannot discover older installation packages programmatically – the initial steps here require human intervention:

1. Stop and back up the Leader. (Follow steps 1–3 in the Rollback Outline.)

2. Open the Cribl Releases download page: https://cribl.io/download/.

3. In the Cribl Past Releases section, locate the older version that you want to restore.

4. Select your target platform from the adjacent drop-down menu.

5. Click the corresponding download button. The browser downloads the installation package for your target platform and saves it directly to your designated download location. The download URL for installation packages is similar to this example for v.4.1.0: https://cdn.cribl.io/dl/4.1.0/cribl-4.1.0-6979aea9-linux-arm64.tgz

6. Navigate to your designated download location to locate the downloaded installation package.

   • For .tgz files, double-click the installation package to extract the contents or run a command like tar -zxvf <fileName>.tgz

   • For .msi files, double-click the installation package to launch the installer

7. Repeat the preceding steps to adjust all Worker Nodes to a compatible version.

Splunk App Package Upgrade Steps

​

See Deprecation note for v.2.1.

Follow these steps to upgrade from v.1.7, or higher, of the Cribl App for Splunk:

1. Stop Splunk.

2. Untar/unzip the new app version on top of the old one.

   On some Linux systems, tar might complain with: cribl/bin/cribl: Cannot open: File exists. In this case, please remove the cribl/bin/cribl directory if it’s empty, and untar again. If you have custom functions in cribl/bin/cribl, please move them under $CRIBL_HOME/local/cribl/functions/ before untarring again.

3. Restart Splunk.

Upgrading from Splunk App v.1.6 (or Lower)

​

As of v.1.7, contrary to prior versions, Cribl’s Splunk App package defaults to Search Head Mode. If you have v.1.6 or earlier deployed as a Heavy Forwarder app, upgrading requires an extra step to restore this setting:

1. Stop Splunk.

2. Untar/unzip the new app version on top of the old one.

3. Convert to HF mode by running: $SPLUNK_HOME/etc/apps/cribl/bin/cribld mode-hwf

4. Restart Splunk.
