Configuring Cribl Stream to Receive Data from Azure Blob Storage

​

From the top nav, click Manage, then select a Worker Group to configure. Next, you have two options:

To configure via the graphical QuickConnect UI, click Routing > QuickConnect (Stream) or Collect (Edge). Next, click Add Source at left. From the resulting drawer’s tiles, select [Pull > ] Azure > Blob Storage. Next, click either Add Destination or (if displayed) Select Existing. The resulting drawer will provide the options below.

Or, to configure via the Routing UI, click Data > Sources (Stream) or More > Sources (Edge). From the resulting page’s tiles or left nav, select [Pull > ] Azure > Blob Storage. Next, click New Source to open a New Source modal that provides the options below.

General Settings

​

Input ID: Enter a unique name to identify this Azure Blob Storage Source definition. If you clone this Source, Cribl Stream will add -CLONE to the original Input ID.s

Queue: The queue name from which to read Blob notifications. Value must be a JavaScript expression (which can evaluate to a constant value), enclosed in quotes or backticks. Can be evaluated only at init time. E.g., referencing a Global Variable: myQueue-${C.vars.myVar}.

Authentication Settings

​

Use the Authentication method drop-down to select one of these options:

• Manual: Use this default option to enter your Azure Storage connection string directly. Exposes a Connection string field for this purpose. (If left blank, Cribl Stream will fall back to env.AZURE_STORAGE_CONNECTION_STRING.)

• Secret: This option exposes a Connection string (text secret) drop-down, in which you can select a stored secret that references an Azure Storage connection string. The secret can reside in Cribl Stream’s internal secrets manager or (if enabled) in an external KMS. A Create link is available if you need a new secret.

Connection String Format

​

Either authentication method uses an Azure Storage connection string in this format:

DefaultEndpointsProtocol=[http|https];AccountName=<your‑account‑name>;AccountKey=<your‑account‑key>;EndpointSuffix=<your-endpoint-suffix>

A fictitious example, using Microsoft’s recommended HTTPS option, is:

DefaultEndpointsProtocol=https;AccountName=storagesample;AccountKey=12345678...32;EndpointSuffix=core.windows.net

Optional Settings

​

Filename filter: Regex matching file names to download and process. Defaults to .*, to match all characters.

Tags: Optionally, add tags that you can use to filter and group Sources in Cribl Stream’s Manage Sources page. These tags aren’t added to processed events. Use a tab or hard return between (arbitrary) tag names.

Processing Settings

​

Custom Command

​

In this section, you can pass the data from this input to an external command for processing, before the data continues downstream.

Enabled: Defaults to No. Toggle to Yes to enable the custom command.

Command: Enter the command that will consume the data (via stdin) and will process its output (via stdout).

Arguments: Click Add Argument to add each argument to the command. You can drag arguments vertically to resequence them.

Event Breakers

​

This section defines event breaking rulesets that will be applied, in order.

Event Breaker rulesets: A list of event breaking rulesets that will be applied to the input data stream before the data is sent through the Routes. Defaults to System Default Rule.

Event Breaker buffer timeout: How long (in milliseconds) the Event Breaker will wait for new data to be sent to a specific channel, before flushing out the data stream, as-is, to the Pipelines. Minimum 10 ms, default 10000 (10 sec), maxiumum 43200000 (12 hours).

Fields

​

In this section, you can add Fields to each event, using Eval-like functionality.

Name: Field name.

Value: JavaScript expression to compute field’s value, enclosed in quotes or backticks. (Can evaluate to a constant.)

Pre-Processing

​

In this section’s Pipeline drop-down list, you can select a single existing Pipeline to process data from this input before the data is sent through the Routes.

Advanced Settings

​

Max messages: The maximum number of messages to return in a poll request. Azure queues never return more messages than this value (although they might return fewer messages). Acceptable values: 1 to 32.

Visibility timeout (secs): The duration (in seconds) that the received messages are hidden from subsequent retrieve requests, after being retrieved by a ReceiveMessage request. Defaults to 600 seconds. Maximum allowed value is 604800 seconds (7 days).

Cribl Stream will automatically extend this timeout until the initial request’s files have been processed – notably, in the case of large files that require additional processing time.

Num receivers: The number of receiver processes to run. The higher the number, the better the throughput, at the expense of CPU overhead. Defaults to 1.

Service period (secs): The interval (in seconds) at which pollers should be validated, and restarted if exited. Defaults to 5 seconds.

Skip file on error: Toggle to Yes to skip files that trigger a processing error (e.g., corrupted files). Defaults to No, which enables retries after a processing error.

Max Parquet chunk size (MB): Maximum size for each Parquet chunk. Defaults to 5 MB. Valid range is 1 to 100 MB. Cribl Stream stores chunks in the location specified by the CRIBL_TMP_DIR environment variable. It removes the chunks immediately after reading them. See Environment Variables.

Parquet chunk download timeout (seconds): The maximum time to wait for a Parquet file’s chunk to be downloaded. If a required chunk cannot not be downloaded within this time limit, processing will end. Defaults to 600 seconds. Valid range is 1 second to 3600 seconds (1 hour).

Environment: If you’re using GitOps, optionally use this field to specify a single Git branch on which to enable this configuration. If empty, the config will be enabled everywhere.

Connected Destinations

​

Select Send to Routes to enable conditional routing, filtering, and cloning of this Source’s data via the Routing table.

Select QuickConnect to send this Source’s data to one or more Destinations via independent, direct connections.

Internal Fields

​

Cribl Stream uses a set of internal fields to assist in handling of data. These “meta” fields are not part of an event, but they are accessible, and Functions can use them to make processing decisions.

Fields for this Source:

• __accountName
• __final
• __inputId
• __source
• __topic
• _time

The remainder of this topic covers required Azure-side configuration.

Configuring Azure Blob Notifications

​

This Source needs to receive Azure Event Grid notifications, via a queue, when new blobs are added to a storage account. This queue approach enables Cribl Stream to manage backpressure conditions and retries upon errors.

You will therefore need to enable notifications in the Azure portal. The basic flow is:

File upload → Blob container → Blob Created notification → Azure Queue Storage queue

To configure notifications from the Blob storage account in the Azure backend, there are three major steps, outlined below:

1. Create an Event Grid system topic.

2. Create a queue.

3. Configure the generation of storage account notifications when new blobs are uploaded to the queue.

Azure’s UI will change over time. Please fall back to Microsoft’s Azure Event Grid documentation for up-to-date instructions and screenshots.

1. Create System Topic

​

First, you must create a system topic, to which Azure will publish notifications. In the Azure portal, start at Event Grid System Topics:

Select +Create to create a new system topic, then set the Topic Type to Storage Account (Blob):

In Subscription > Resource Group > Resource, reference the storage account where you want to generate notifications.

Give the topic an arbitrary name that is meaningful to you. (In this example, the name is the same as the storage account.)

2. Create Storage Queue

​

Next, navigate to your storage account to create a queue.

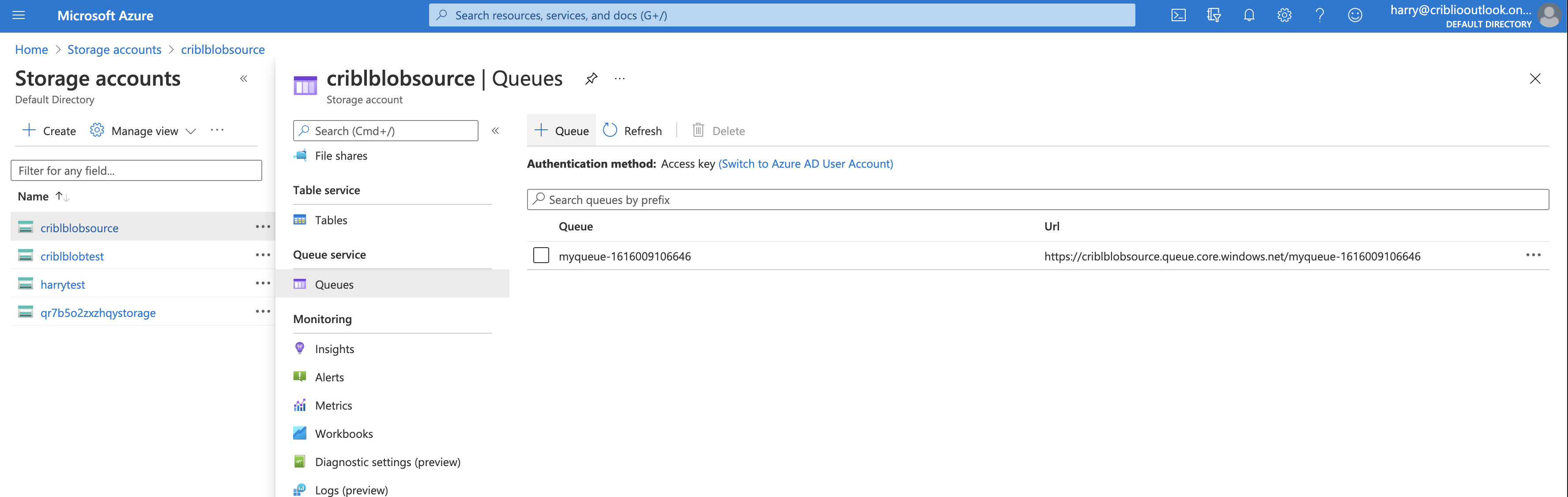

Select the storage account for which you would like to set up notifications. Then, in the submenu, select Queue service > Queues:

Select Create queue, and give the queue a name that is meaningful to you.

3. Configure Storage Account Notifications

​

Next, set up the storage account that will publish Blob Create notifications to the queue, using the system topic. From the Storage Accounts menu, select Events:

Then click + Event Subscription to proceed:

There are a few things to configure here:

• Enter a Name for the subscription.
• In System Topic Name, enter the name of the system topic you created in 1. Create System Topic above.
• In Event Types, select Blob Created, and deselect Blob Deleted.
• As the Endpoint Type, select Storage Queues.
• Click Select an endpoint, and click the subscription to use (Pay‑As-You-Go).

Next, select the storage account on which to add the subscription:

Select the queue you created in Create Storage Queue above, and click Confirm Selection to save the settings.

To complete the process, click Create.

How Cribl Stream Pulls Data

​

Workers poll messages from Azure Blob Storage using the Azure Event Grid Queue. The call will return a message if one is available, or will time out after 5 seconds if no messages are available.

Each Worker gets its share of the load from Azure Event Grid, and receives a notification of a new file added to an Azure Blob Storage bucket.

By default, the maximum number of messages Azure Event Grid returns in a single poll request is 1 per Worker Process.

Proxying Requests

​

If you need to proxy HTTP/S requests, see System Proxy Configuration.
