SSO with Microsoft Entra ID and SAML (Cribl.Cloud)

This page presents a walkthrough of setting up a SAML SSO, using Microsoft Entra ID as the example.

Limitations

​

Cribl offers an SP-initiated (Cribl-initiated) flow, but does not support an IDP-initiated SSO flow. As an alternative, you can allow users to initiate login from your IDP instance by creating a chiclet.

Set Up Fallback Access

​

Before you configure SSO, create a fallback user so that you aren’t locked out of your Organization if you have issues with SSO. In your Cribl.Cloud Organization, invite a new Member using an email domain that’s different from the corporate domain on which you’re configuring SSO. Assign the Owner Permission for the Member. You can use this account to log in with a username and password and fix SSO issues if needed.

After you confirm that your SSO integration is working, you can remove the fallback user. If you do so, do not disable the SSO integration without first re-creating a fallback user. Otherwise, you might get locked out of your Organization.

Create an Enterprise Application

​

From Microsoft Entra ID’s left nav:

1. Select Enterprise applications and choose All applications, then New application.
2. Name your new app Cribl.Cloud (or any name you prefer).
3. Select Integrate any other application you don’t find in the gallery (Non‑gallery).
4. Confirm with Create.

Assign Groups

​

Now, map your group from Cribl.Cloud to your SSO groups. From Microsoft Entra ID’s left nav:

1. Select Users and groups, then select Add user/group.
2. Add the Cribl groups you created in Configure Groups. Do not configure Entra ID roles: access control will be handled by Cribl groups.

If Microsoft Entra ID is synchronized with your external Active Directory, you must set the groups claim: select Groups assigned to the application for association and set Source attribute to sAMAccountName.

Enable Emit group name for cloud-only groups to return the group names if it’s defaulting to GUID or Object ID.

3. Click Assign after selecting Groups.

Configure Single Sign-On

​

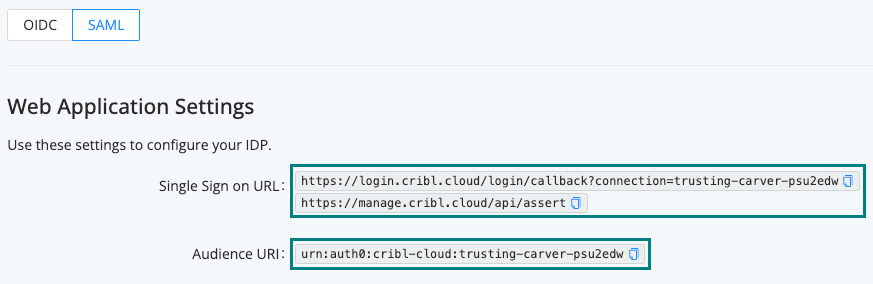

Before you start configuring SAML settings on Entra ID side, gather the required information from your Cribl.Cloud Organization.

1. In the sidebar, under Organization, select SSO Management.

2. Scroll down to the Web Application Settings section and select SAML.

3. Note down the values for Single Sign on URL and Audience URI.

   Single Sign on URL lists two URLs that you use for SAML configuration.

   • https://login.cribl.cloud/login/callback?connection=<organizationId> is the URL you will use for the connection.
   • https://manage.cribl.cloud/api/assert is used during setup to test the connection. After you have successfully tested the connection, save the configuration and replace the second URL with the first one.

4. Now, go to your Entra ID application.

5. From the left nav, select Single sign‑on, then SAML, to open the Basic SAML Configuration page.

6. Then, fill in the form with the information from your Cribl.Cloud Organization. Configure the following options:

   • Identifier (Entity ID): Select Add identifier and enter the Audience URI value from your Cribl.Cloud SAML settings.

   • Reply URL (Assertion Consumer Service URL): Select Add reply URL and enter the two Single Sign‑on URL values from Cribl.Cloud’s SAML setup page.

     Of these two URLs, identify the one with the connection query parameter, and select the check box to make it the Default.

Configure Attributes and Groups Claims

​

In Microsoft Entra ID, edit User Attribute & Claims as follows. Start with the claim names:

1. Change surname to family_name.
2. Change emailaddress to email.
3. Change givenname to given_name.

Next, add a group claim:

1. Select Groups assigned to the application.
2. Set the Source attribute to Cloud‑only group display names (Preview).
3. Accept the defaults for everything else, and save the new settings.

Submit Your App Info to Cribl

​

After you’ve created the SAML app integration in your IDP, provide Cribl with essential metadata about your application to implement SSO setup on the Cribl side.

1. In Cribl Stream, on the top bar, select Products, and then select Cribl.

2. In the sidebar, select Organization, then SSO Management.

3. Above Web Application Settings, select SAML.

4. Fill in the following fields with information from Entra ID:

   Cribl.Cloud field	Entra ID
   IDP Login/Logout URL	Login URL
   IDP issuer	Microsoft Entra ID Identifier
   X.509 certificate (base64-encoded)	Certificate (Base64) under SAML Certificates

5. Select Test Connection to test the connection.

6. When you’ve verified the connection, select Save to complete your submission.

SAML/Entra ID Setup with My Apps Chiclet (Optional)

​

If you want to log into Cribl.Cloud via the Microsoft My Apps chiclet, complete the following procedure:

1. In Microsoft Entra ID, navigate to the enterprise application that you created to integrate SSO.

2. From the left nav, select Single Sign-on.

3. On the Enterprise Application’s Basic SAML Configurations page, select Edit.

4. In the Sign on URL (Optional) section, enter the following URL:

   https://manage.cribl.cloud/login?connection=<organizationId> (where <organizationId> is your Cribl.Cloud Organization’s ID).

You also need to allow self-service access to the Cribl App, or assign AD groups permissions to access the application.

Link Existing Users

​

If your Cribl.Cloud Organization has existing users who have been using a username and password to log in, upon first login with SSO, these users will see a prompt to link their identities. They should accept this prompt to ensure that their existing profile is linked with their SSO profile.

Troubleshooting

​

If you encounter issues when setting up SSO integration, refer to SSO Troubleshooting.
